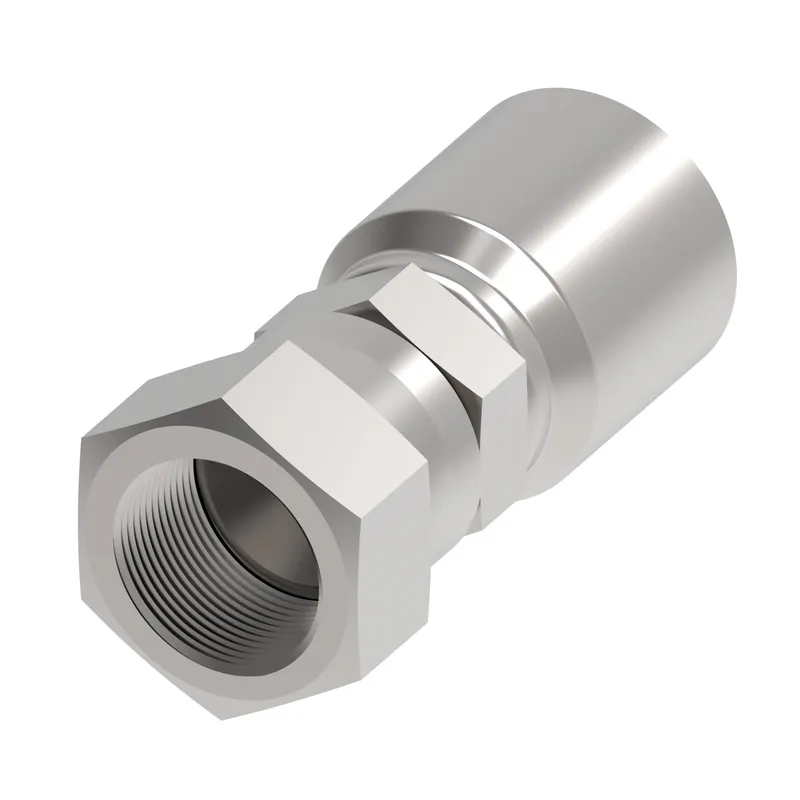

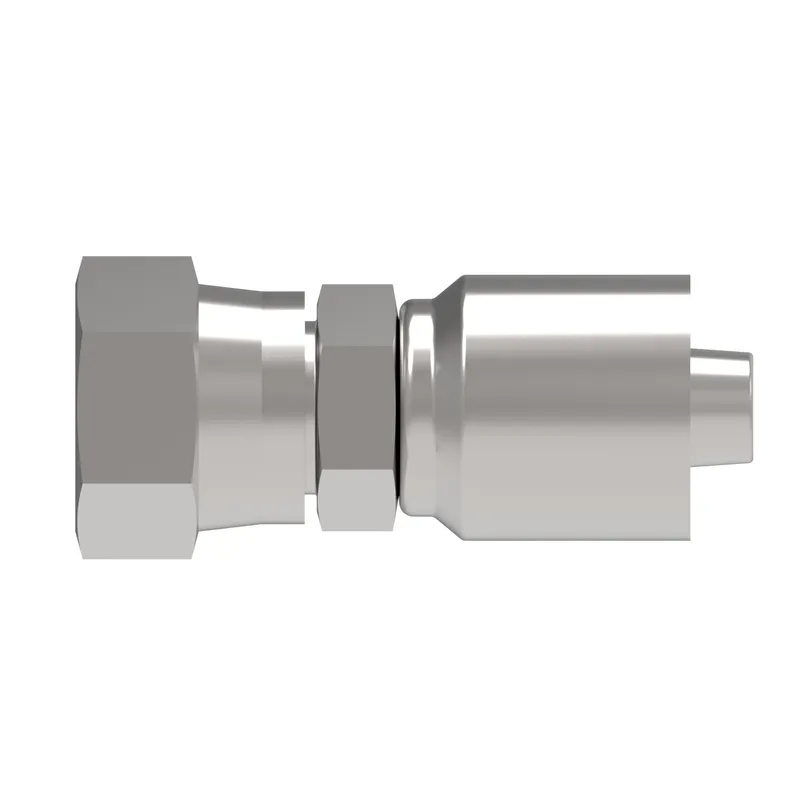

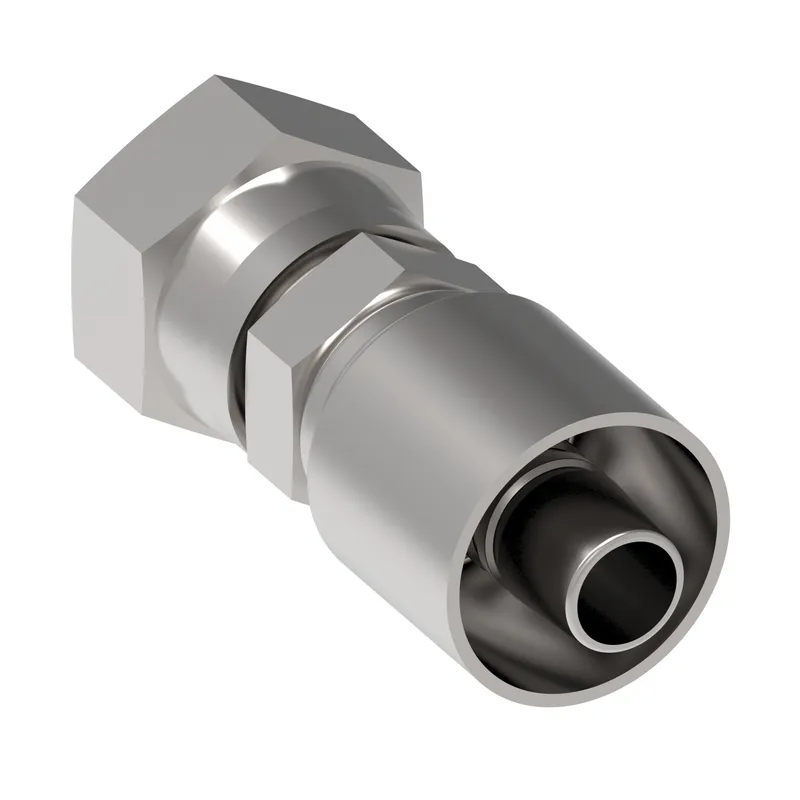

Danfoss 1G10FJ8

HOSE FTG, 1G/08, JIC-F/10, CS, STR

MPN: 1G10FJ8
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G10FJ8?

Danfoss HOSE FTG, 1G/08, JIC-F/10, CS, STR, manufacturer part number 1G10FJ8. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.410
A dimension MM	61.100
Angle shape	Straight
Application	General industrial use, Hydraulic systems, Petroleum based fluids, Water based fluids
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Compatible hoses	GH585, GH586
Construction Style	Crimp
End connection torque	57-62 lb-ft(77-85 Nm)
End size 1	-10
End Type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	1.062
Hex size 1 MM	26.975
Hex size 2 IN	0.866
Hex size 2 MM	22.000
Hose cut off factor IN	1.470
Hose cut off factor MM	37.400
Hose size	-8
Inside diameter IN	0.380
Inside diameter MM	9.600
Product height in	1.230
Product height mm	31.242
Product length in	2.740
Product length mm	69.596
Product material	Carbon steel
Product width in	1.062
Product width mm	26.975
Series	OTC
Thread sealant	No
Thread size 1	7/8-14 UNF
Working pressure max BAR	350.00
Working pressure max PSI	5100.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
