Braided hose and fittings Parts

Danfoss

22690K-06-06Z

HOSE NIPPLE ASSY, 2P/06, BF/06, CS, 90D

Danfoss

22690K-04-04Z

HOSE NIPPLE ASSY, 2P/04, BF/04, CS, 90D

Danfoss

22690-12-12Z

HOSE NIPPLE ASSY, 2P/12, BF/12, CS, 90D

Danfoss

22690-08-08Z

HOSE NIPPLE ASSY, 2P/08, BF/08, CS, 90D

Danfoss

22690-06-06Z

HOSE NIPPLE ASSY, 2P/06, BF/06, CS, 90D

Danfoss

22641Y-16-16Z

HOSE NIPPLE ASSY, 1P/16, BF/16, CS, 45D

Danfoss

22641Y-12-12Z

HOSE NIPPLE ASSY, 1P/12, BF/12, CS, 45D

Danfoss

22641Y-10-10Z

HOSE NIPPLE ASSY, 1P/10, BF/10, CS, 45D

Danfoss

22641Y-08-08Z

HOSE NIPPLE ASSY, 1P/08, BF/08, CS, 45D

Danfoss

22641Y-06-06Z

HOSE NIPPLE ASSY, 1P/06, BF/06, CS, 45D

Danfoss

22641-32-32WZ

HOSE NIPPLE ASSY,2P/32,JIS-F/32,CS,45D

Danfoss

22641-24-24WZ

HOSE NIPPLE ASSY, 2P/24, BF/24, CS, 45D

Danfoss

22641-24-24ORWZ

HOSE NIPPLE ASSY, 2P/24, BF/24, CS, 45D

Danfoss

22641-20-20WZ

HOSE NIPPLE ASSY, 2P/20, BF/20, CS, 45D

Danfoss

22641-16-16Z

HOSE NIPPLE ASSY, 2P/16, BF/16, CS, 45D

Danfoss

22641-16-16ORZ

HOSE NIPPLE ASSY, 2P/16, BF/16, CS, 45D

Danfoss

22641-16-12TZ

HOSE NIPPLE ASSY, 2P/12, BF/16, CS, 45D

Danfoss

22641-12-12Z

HOSE NIPPLE ASSY,2P/12,JIS-F/12,CS,45D

Danfoss

22641-12-12ORZ

FITTING-NIPPLE

Danfoss

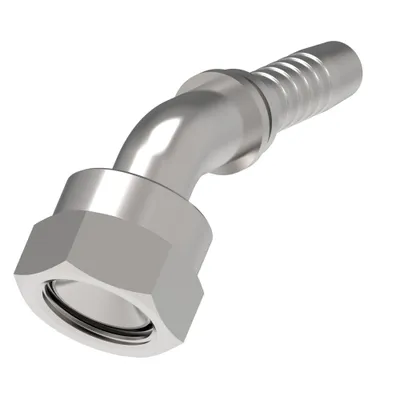

22641-10-10ZF

HOSE NIPPLE ASSY, 1P/10, BF/10, CS, 45D

Danfoss

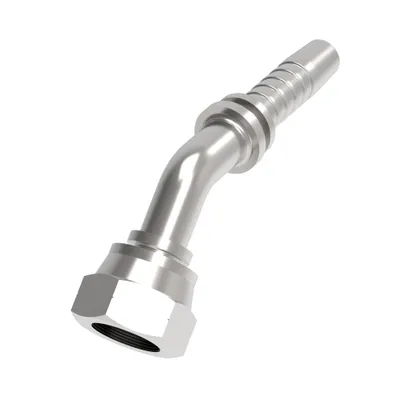

22641-10-10Z

HOSE NIPPLE ASSY, 1P/10, BF/10, CS, 45D

Danfoss

22641-10-08Z

HOSE NIPPLE ASSY, 1P/08, BF/10, CS, 45D

Danfoss

22641-08-08Z

HOSE NIPPLE ASSY, 1P/08, BF/08, CS, 45D

Danfoss

22641-08-08ORZ

HOSE NIPPLE ASSY, 1P/08, BF/08, CS, 45D

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Hose cut off factor MM	Product height in	Product height mm	Product length in	Product length mm
22690K-06-06Z	14.000	1.430	36.322	1.850	46.990
22690K-04-04Z	11.700	1.160	29.464	1.610	40.894
22690-12-12Z	60.900	3.520	89.408	4.550	115.570
22690-08-08Z	37.700	2.670	67.818	3.130	79.502
22690-06-06Z	32.500	2.520	64.008	2.650	67.310
22641Y-16-16Z	88.392	3.580	90.932	6.600	167.640
22641Y-12-12Z	78.600	3.090	78.486	5.670	144.018
22641Y-10-10Z	72.136	2.759	70.079	5.141	130.581
22641Y-08-08Z	61.100	2.460	62.484	4.470	113.538
22641Y-06-06Z	46.900	1.850	46.990	3.710	94.234
22641-32-32WZ	135.700	5.230	132.842	10.180	258.572
22641-24-24WZ	116.200	4.250	107.950	8.830	224.282
22641-24-24ORWZ	120.700	3.940	100.076	8.500	215.900
22641-20-20WZ	98.800	3.630	92.202	7.400	187.960
22641-16-16Z	88.400	3.240	82.296	6.600	167.640
22641-16-16ORZ	88.400	3.380	85.852	6.290	159.766
22641-16-12TZ	38.500	3.080	78.232	5.500	139.700
22641-12-12Z	78.600	2.800	71.120	5.670	144.018
22641-12-12ORZ	—	2.790	70.866	5.650	143.510
22641-10-10ZF	72.100	1.523	38.684	4.771	121.183
22641-10-10Z	72.100	2.200	55.880	4.770	121.158
22641-10-08Z	61.400	2.510	63.754	4.710	119.634
22641-08-08Z	61.100	2.230	56.642	4.470	113.538
22641-08-08ORZ	46.300	2.070	52.578	3.690	93.726

Common to all listed parts

Construction Style	Crimp
Product material	Carbon steel
