Danfoss 22690K-04-04Z

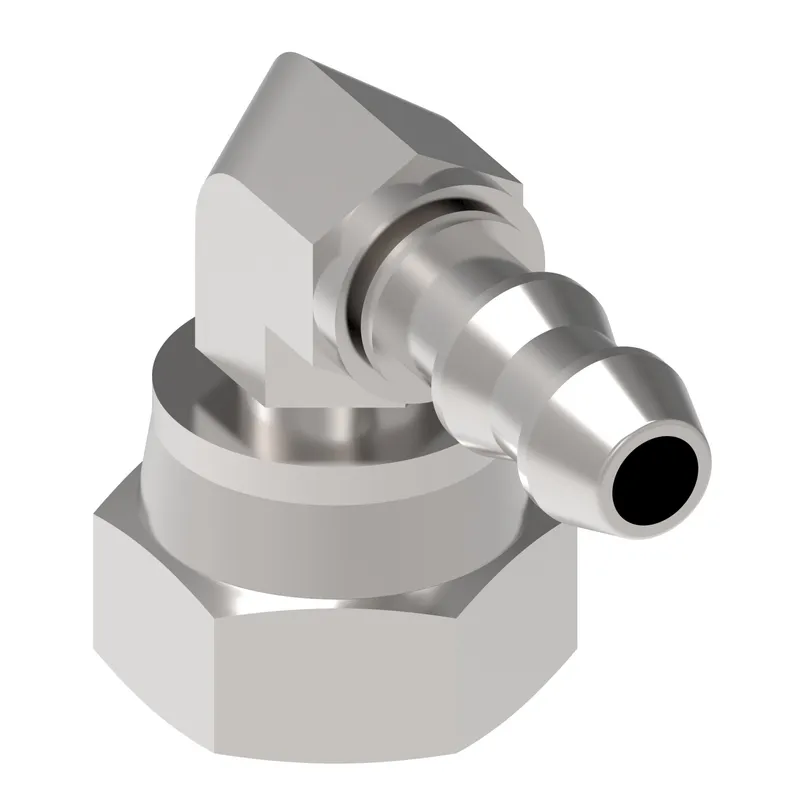

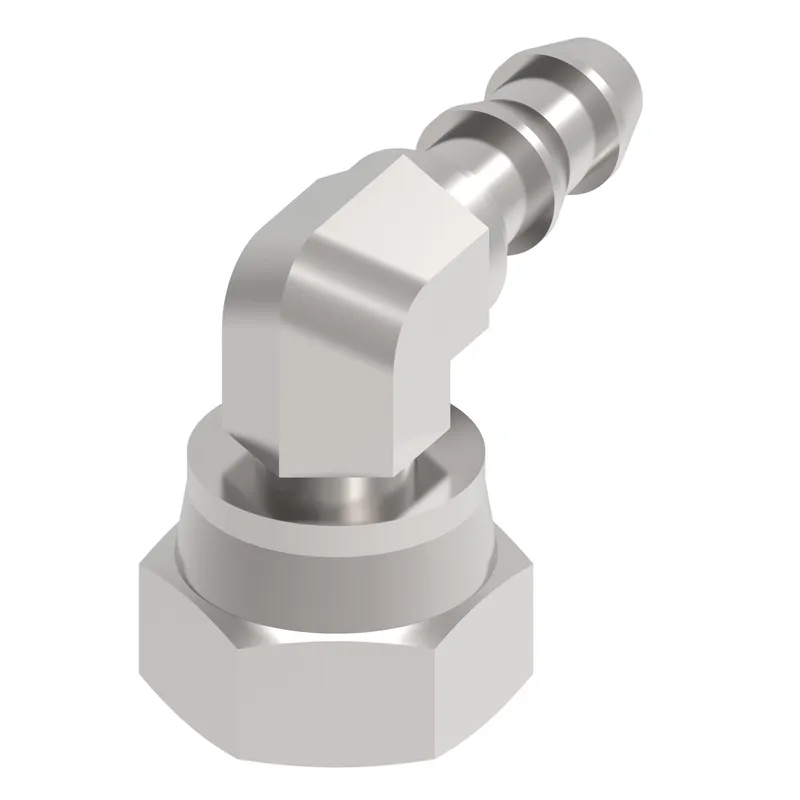

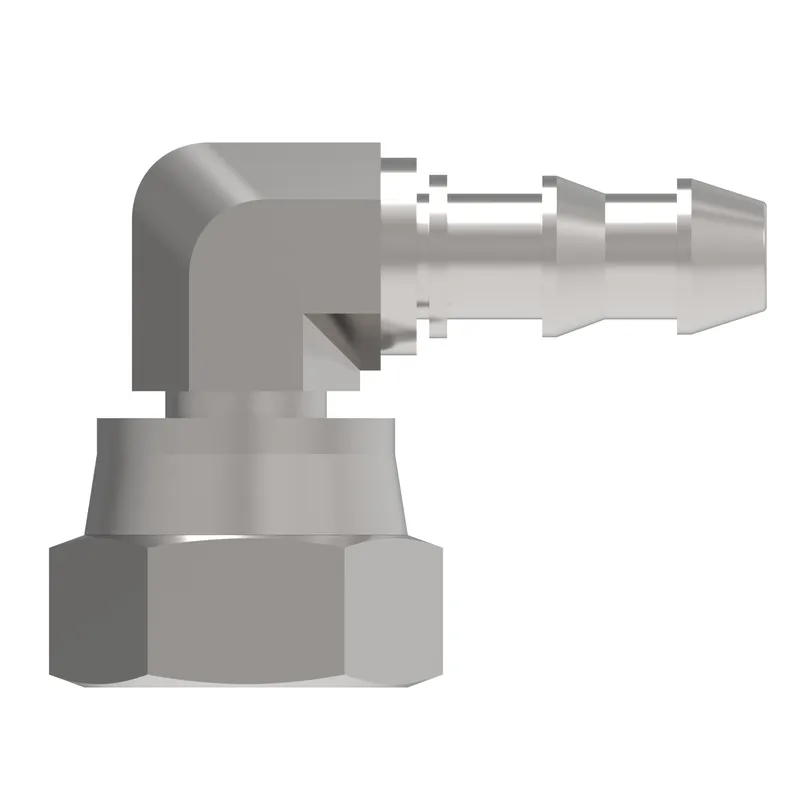

HOSE NIPPLE ASSY, 2P/04, BF/04, CS, 90D

MPN: 22690K-04-04Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 22690K-04-04Z?

Danfoss HOSE NIPPLE ASSY, 2P/04, BF/04, CS, 90D, manufacturer part number 22690K-04-04Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.287
A dimension MM	32.700
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.400
Construction Style	Crimp
Drop dimension IN	0.728
Drop dimension MM	18.50
End size 1	-4
End Type 1	Female BSPP swivel
Finish plating	Zinc plating
Hex size 1 IN	0.430
Hex size 1 MM	10.922
Hex size 2 IN	0.750
Hex size 2 MM	19.050
Hose cut off factor IN	0.460
Hose cut off factor MM	11.700
Hose size	-4
Inside diameter IN	0.177
Inside diameter MM	4.500
Product height in	1.160
Product height mm	29.464
Product length in	1.610
Product length mm	40.894
Product material	Carbon steel
Product width in	0.750
Product width mm	19.05
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	G 1/4
Working pressure max BAR	450
Working pressure max PSI	6550
Working temperature max C	100
Working temperature min C	-40
Working temperature min F	-40

22690K-04-04Z: frequently asked questions

When can 22690K-04-04Z be shipped?

22690K-04-04Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 22690K-04-04Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 22690K-04-04Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 22690K-04-04Z, subject to availability and destination.
