Danfoss 22641-24-24ORWZ

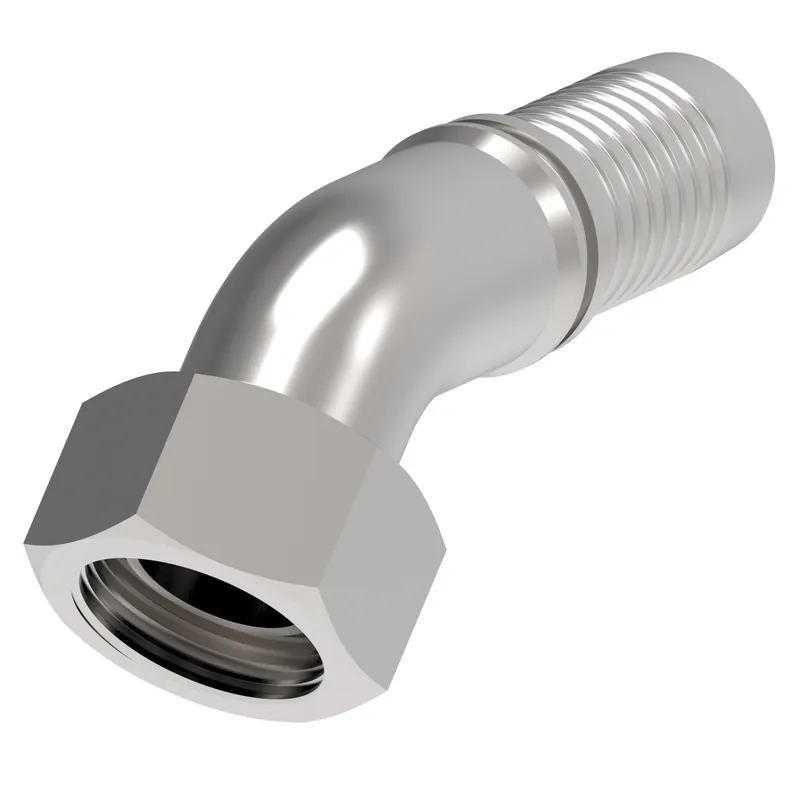

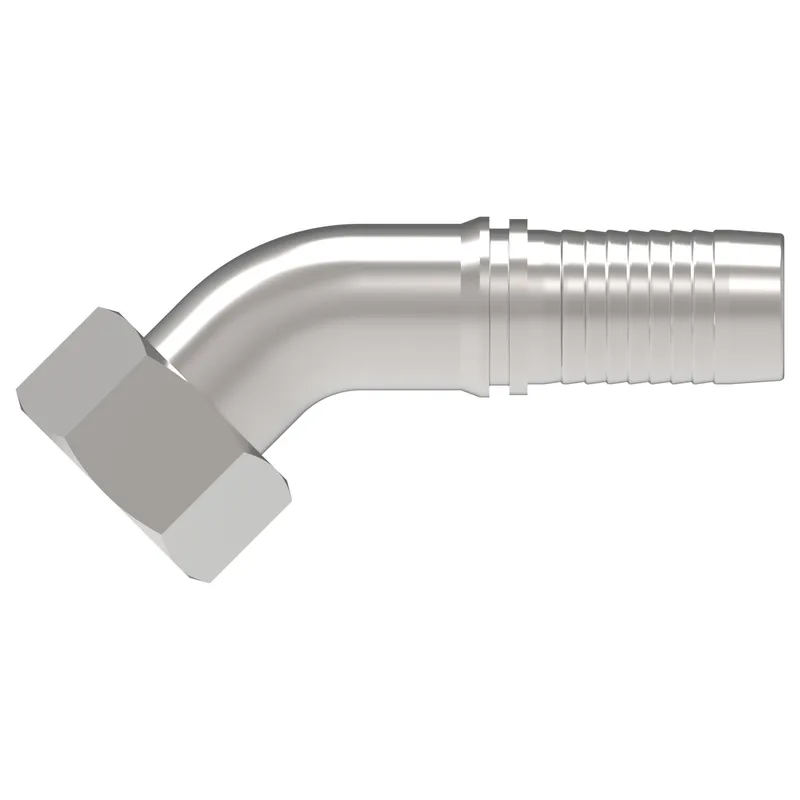

HOSE NIPPLE ASSY, 2P/24, BF/24, CS, 45D

MPN: 22641-24-24ORWZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 22641-24-24ORWZ?

Danfoss HOSE NIPPLE ASSY, 2P/24, BF/24, CS, 45D, manufacturer part number 22641-24-24ORWZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	7.429
A dimension MM	188.700
Angle shape	45 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	1.500
Compatible hose ID MM	38.100
Construction Style	Crimp
Drop dimension IN	1.968
Drop dimension MM	50.00
End connection torque	55-70 lb-ft(75-95 Nm)
End size 1	-24
End Type 1	Female BSPP swivel
Finish plating	Zinc plating
Hex size 1 IN	2.160
Hex size 1 MM	54.864
Hose cut off factor IN	4.751
Hose cut off factor MM	120.700
Hose size	-24
Inside diameter IN	1.259
Inside diameter MM	32.000
Product height in	3.940
Product height mm	100.076
Product length in	8.500
Product length mm	215.900
Product material	Carbon steel
Product width in	2.160
Product width mm	54.864
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	G 1/2
Working pressure max BAR	138
Working pressure max PSI	2000
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
