Danfoss 22641Y-08-08Z

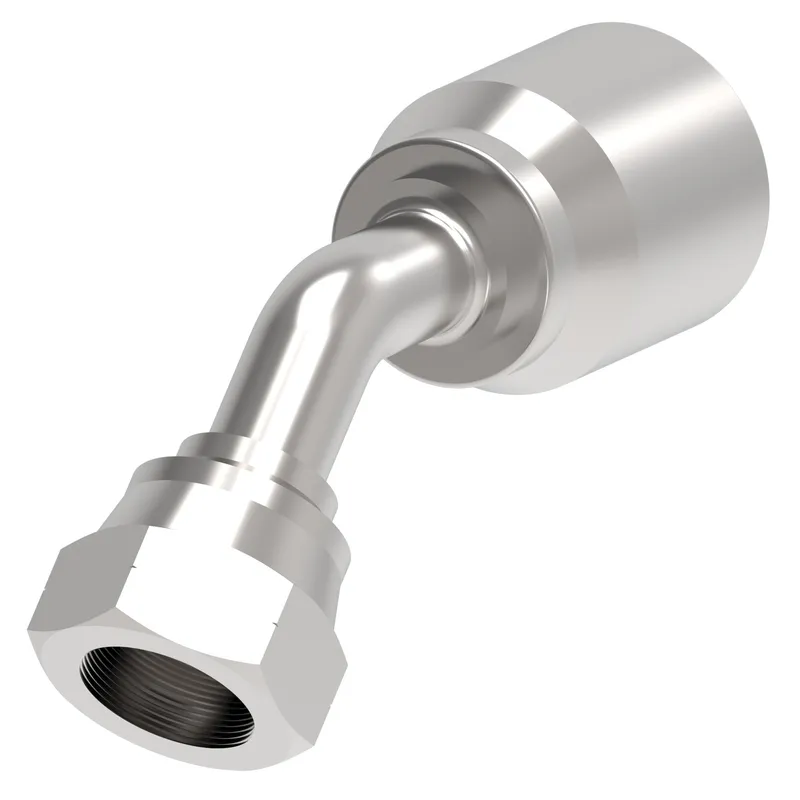

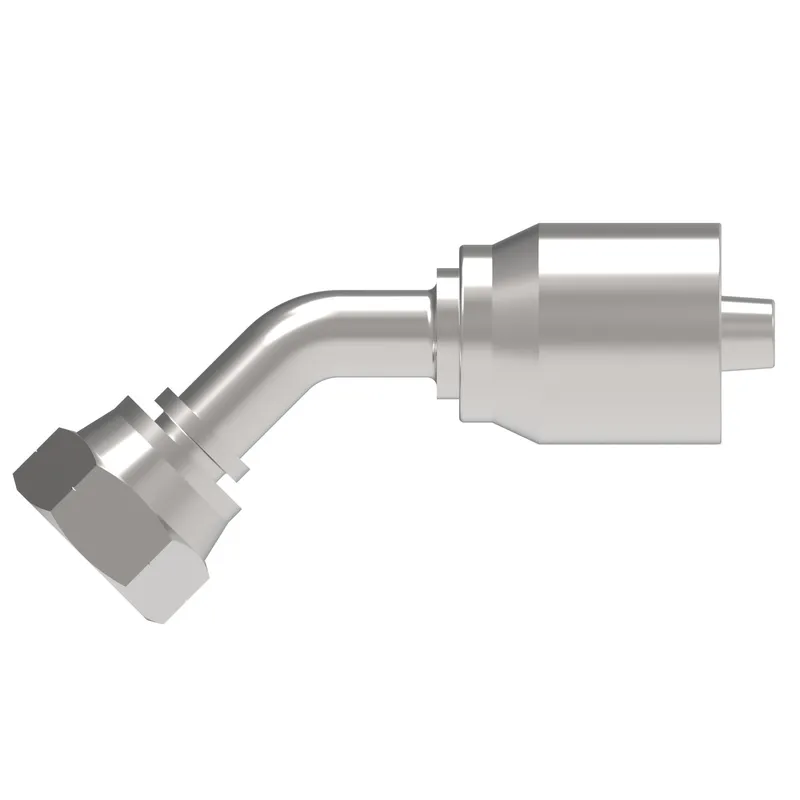

HOSE NIPPLE ASSY, 1P/08, BF/08, CS, 45D

MPN: 22641Y-08-08Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 22641Y-08-08Z?

Danfoss HOSE NIPPLE ASSY, 1P/08, BF/08, CS, 45D, manufacturer part number 22641Y-08-08Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.650
A dimension MM	92.600
Angle shape	45 Degree
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Compatible hoses	EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction Style	Crimp
Drop dimension IN	1.030
Drop dimension MM	26.10
End connection torque	55-70 lb-ft(75-95 Nm)
End size 1	-8
End Type 1	Female BSPP swivel
Finish plating	Zinc plating
Hex size 2 IN	1.063
Hex size 2 MM	27.000
Hose cut off factor IN	2.410
Hose cut off factor MM	61.100
Hose size	-8
Inside diameter IN	0.390
Inside diameter MM	10.000
Product height in	2.460
Product height mm	62.484
Product length in	4.470
Product length mm	113.538
Product material	Carbon steel
Product width in	1.212
Product width mm	30.785
Thread sealant	No
Thread size 1	G 1/2
Working pressure max BAR	360
Working pressure max PSI	5300
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
