Danfoss 22641Y-16-16Z

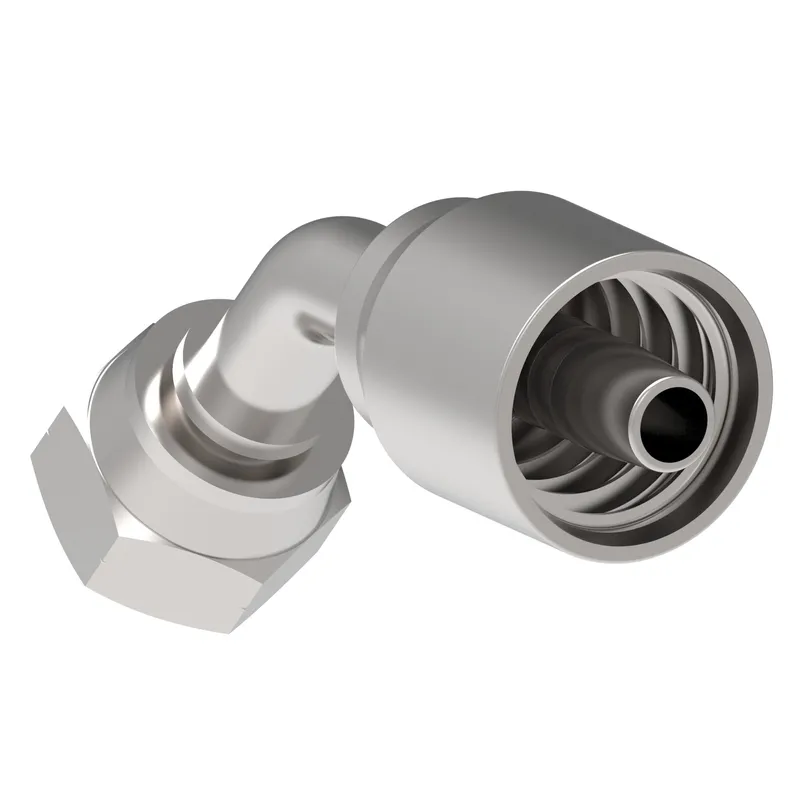

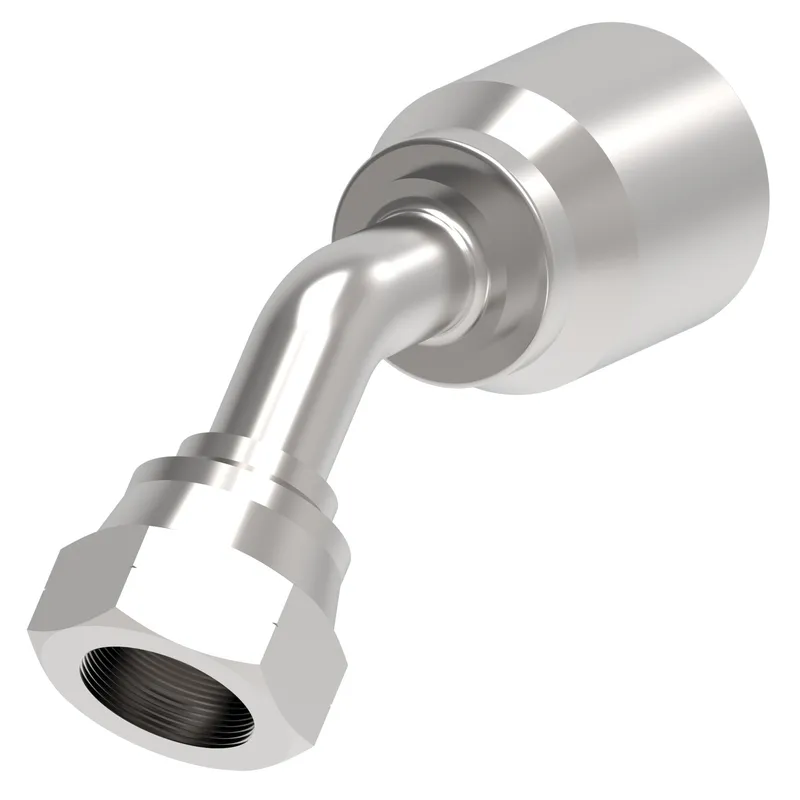

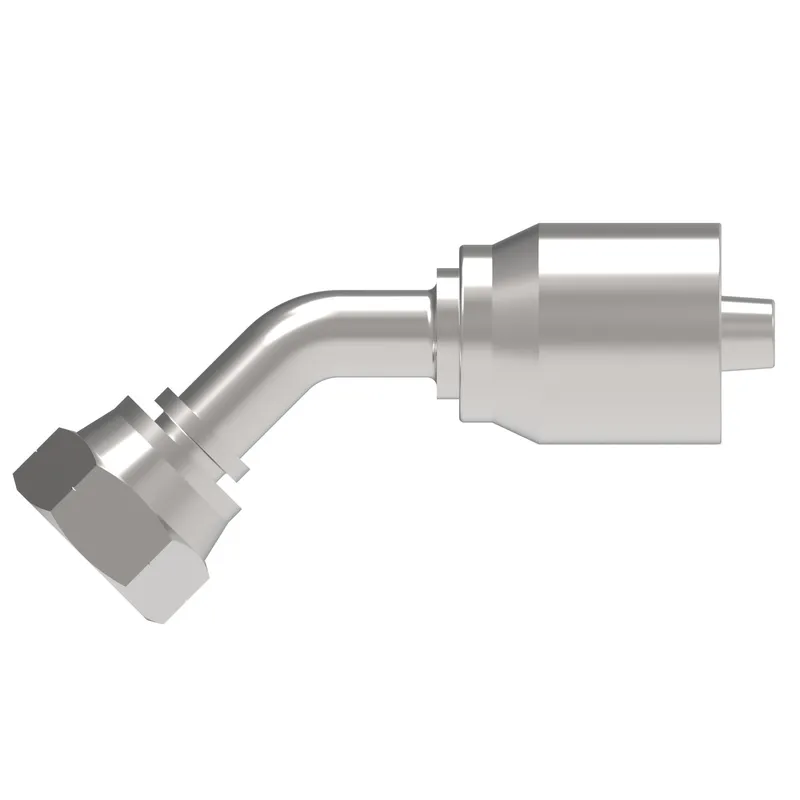

HOSE NIPPLE ASSY, 1P/16, BF/16, CS, 45D

MPN: 22641Y-16-16Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 22641Y-16-16Z?

Danfoss HOSE NIPPLE ASSY, 1P/16, BF/16, CS, 45D, manufacturer part number 22641Y-16-16Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	5.330
A dimension MM	135.400
Angle shape	45 Degree
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Construction Style	Crimp
Drop dimension IN	1.350
Drop dimension MM	34.20
End connection torque	162-184 lb-ft(220-250 Nm)
End size 1	-16
End Type 1	Female BSPP swivel
Finish plating	Zinc plating
Hose cut off factor IN	3.480
Hose cut off factor MM	88.392
Hose size	-16
Inside diameter IN	0.830
Inside diameter MM	21.000
Product height in	3.580
Product height mm	90.932
Product length in	6.600
Product length mm	167.640
Product material	Carbon steel
Product width in	1.929
Product width mm	48.997
Thread size 1	G 1
Working pressure max BAR	280
Working pressure max PSI	4050
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
