Danfoss 22690-06-06Z

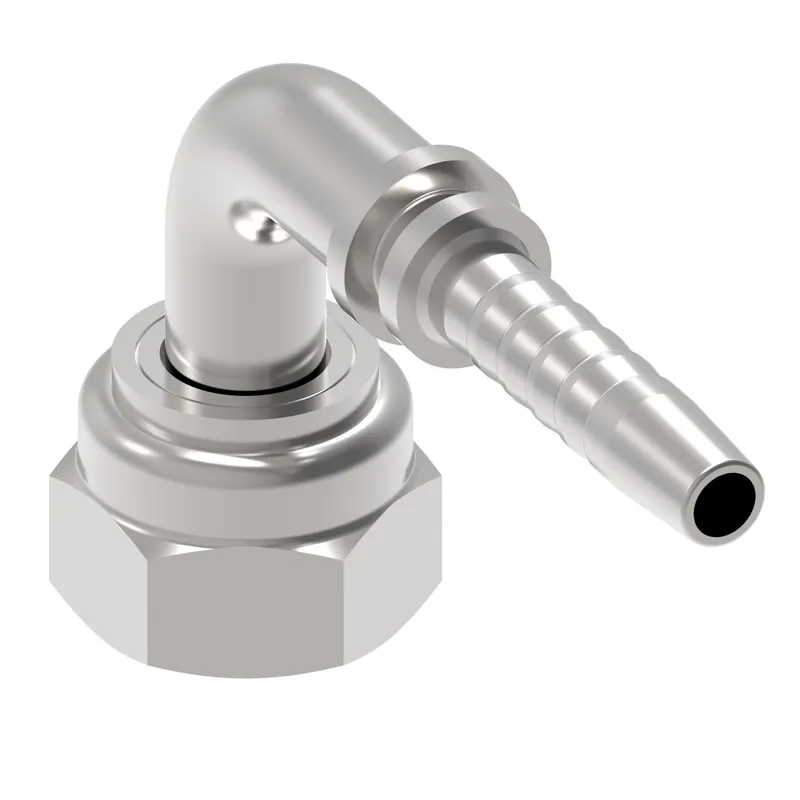

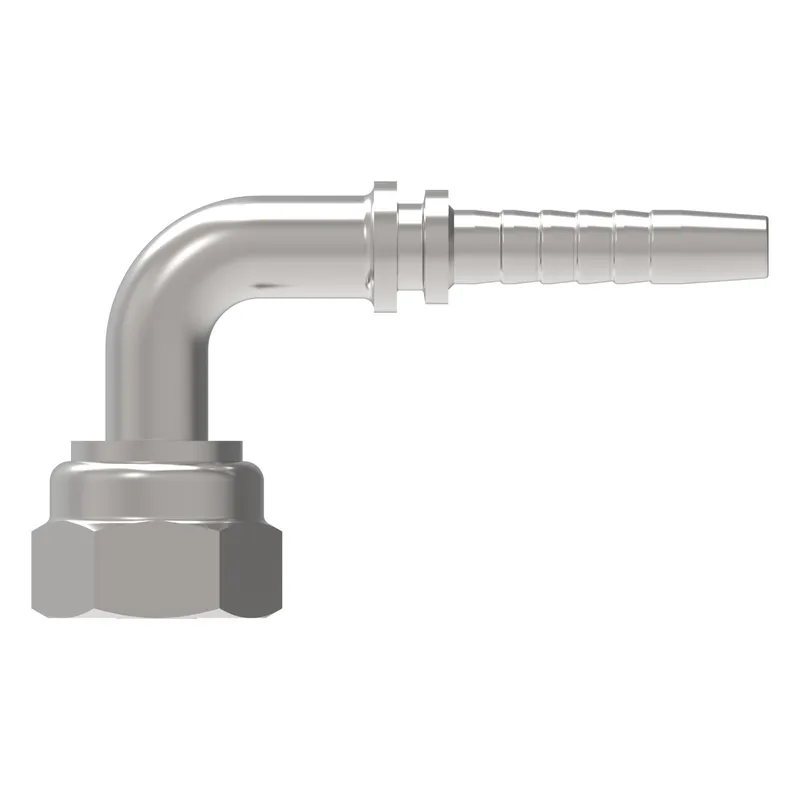

HOSE NIPPLE ASSY, 2P/06, BF/06, CS, 90D

MPN: 22690-06-06Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 22690-06-06Z?

Danfoss HOSE NIPPLE ASSY, 2P/06, BF/06, CS, 90D, manufacturer part number 22690-06-06Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.173
A dimension MM	55.200
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Construction Style	Crimp
Drop dimension IN	2.145
Drop dimension MM	54.50
End connection torque	33-40 lb-ft(45-55 Nm)
End size 1	-6
End Type 1	Female BSPP swivel
Finish plating	Zinc plating
Hex size 1 IN	0.000
Hex size 2 IN	0.866
Hex size 2 MM	21.996
Hose cut off factor IN	1.279
Hose cut off factor MM	32.500
Hose size	-6
Inside diameter IN	0.275
Inside diameter MM	7.000
Product height in	2.520
Product height mm	64.008
Product length in	2.650
Product length mm	67.310
Product material	Carbon steel
Product width in	0.870
Product width mm	22.098
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	G 3/8
Working pressure max BAR	400
Working pressure max PSI	5800
