Braided hose and fittings Parts

Danfoss

22611D-12-12Z

HOSE NIPPLE ASSY, 2P/12, BF/12, CS, STR

Danfoss

22611D-04-04Z

HOSE NIPPLE ASSY, 2P/04, BF/04, CS, STR

Danfoss

22611-32-32ORWZ

HOSE NIPPLE ASSY, 2P/32, BF/32, CS, STR

Danfoss

22611-32-24TZ

HOSE NIPPLE ASSY, 2P/24, BF/32, CS, STR

Danfoss

22611-24-24WZ

HOSE NIPPLE ASSY, 2P/24, BF/24, CS, STR

Danfoss

22611-24-24ORWZ

HOSE NIPPLE ASSY, 2P/24, BF/24, CS, STR

Danfoss

22611-24-20TZ

HOSE NIPPLE ASSY, 2P/20, BF/24, CS, STR

Danfoss

22611-20-20WZ

HOSE NIPPLE ASSY, 2P/20, BF/20, CS, STR

Danfoss

22611-20-20ORWZ

HOSE NIPPLE ASSY, 2P/20, BF/20, CS, STR

Danfoss

22611-20-16TZ

HOSE NIPPLE ASSY, 2P/16, BF/20, CS, STR

Danfoss

22611-16-20Z

HOSE NIPPLE ASSY, 2P/20, BF/16, CS, STR

Danfoss

22611-16-16ORZ

HOSE NIPPLE ASSY, 2P/16, BF/16, CS, STR

Danfoss

22611-16-14Z

HOSE NIPPLE ASSY, 2P/14, BF/16, CS, STR

Danfoss

22611-16-12TZ

HOSE NIPPLE ASSY, 2P/12, BF/16, CS, STR

Danfoss

22611-12-12ORZ

HOSE NIPPLE ASSY, 2P/12, BF/12, CS, STR

Danfoss

22611-12-10Z

HOSE NIPPLE ASSY, 2P/10, BF/12, CS, STR

Danfoss

22611-12-08TZ

HOSE NIPPLE ASSY, 2P/08, BF/12, CS, STR

Danfoss

22611-10-10Z

HOSE NIPPLE ASSY, 2P/10, BF/10, CS, STR

Danfoss

22611-10-08Z

HOSE NIPPLE ASSY, 2P/08, BF/10, CS, STR

Danfoss

22611-08-12Z

HOSE NIPPLE ASSY, 2P/12, BF/08, CS, STR

Danfoss

22611-08-10Z

HOSE NIPPLE ASSY, 2P/10, BF/08, CS, STR

Danfoss

22611-08-08TZ

HOSE NIPPLE ASSY, 2P/08, BF/08, CS, STR

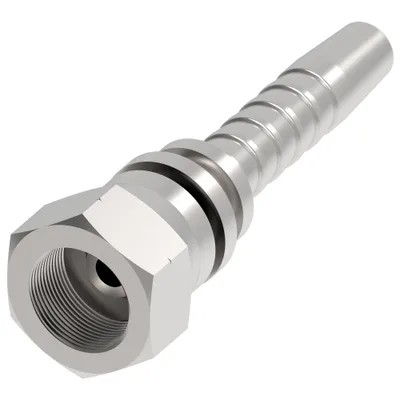

Danfoss

22611-08-08ORZ

HOSE NIPPLE ASSY, 2P/08, BF/08, CS, STR

Danfoss

22611-08-06TZ

HOSE NIPPLE ASSY, 2P/06, BF/08, CS, STR

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	A dimension IN	A dimension MM	Hose cut off factor IN	Product length in	Product length mm
22611D-12-12Z	2.830	72.000	1.310	3.260	82.804
22611D-04-04Z	2.020	51.500	0.920	2.240	56.896
22611-32-32ORWZ	4.090	104.000	1.250	4.730	120.142
22611-32-24TZ	3.850	98.000	1.180	4.490	114.046
22611-24-24WZ	3.930	100.000	1.250	4.430	112.522
22611-24-24ORWZ	3.930	100.000	1.250	4.420	112.268
22611-24-20TZ	3.280	83.500	1.160	3.800	96.520
22611-20-20WZ	3.320	84.500	1.200	3.720	94.488
22611-20-20ORWZ	3.320	84.500	1.200	3.720	94.488
22611-20-16TZ	2.910	74.000	1.063	3.310	84.074
22611-16-20Z	3.220	82.000	1.100	3.690	93.726
22611-16-16ORZ	2.910	74.000	1.063	3.370	85.598
22611-16-14Z	2.598	66.000	1.020	3.060	77.724
22611-16-12TZ	2.420	61.500	0.910	2.880	73.152
22611-12-12ORZ	2.460	62.500	0.940	2.890	73.406
22611-12-10Z	2.260	57.500	0.920	2.690	68.326
22611-12-08TZ	2.020	51.500	0.780	2.460	62.484
22611-10-10Z	2.240	57.000	0.910	2.620	66.548
22611-10-08Z	2.100	53.500	0.860	2.480	62.992
22611-08-12Z	2.400	61.000	0.880	2.700	68.580
22611-08-10Z	2.220	56.500	0.870	2.520	64.008
22611-08-08TZ	2.060	52.500	0.820	2.360	59.944
22611-08-08ORZ	2.080	53.000	0.840	2.380	60.452
22611-08-06TZ	1.900	48.500	0.720	2.200	55.880

Common to all listed parts

Angle shape	Straight
Construction Style	Crimp
End Type 1	Female BSPP swivel
Finish plating	Zinc plating
Series	Winner 2-Piece
