Danfoss 22641-08-08Z

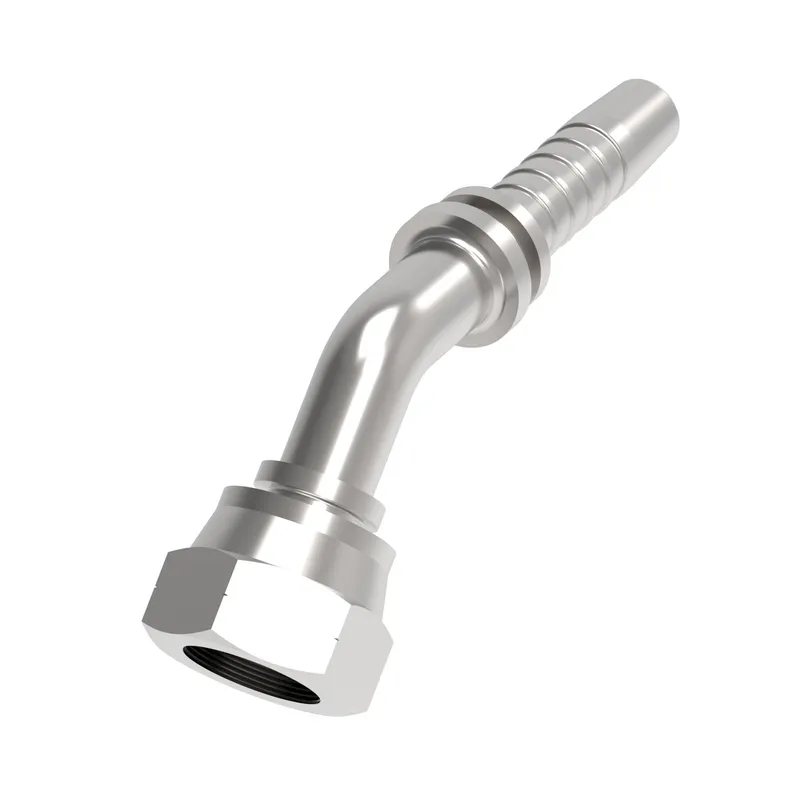

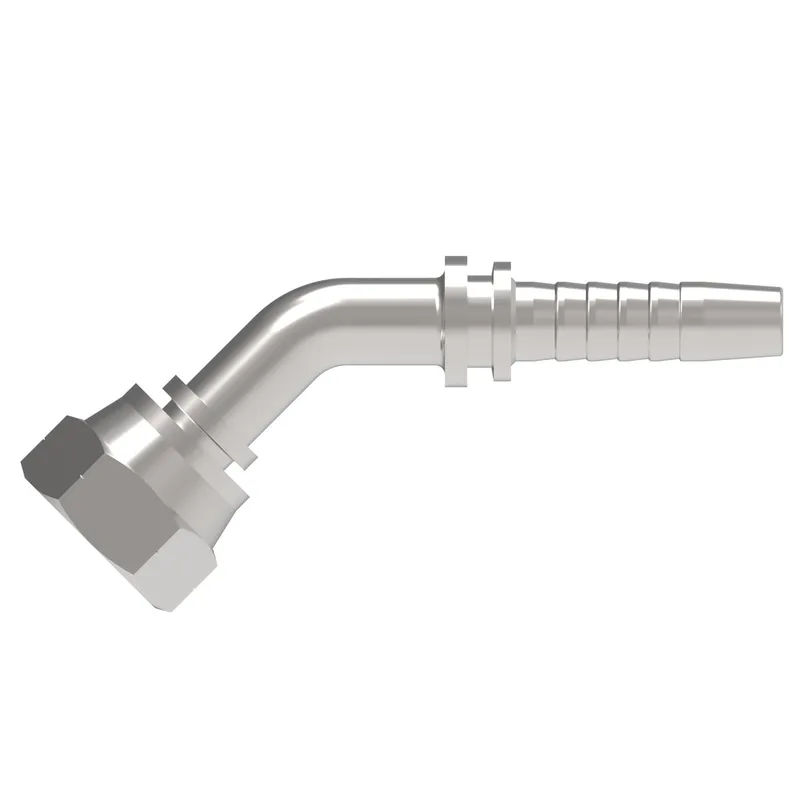

HOSE NIPPLE ASSY, 1P/08, BF/08, CS, 45D

MPN: 22641-08-08Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 22641-08-08Z?

Danfoss HOSE NIPPLE ASSY, 1P/08, BF/08, CS, 45D, manufacturer part number 22641-08-08Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.650
A dimension MM	92.600
Angle shape	45 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
Drop dimension IN	1.030
Drop dimension MM	26.10
End connection torque	55-70 lb-ft(75-95 Nm)
End size 1	-8
End Type 1	Female BSPP swivel
Finish plating	Zinc plating
Hose cut off factor IN	2.410
Hose cut off factor MM	61.100
Hose size	-8
Inside diameter IN	0.390
Inside diameter MM	10.000
Product height in	2.230
Product height mm	56.642
Product length in	4.470
Product length mm	113.538
Product material	Carbon steel
Product width in	1.060
Product width mm	26.924
Proposition 65	Cancer and Reproductive Harm
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
