Danfoss 22641Y-10-10Z

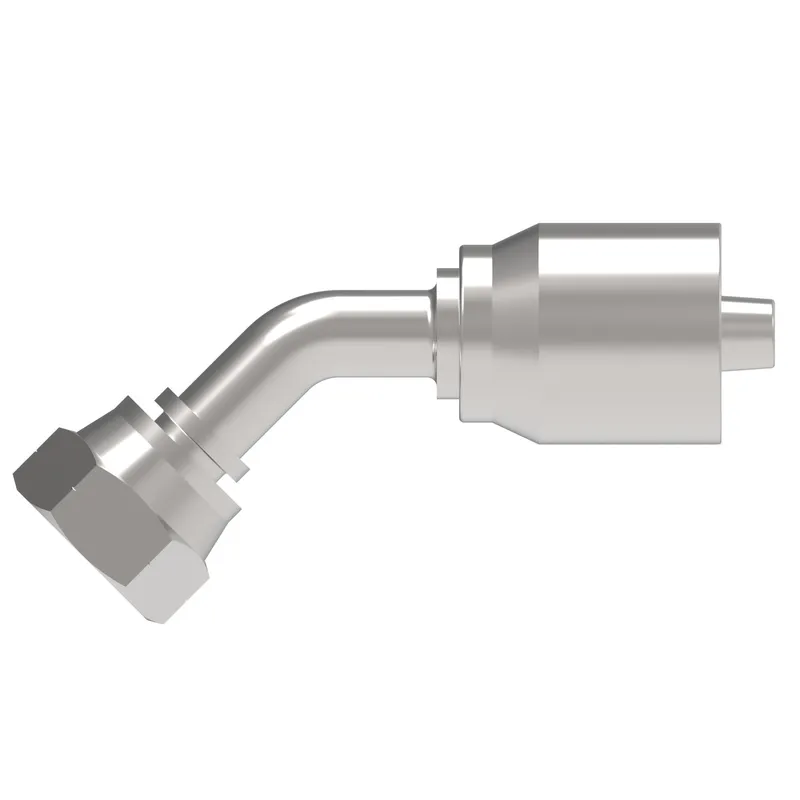

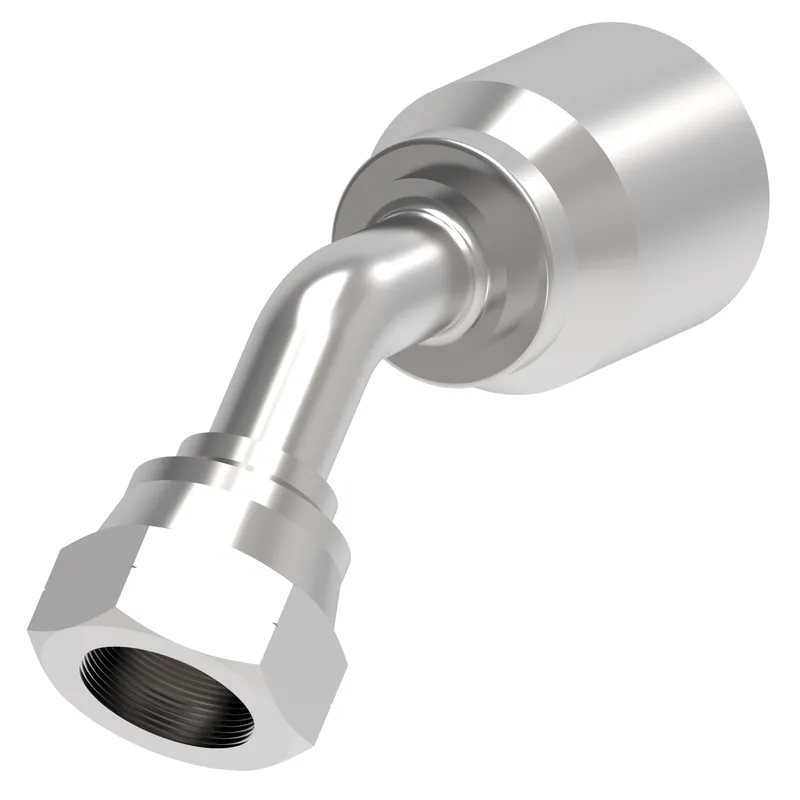

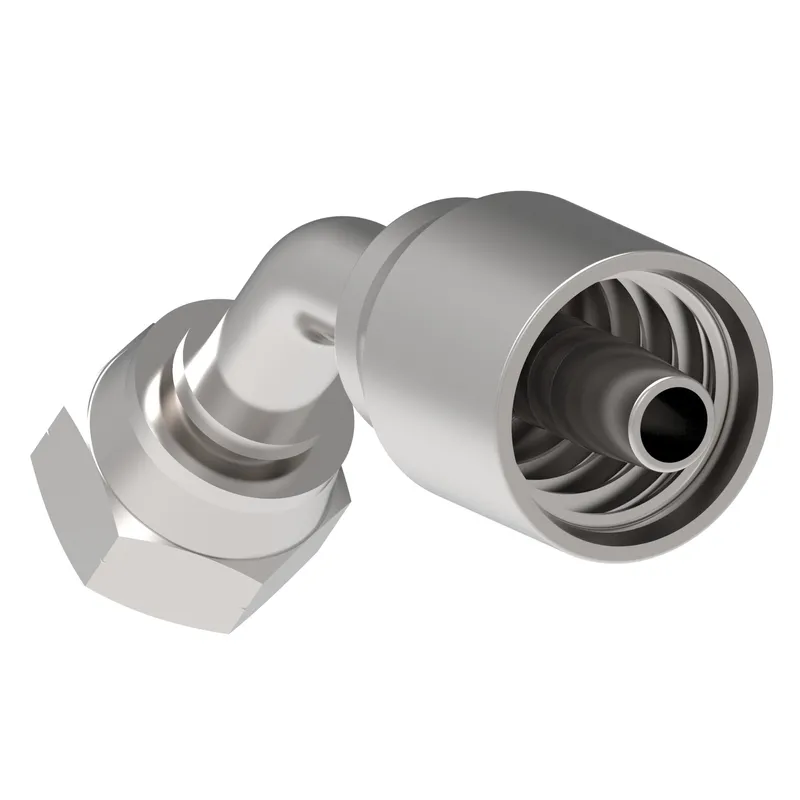

HOSE NIPPLE ASSY, 1P/10, BF/10, CS, 45D

MPN: 22641Y-10-10Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 22641Y-10-10Z?

Danfoss HOSE NIPPLE ASSY, 1P/10, BF/10, CS, 45D, manufacturer part number 22641Y-10-10Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	4.180
A dimension MM	106.100
Angle shape	45 Degree
Compatible hose ID IN	0.620
Compatible hose ID MM	15.900
Compatible hoses	EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction Style	Crimp
Drop dimension IN	1.090
Drop dimension MM	27.80
End size 1	-10
End Type 1	Female BSPP swivel
Finish plating	Zinc plating
Hex size 2 IN	1.180
Hex size 2 MM	29.972
Hose cut off factor IN	2.840
Hose cut off factor MM	72.136
Hose size	-10
Inside diameter IN	0.470
Inside diameter MM	12.000
Product height in	2.759
Product height mm	70.079
Product length in	5.141
Product length mm	130.581
Product material	Carbon steel
Product width in	1.300
Product width mm	33.02
Thread sealant	No
Thread size 1	G 5/8
Working pressure max BAR	350
Working pressure max PSI	5100
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
