Danfoss 22641Y-12-12Z

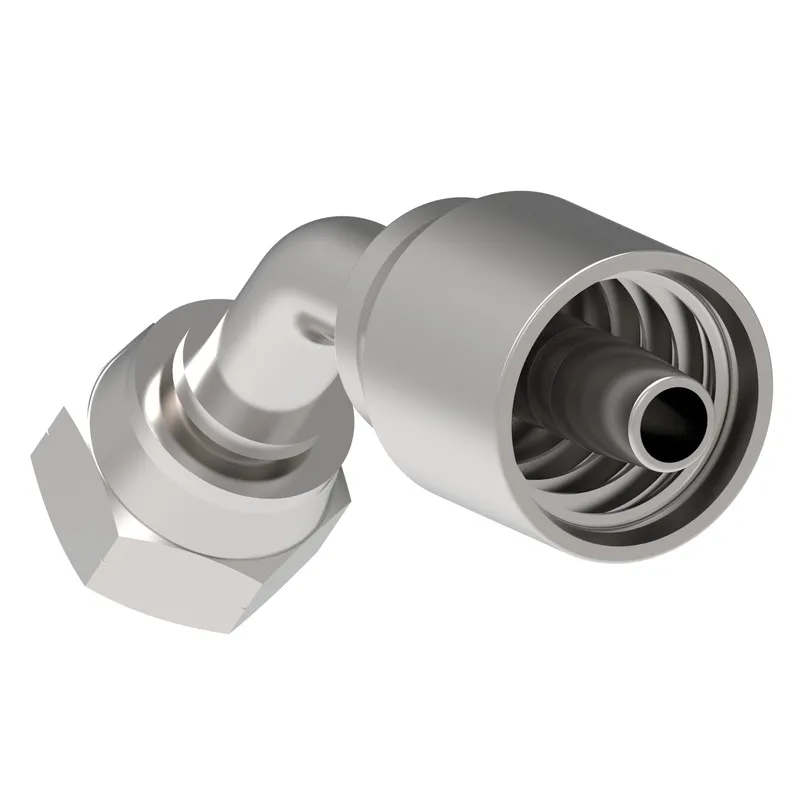

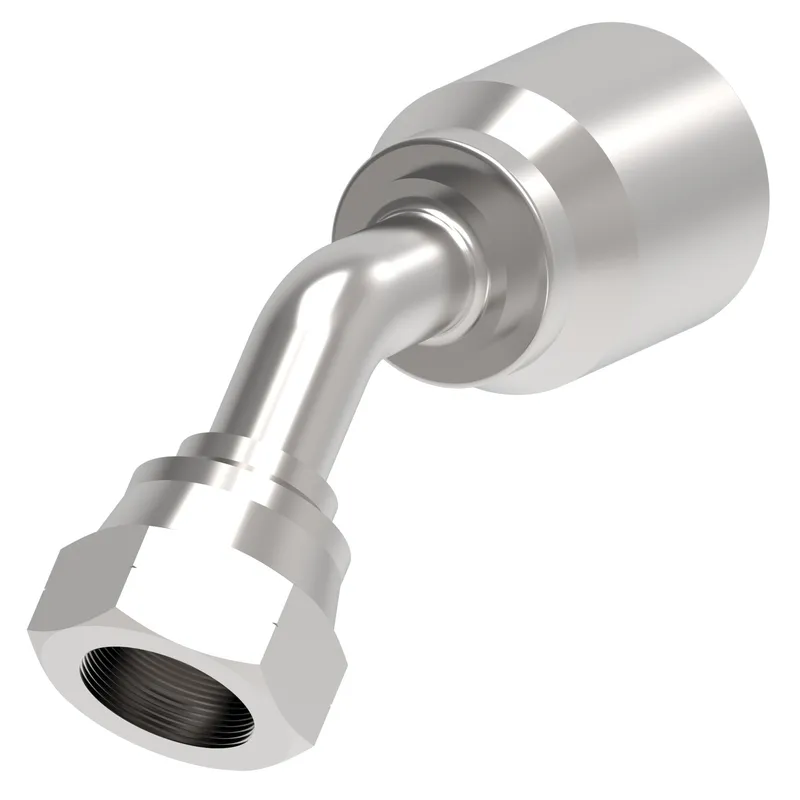

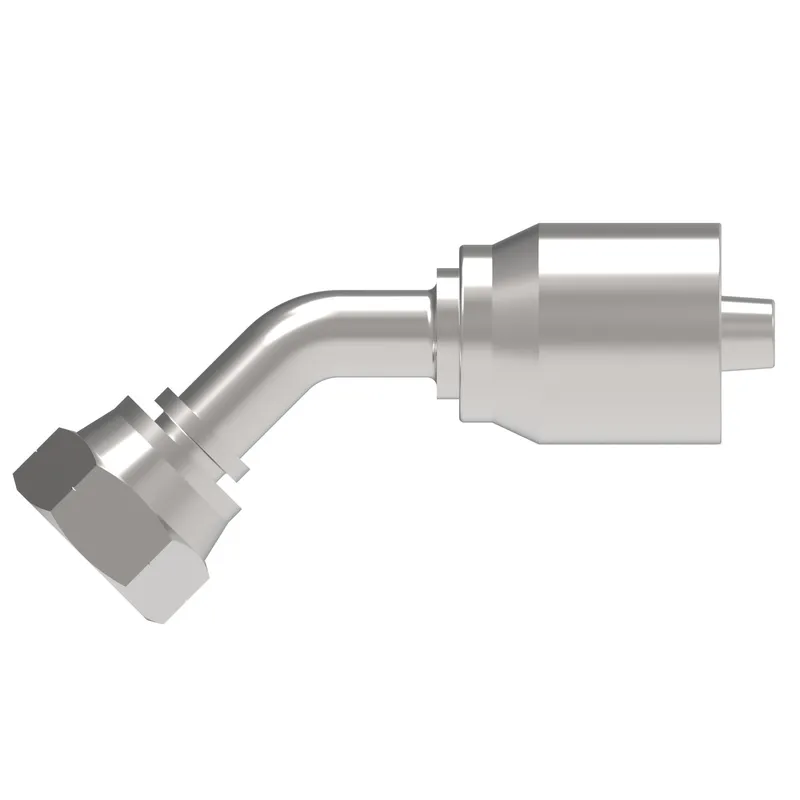

HOSE NIPPLE ASSY, 1P/12, BF/12, CS, 45D

MPN: 22641Y-12-12Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 22641Y-12-12Z?

Danfoss HOSE NIPPLE ASSY, 1P/12, BF/12, CS, 45D, manufacturer part number 22641Y-12-12Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	4.610
A dimension MM	117.100
Angle shape	45 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Compatible hoses	EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction Style	Crimp
Drop dimension IN	1.250
Drop dimension MM	31.80
End connection torque	103-118 lb-ft(140-160 Nm)
End size 1	-12
End Type 1	Female BSPP swivel
Finish plating	Zinc plating
Hex size 2 IN	1.260
Hex size 2 MM	32.004
Hose cut off factor IN	3.090
Hose cut off factor MM	78.600
Hose size	-12
Inside diameter IN	0.590
Inside diameter MM	15.000
Product height in	3.090
Product height mm	78.486
Product length in	5.670
Product length mm	144.018
Product material	Carbon steel
Product width in	1.550
Product width mm	39.37
Thread sealant	No
Thread size 1	G 3/4
Working pressure max BAR	330
Working pressure max PSI	4800
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40

22641Y-12-12Z: frequently asked questions

When can 22641Y-12-12Z be shipped?

22641Y-12-12Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 22641Y-12-12Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 22641Y-12-12Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 22641Y-12-12Z, subject to availability and destination.
