Danfoss 22690K-06-06Z

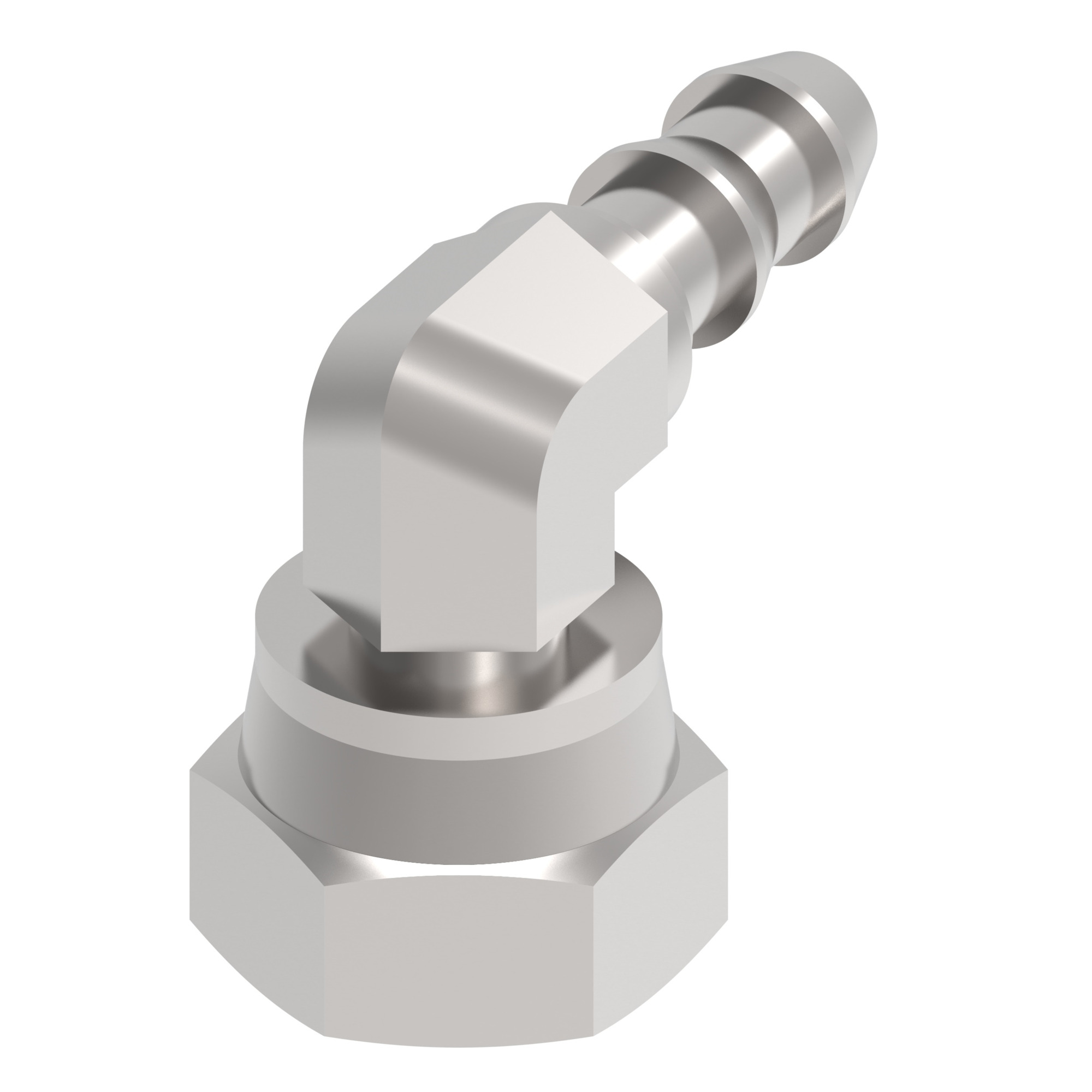

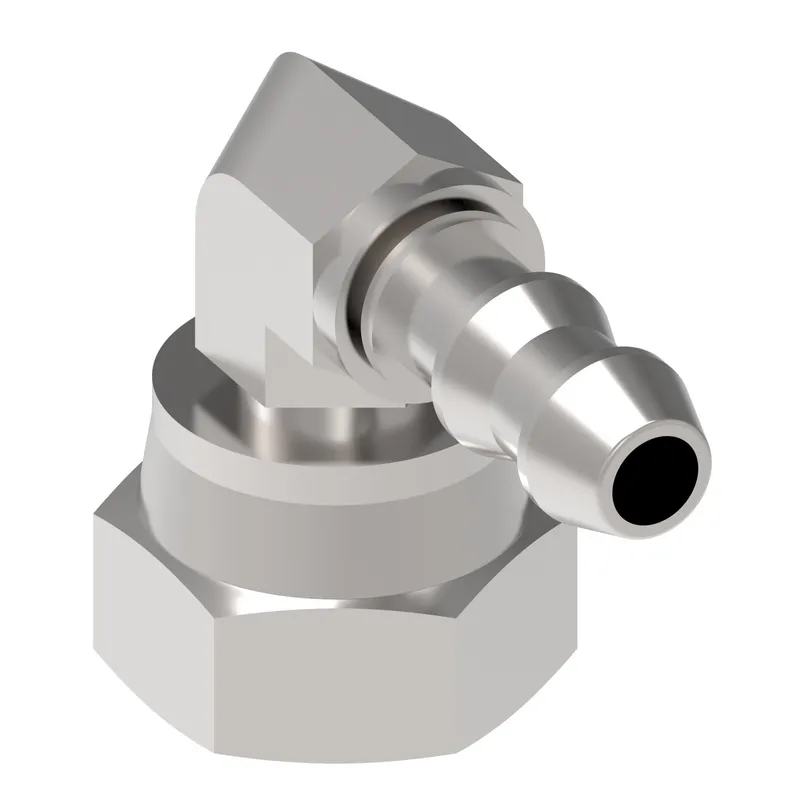

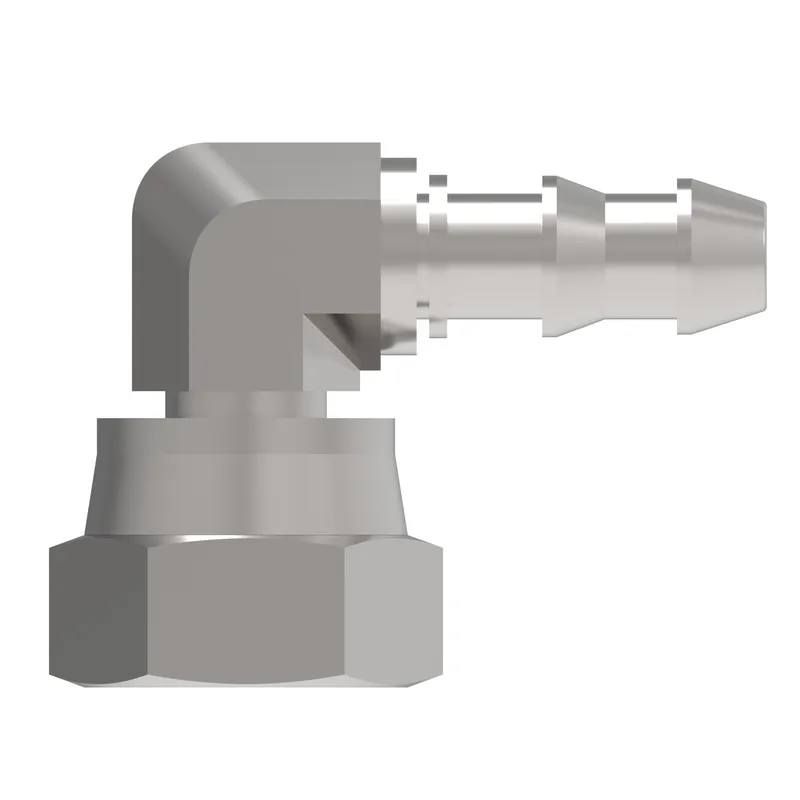

HOSE NIPPLE ASSY, 2P/06, BF/06, CS, 90D

MPN: 22690K-06-06Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 22690K-06-06Z?

Danfoss HOSE NIPPLE ASSY, 2P/06, BF/06, CS, 90D, manufacturer part number 22690K-06-06Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.496
A dimension MM	38.000
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Construction Style	Crimp
Drop dimension IN	0.905
Drop dimension MM	23.00
End size 1	-6
End Type 1	Female BSPP swivel
Finish plating	Zinc plating
Hex size 1 IN	0.550
Hex size 1 MM	0.000
Hex size 2 IN	0.866
Hex size 2 MM	21.996
Hose cut off factor IN	0.551
Hose cut off factor MM	14.000
Hose size	-6
Inside diameter IN	0.275
Inside diameter MM	7.000
Product height in	1.430
Product height mm	36.322
Product length in	1.850
Product length mm	46.990
Product material	Carbon steel
Product width in	0.870
Product width mm	22.098
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	G 3/8
Working pressure max BAR	400
Working pressure max PSI	5800
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
