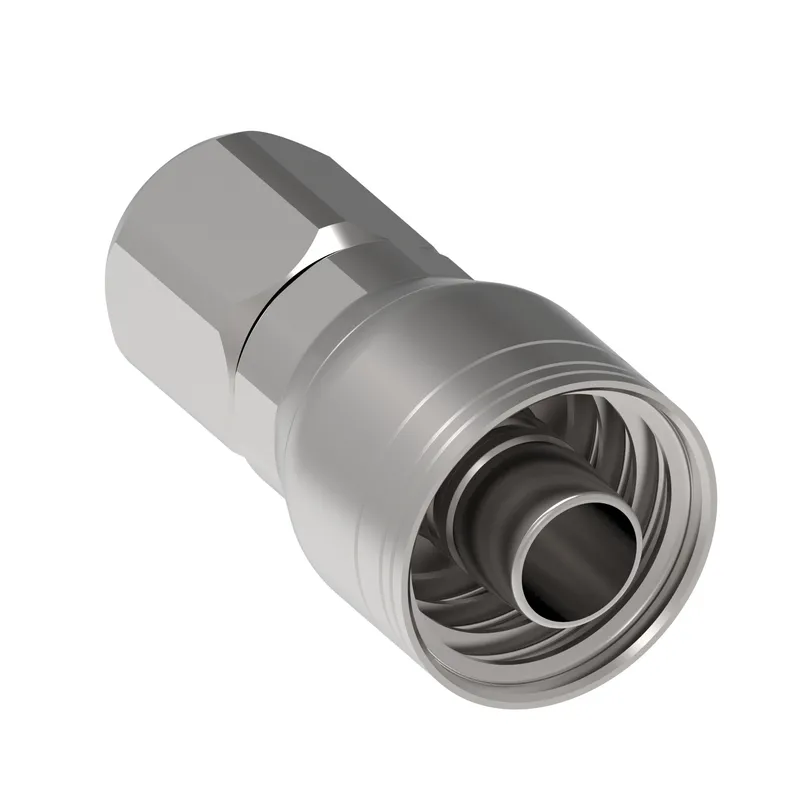

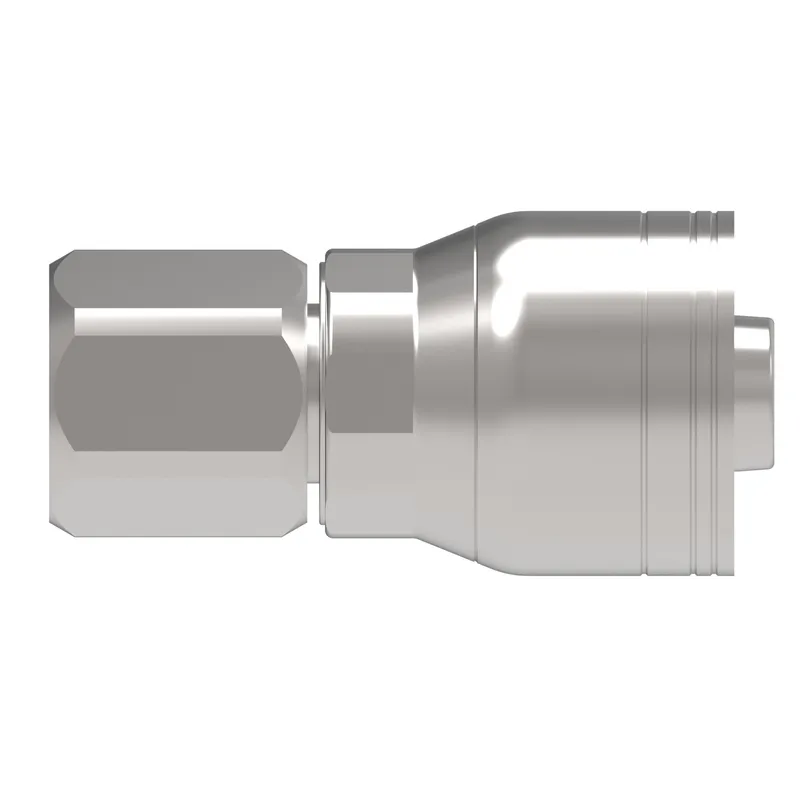

Danfoss 1A10FJ10

HOSE FTG, 1A/10, JIC-F/10, CS, STR

MPN: 1A10FJ10
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1A10FJ10?

Danfoss HOSE FTG, 1A/10, JIC-F/10, CS, STR, manufacturer part number 1A10FJ10. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.600
A dimension MM	66.100
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.620
Compatible hose ID MM	15.900
Construction Style	Crimp
End connection torque	57-62 lb-ft(77-85 Nm)
End size 1	-10
End Type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	1.063
Hex size 1 MM	27.000
Hex size 2 MM	27.000
Hose cut off factor IN	1.600
Hose cut off factor MM	40.600
Hose size	-10
Inside diameter IN	0.500
Inside diameter MM	12.800
Product height in	1.386
Product height mm	35.200
Product length in	2.756
Product length mm	70.000
Product material	Carbon steel
Product width in	1.386
Product width mm	35.2
Proposition 65	Cancer and Reproductive Harm
Series	1A/Z Series
Thread sealant	No
Thread size 1	7/8-14 UNF
Working pressure max BAR	350.00
Working pressure max PSI	5100.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
