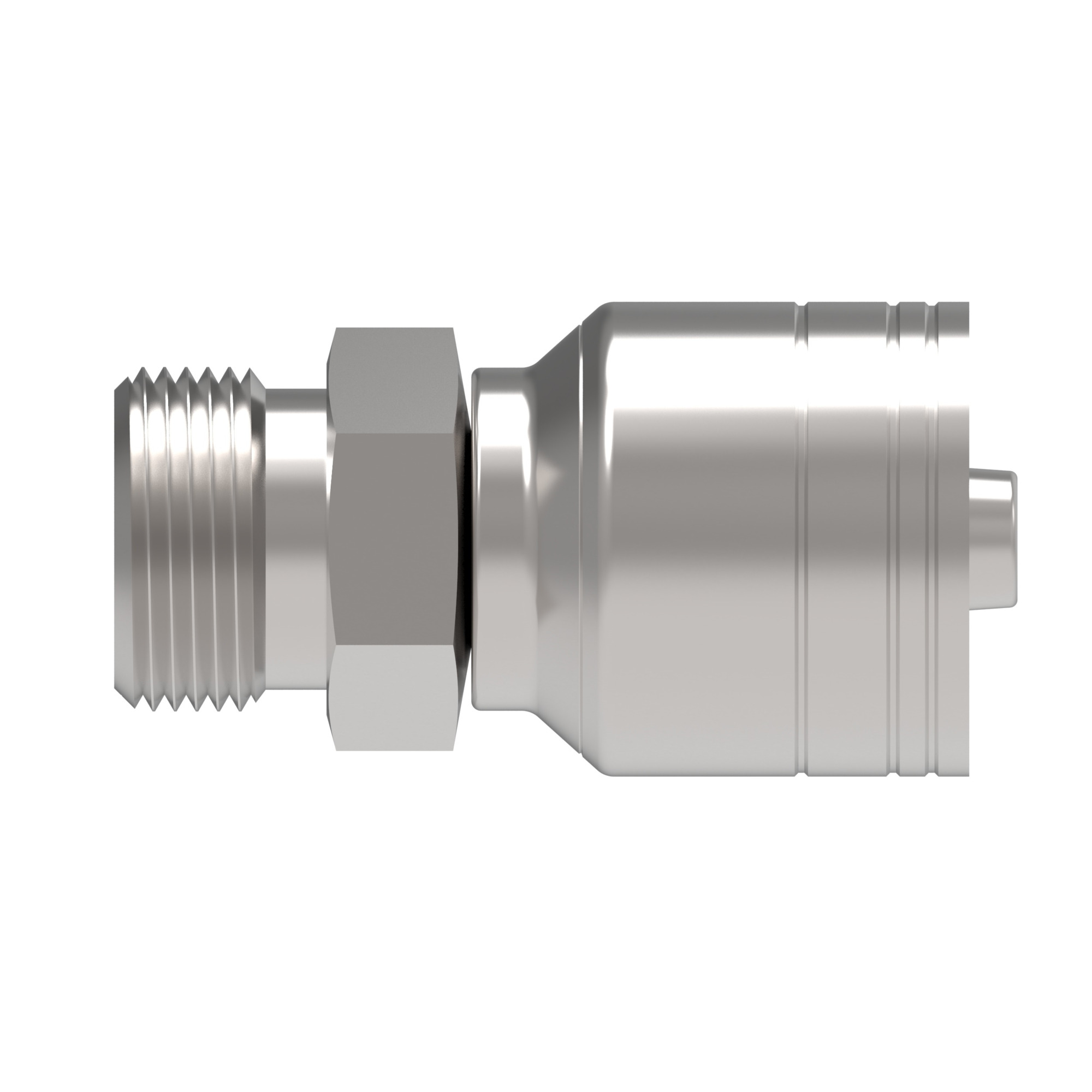

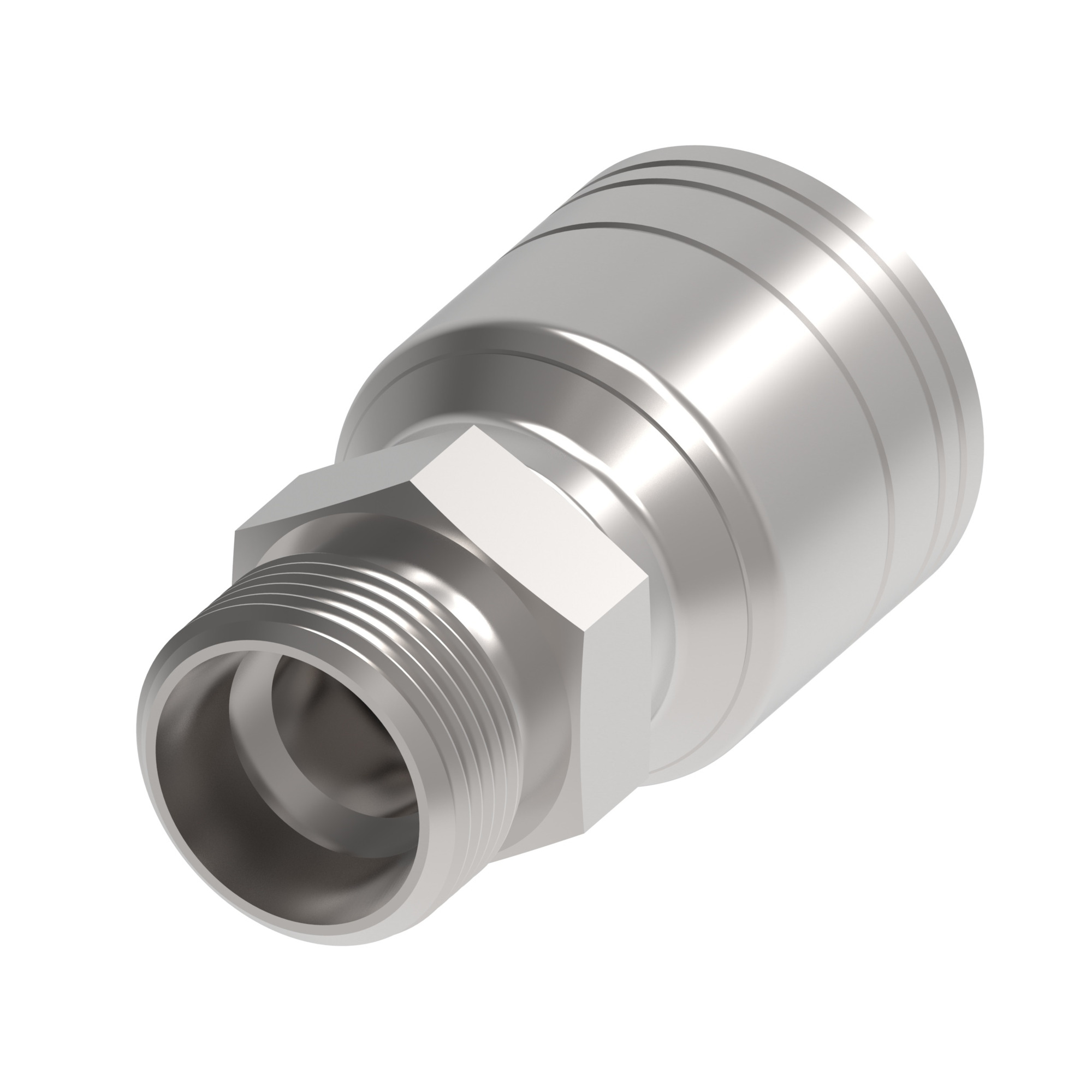

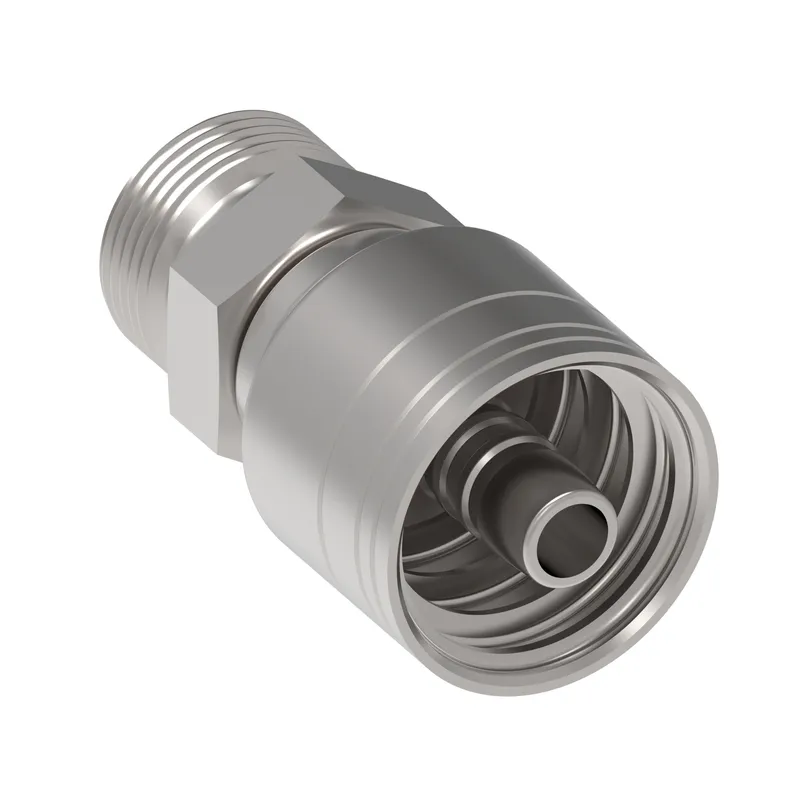

Danfoss 1A10DK6AH

HOSE FTG, 1A/06, DKL-M/10, CS, STR

MPN: 1A10DK6AH
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1A10DK6AH?

Danfoss HOSE FTG, 1A/06, DKL-M/10, CS, STR, manufacturer part number 1A10DK6AH. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.930
A dimension MM	49.000
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Construction Style	Crimp
End size 1	-10
End Type 1	24 deg. tube port light duty
Finish plating	Dura-Kote
Hex size 1 IN	0.750
Hex size 1 MM	19.050
Hex size 2 MM	19.000
Hose cut off factor IN	0.930
Hose cut off factor MM	23.700
Hose size	-6
Inside diameter IN	0.260
Inside diameter MM	6.700
Product height in	1.070
Product height mm	27.178
Product length in	1.930
Product length mm	49.022
Product material	Carbon steel
Product width in	1.070
Product width mm	27.178
Series	1A/Z Series
Thread sealant	No
Thread size 1	M18x1.5
Working pressure max BAR	160.00
Working pressure max PSI	2300.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
