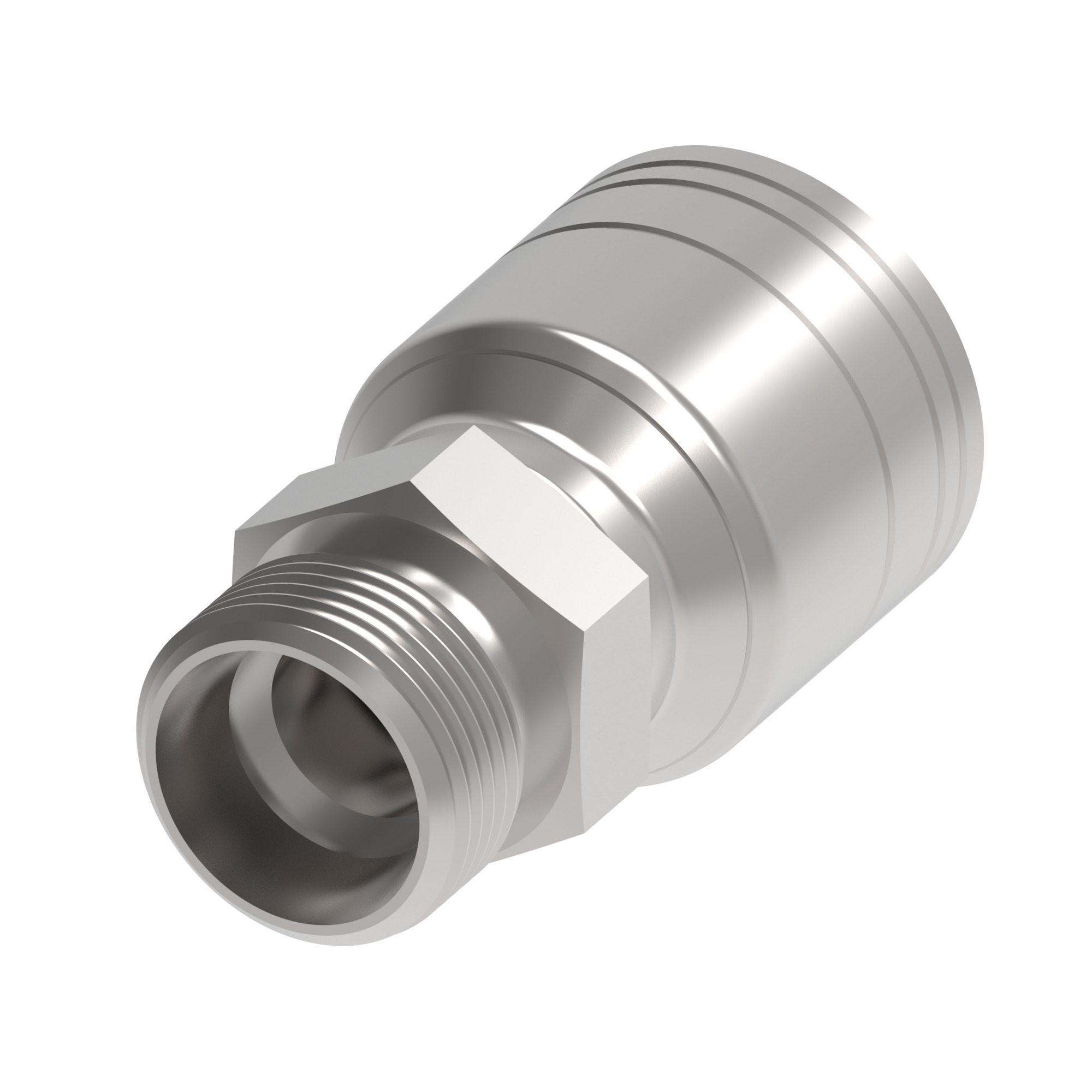

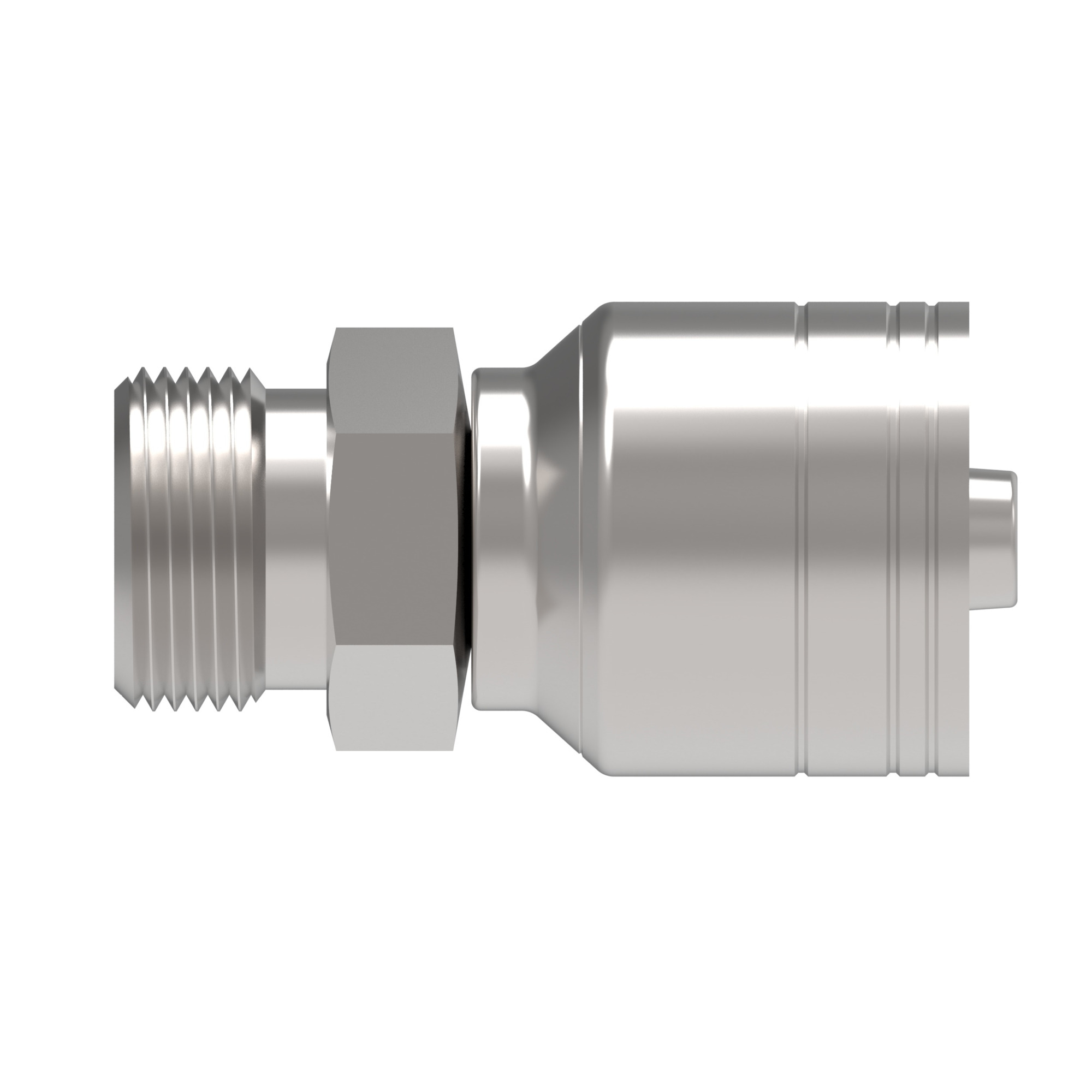

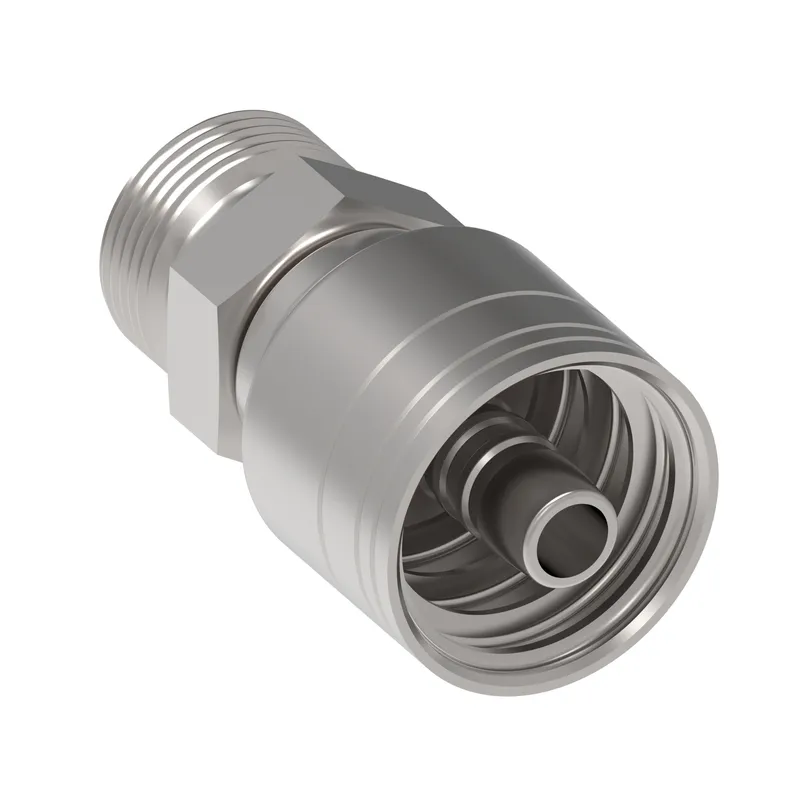

Danfoss 1A10EK6

HOSE FTG, 1A/06, EK/10, CS, STR

MPN: 1A10EK6
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1A10EK6?

Danfoss HOSE FTG, 1A/06, EK/10, CS, STR, manufacturer part number 1A10EK6. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146123312
A dimension IN	2.070
A dimension MM	52.600
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Construction Style	Crimp
End connection torque	52-66 lb-ft(70-90 Nm)
End size 1	-10
End Type 1	24 deg. tube port heavy duty
Finish plating	Dura-Kote
Hex size 1 IN	0.940
Hex size 1 MM	23.876
Hex size 2 MM	24.000
Hose cut off factor IN	1.070
Hose cut off factor MM	27.300
Hose size	-6
Inside diameter IN	0.260
Inside diameter MM	6.700
Product height in	0.940
Product height mm	23.876
Product length in	2.070
Product length mm	52.578
Product material	Carbon steel
Product width in	0.940
Product width mm	23.876
Proposition 65	Cancer and Reproductive Harm
Series	1A/Z Series
Thread sealant	No
Thread size 1	M22x1.5
Working pressure max BAR	400
Working pressure max PSI	5800
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
