Danfoss 1A10DLA8

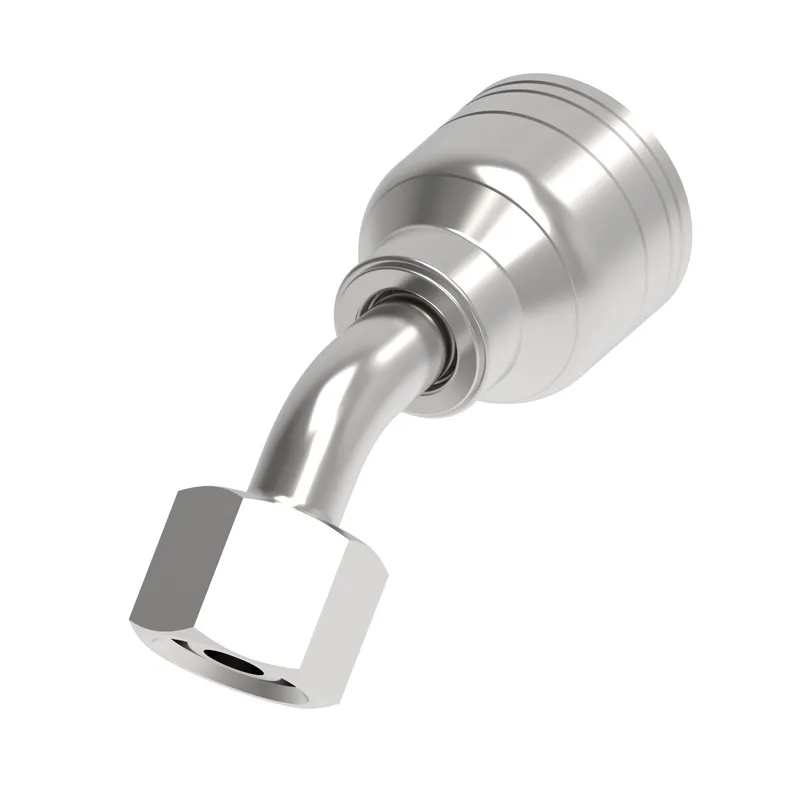

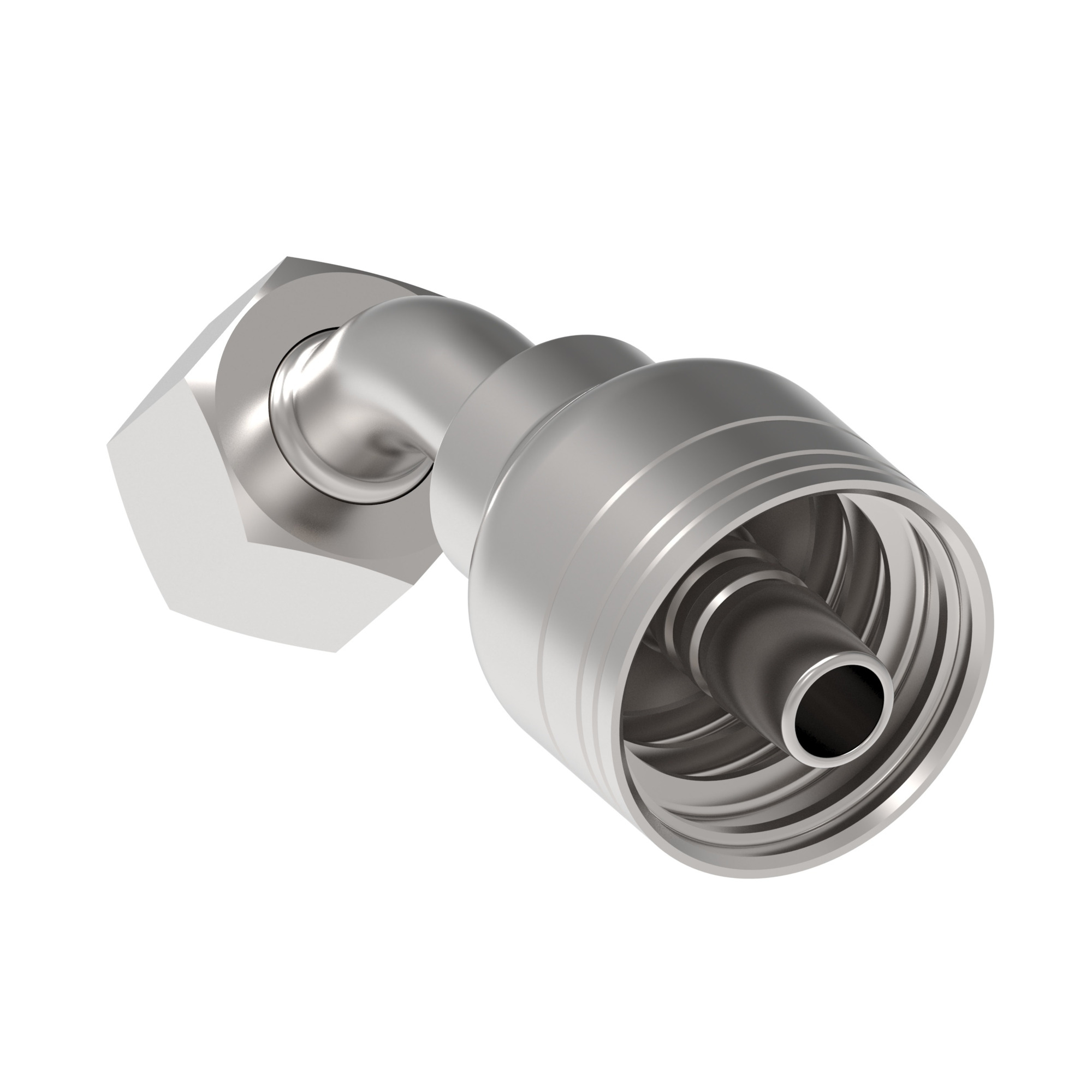

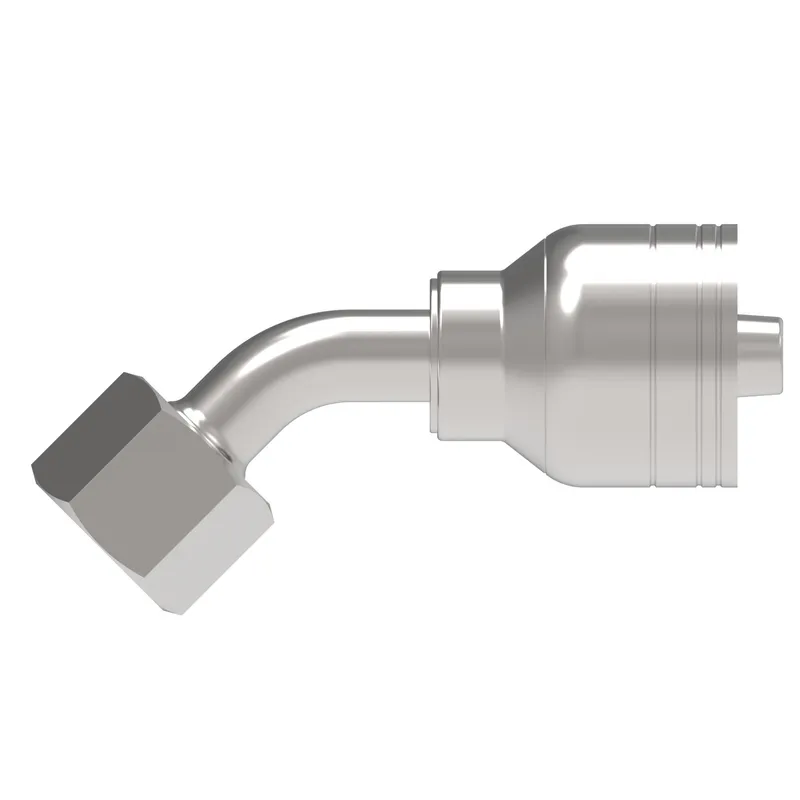

HOSE FTG, 1A/08, DKOL/10, CS, 45D

MPN: 1A10DLA8
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1A10DLA8?

Danfoss HOSE FTG, 1A/08, DKOL/10, CS, 45D, manufacturer part number 1A10DLA8. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.810
A dimension MM	71.400
Angle shape	45 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
Drop dimension IN	0.680
Drop dimension MM	17.20
End connection torque	38-42 lb-ft(52-58 Nm)
End size 1	-10
End Type 1	24 deg. DKO swivel light duty
Finish plating	Dura-Kote
Hex size 1 IN	0.870
Hex size 1 MM	22.098
Hose cut off factor IN	1.640
Hose cut off factor MM	41.700
Hose size	-8
Inside diameter IN	0.380
Inside diameter MM	9.600
Product height in	0.680
Product height mm	17.272
Product length in	2.810
Product length mm	71.374
Product material	Carbon steel
Product width in	0.680
Product width mm	17.272
Proposition 65	Cancer and Reproductive Harm
Series	1A/Z Series
Thread sealant	No
Thread size 1	M18x1.5
Working pressure max BAR	250.00
Working pressure max PSI	3650.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
