Danfoss 1A10DSB8

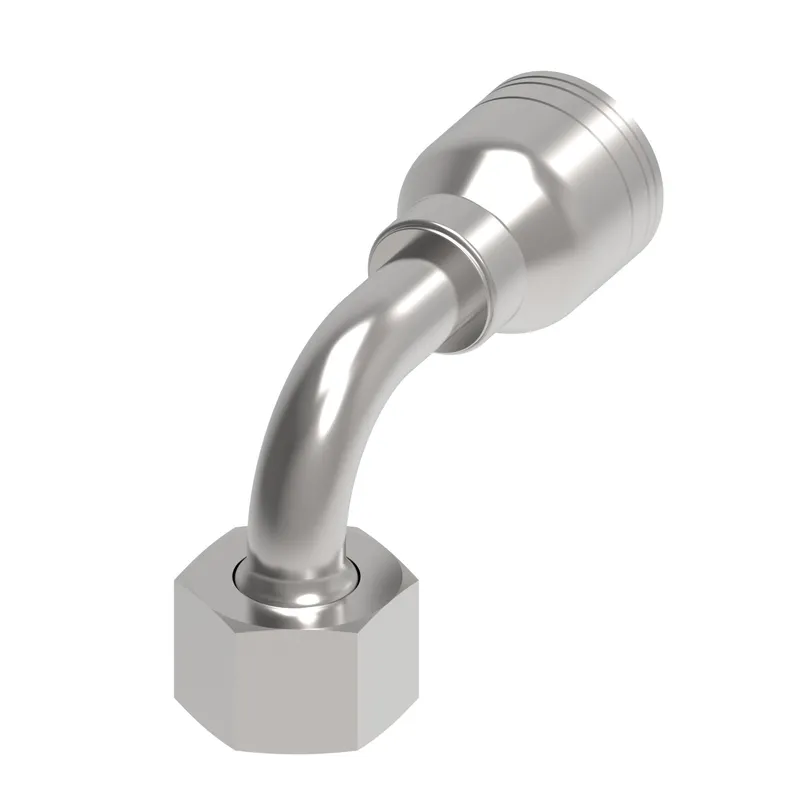

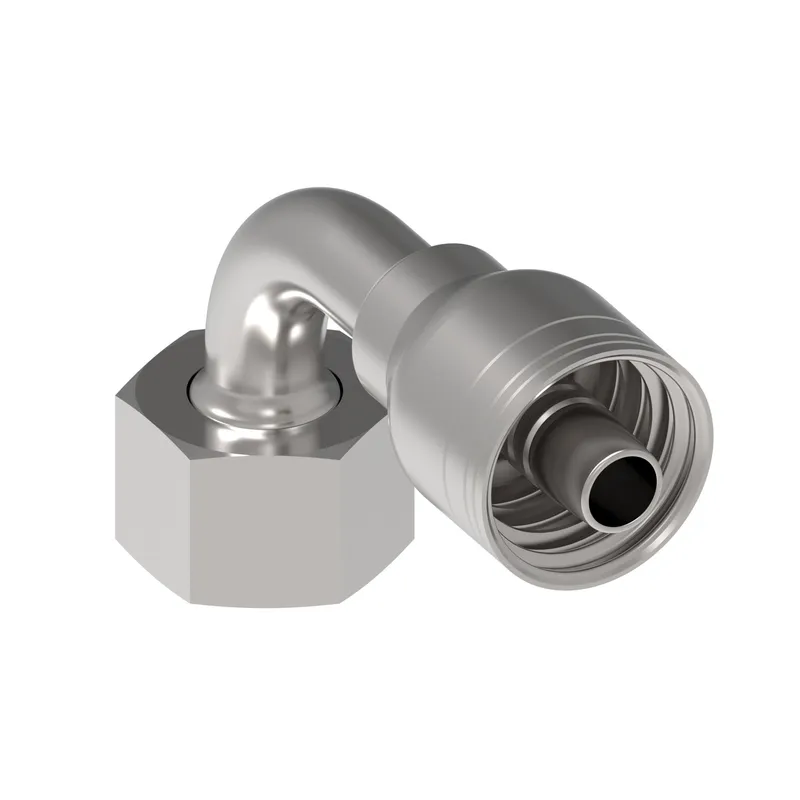

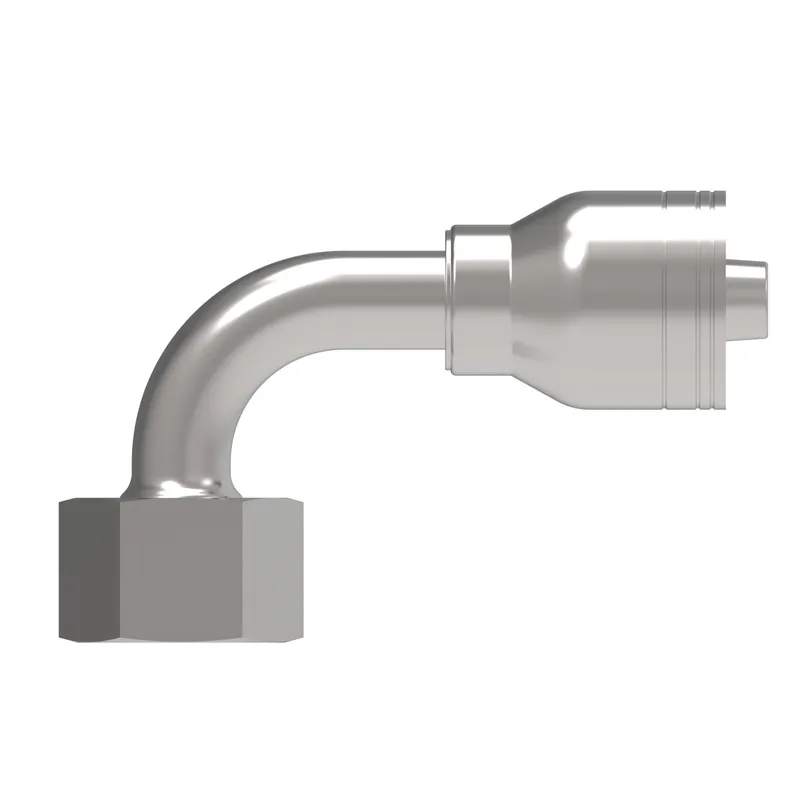

HOSE FTG, 1A/08, DKOH-B/10, CS, 90D

MPN: 1A10DSB8
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1A10DSB8?

Danfoss HOSE FTG, 1A/08, DKOH-B/10, CS, 90D, manufacturer part number 1A10DSB8. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.800
A dimension MM	71.200
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
Drop dimension IN	1.610
Drop dimension MM	41.00
End connection torque	52-66 lb-ft(70-90 Nm)
End size 1	-10
End Type 1	24 deg. DKO swivel heavy duty
Finish plating	Dura-Kote
Hex size 1 IN	1.063
Hex size 1 MM	27.000
Hex size 2 IN	0.000
Hose cut off factor IN	1.630
Hose cut off factor MM	41.500
Hose size	-8
Inside diameter IN	0.380
Inside diameter MM	9.600
Product height in	1.610
Product height mm	40.894
Product length in	2.800
Product length mm	71.120
Product material	Carbon steel
Product width in	1.220
Product width mm	30.988
Proposition 65	Cancer and Reproductive Harm
Seal material	Nitrile (NBR)
Series	1A/Z Series
Thread sealant	No
Thread size 1	M22x1.5
Working pressure max BAR	350.00
Working pressure max PSI	5100.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
