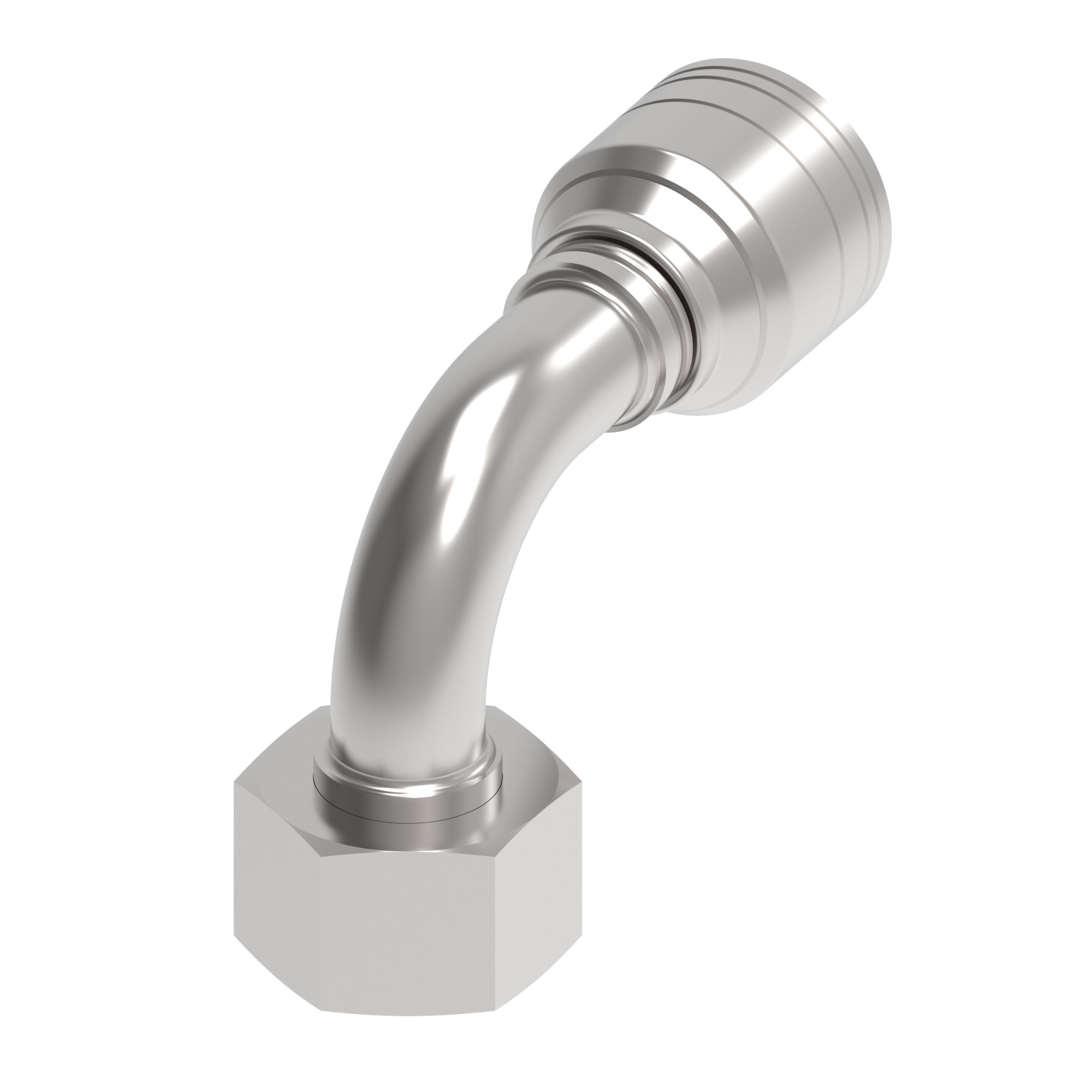

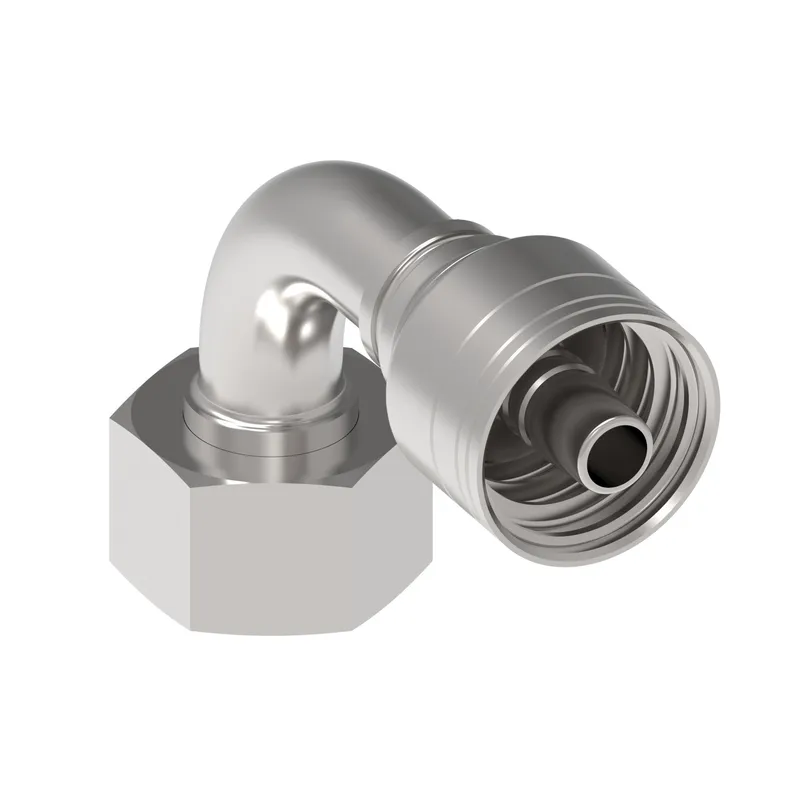

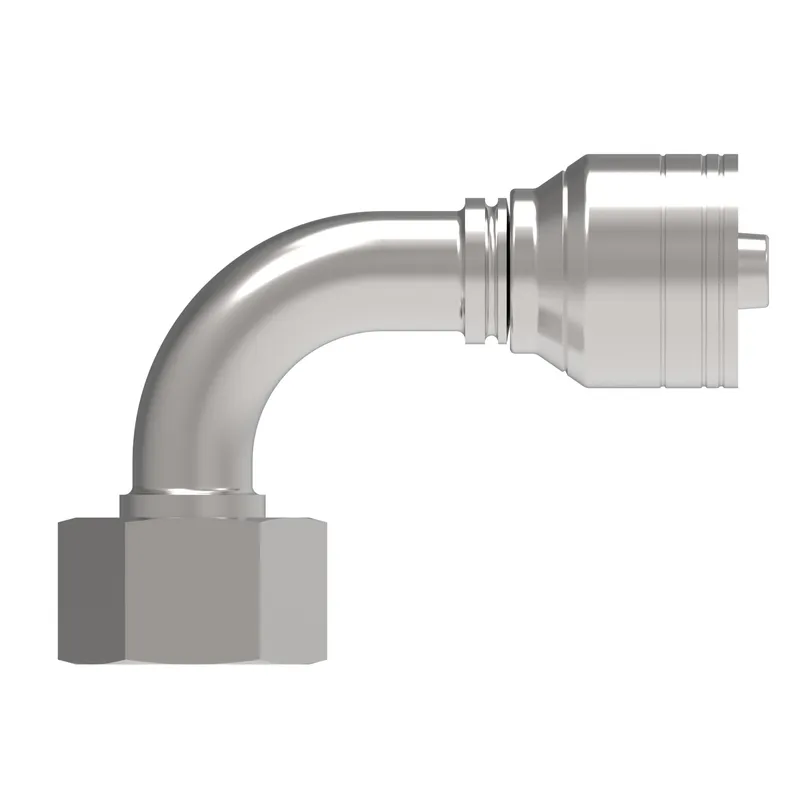

Danfoss 1A10DLB5

HOSE FTG, 1A/05, DKOL/10, CS, 90D

MPN: 1A10DLB5
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1A10DLB5?

Danfoss HOSE FTG, 1A/05, DKOL/10, CS, 90D, manufacturer part number 1A10DLB5. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.370
A dimension MM	60.100
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.310
Compatible hose ID MM	7.900
Construction Style	Crimp
Drop dimension IN	1.480
Drop dimension MM	37.50
End connection torque	38-42 lb-ft(52-58 Nm)
End size 1	-10
End Type 1	24 deg. DKO swivel light duty
Finish plating	Dura-Kote
Hex size 1 IN	0.875
Hex size 1 MM	22.000
Hex size 2 IN	0.000
Hose cut off factor IN	1.430
Hose cut off factor MM	36.200
Hose size	-5
Inside diameter IN	0.210
Inside diameter MM	5.300
Product height in	1.480
Product height mm	37.592
Product length in	2.370
Product length mm	60.198
Product material	Carbon steel
Product width in	1.480
Product width mm	37.592
Proposition 65	Cancer and Reproductive Harm
Seal material	Nitrile (NBR)
Series	1A/Z Series
Thread sealant	No
Thread size 1	M18x1.5
Tube OD 1 IN	0.393
Tube OD 1 MM	10.000
Working pressure max BAR	250
Working pressure max PSI	3650
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40

1A10DLB5: frequently asked questions

When can 1A10DLB5 be shipped?

1A10DLB5 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1A10DLB5 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1A10DLB5 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1A10DLB5, subject to availability and destination.
