Danfoss 1A10DL5

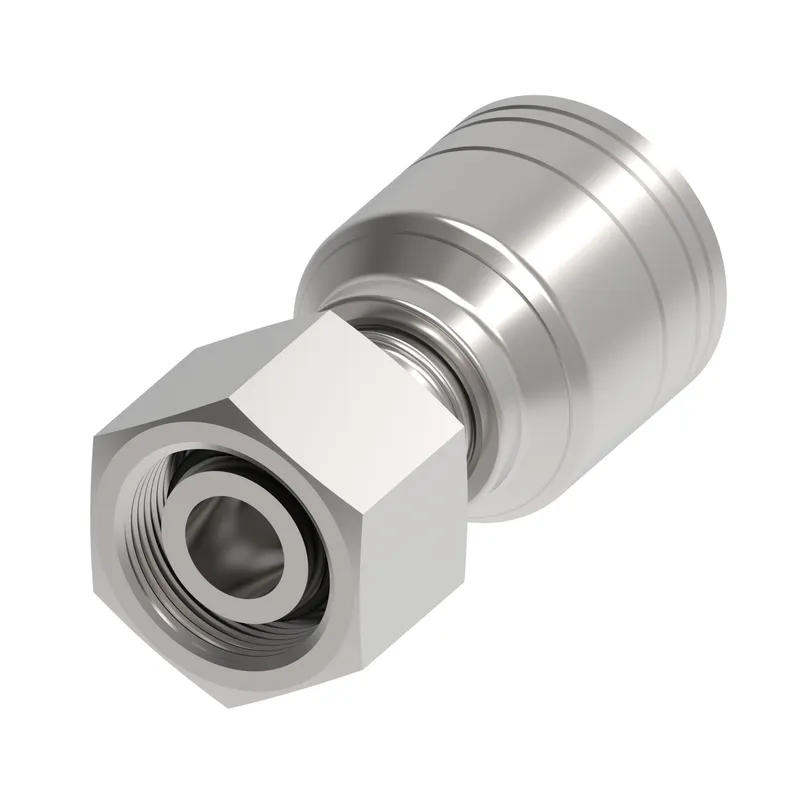

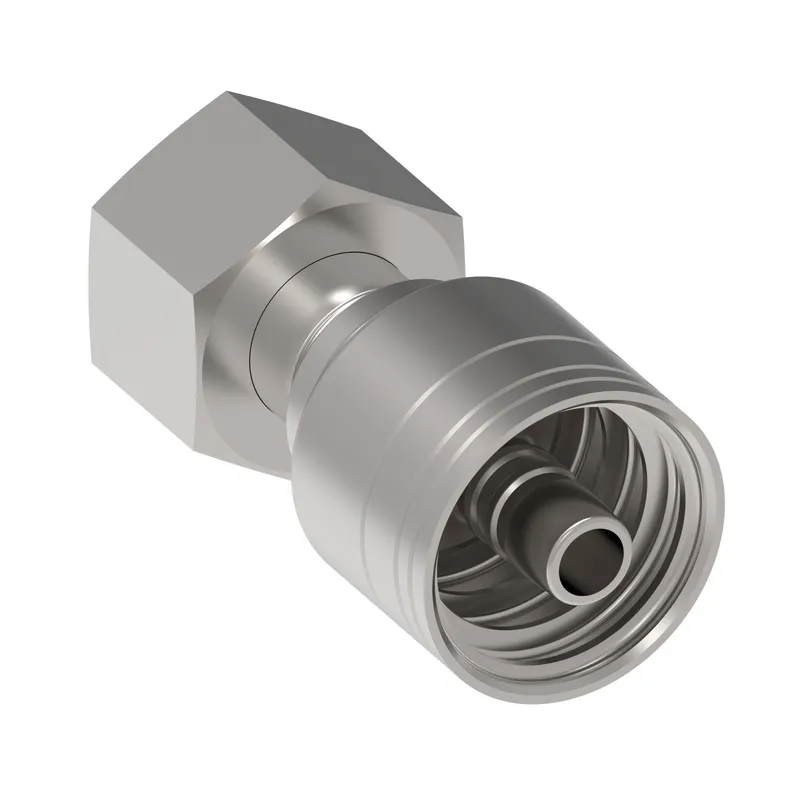

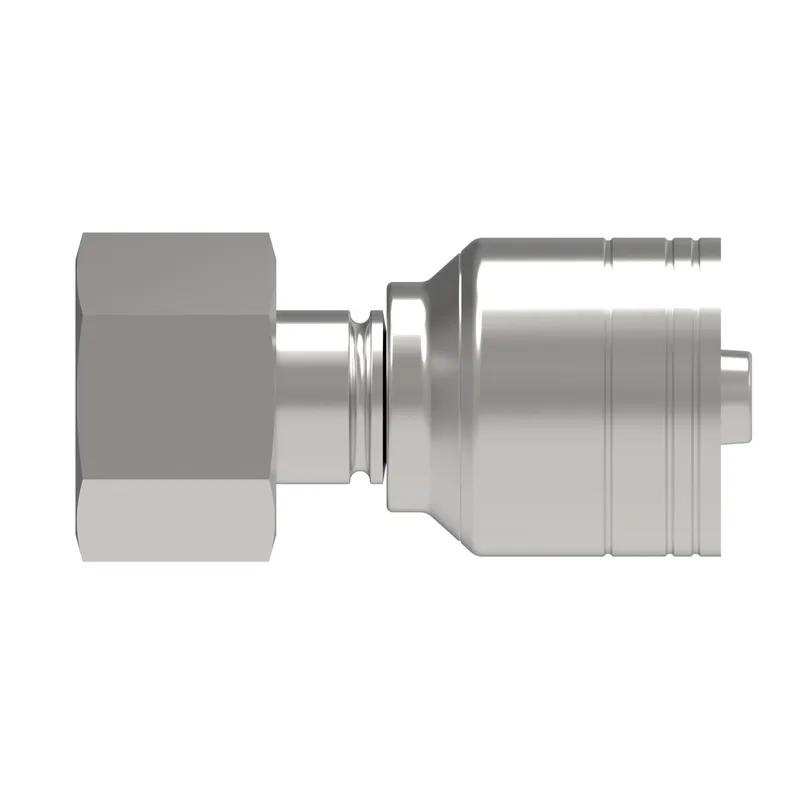

HOSE FTG, 1A/05, DKOL/10, CS, STR

MPN: 1A10DL5
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1A10DL5?

Danfoss HOSE FTG, 1A/05, DKOL/10, CS, STR, manufacturer part number 1A10DL5. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.000
A dimension MM	50.700
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.310
Compatible hose ID MM	7.900
Construction Style	Crimp
End connection torque	38-42 lb-ft(52-58 Nm)
End size 1	-10
End Type 1	24 deg. DKO swivel light duty
Finish plating	Dura-Kote
Hex size 1 IN	0.866
Hex size 1 MM	22.000
Hose cut off factor IN	1.060
Hose cut off factor MM	26.800
Hose size	-5
Inside diameter IN	0.210
Inside diameter MM	5.300
Product height in	1.000
Product height mm	25.400
Product length in	1.996
Product length mm	50.700
Product material	Carbon steel
Product width in	0.969
Product width mm	24.6
Proposition 65	Cancer and Reproductive Harm
Seal material	Nitrile (NBR)
Series	1A/Z Series
Thread sealant	No
Thread size 1	M18x1.5
Working pressure max BAR	250.00
Working pressure max PSI	3650.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
