Danfoss 1A10DL4

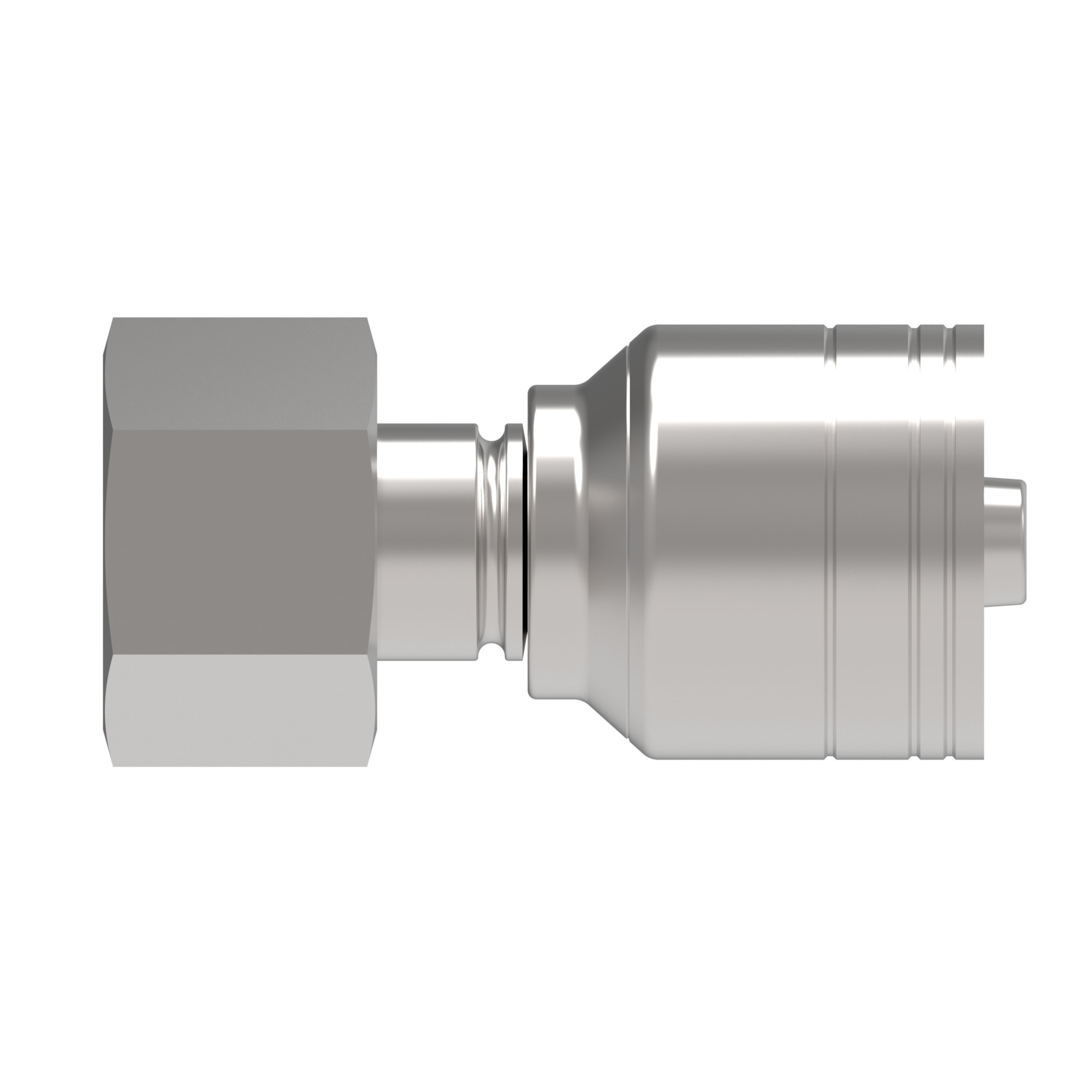

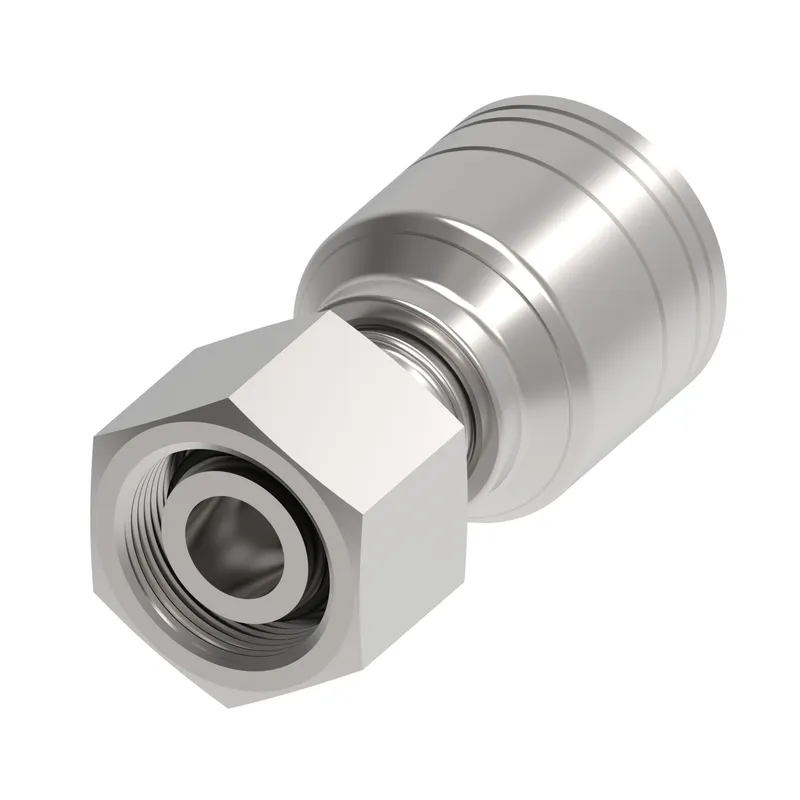

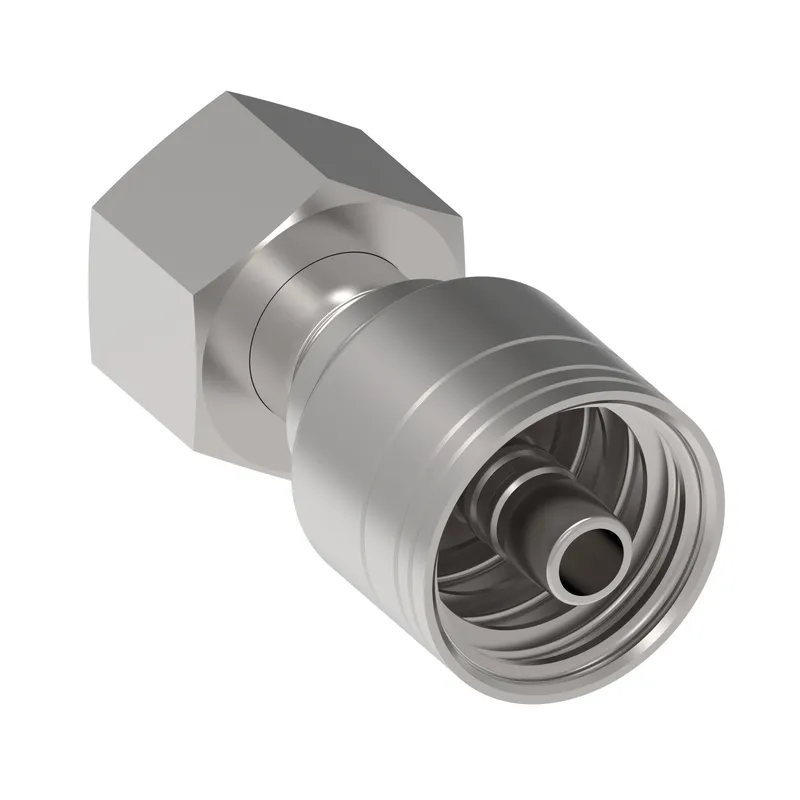

HOSE FTG, 1A/04, DKOL/10, CS, STR

MPN: 1A10DL4
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1A10DL4?

Danfoss HOSE FTG, 1A/04, DKOL/10, CS, STR, manufacturer part number 1A10DL4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.970
A dimension MM	50.000
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.400
Construction Style	Crimp
End connection torque	38-42 lb-ft(52-58 Nm)
End size 1	-10
End Type 1	24 deg. DKO swivel light duty
Finish plating	Dura-Kote
Hex size 1 IN	0.870
Hex size 1 MM	22.098
Hose cut off factor IN	1.050
Hose cut off factor MM	26.600
Hose size	-4
Inside diameter IN	0.170
Inside diameter MM	4.200
Product height in	0.870
Product height mm	22.098
Product length in	1.970
Product length mm	50.038
Product material	Carbon steel
Product width in	0.870
Product width mm	22.098
Proposition 65	Cancer and Reproductive Harm
Seal material	Nitrile (NBR)
Series	1A/Z Series
Thread sealant	No
Thread size 1	M18x1.5
Working pressure max BAR	250.00
Working pressure max PSI	3650.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
