ClimaSys CR Parts

Schneider Electric

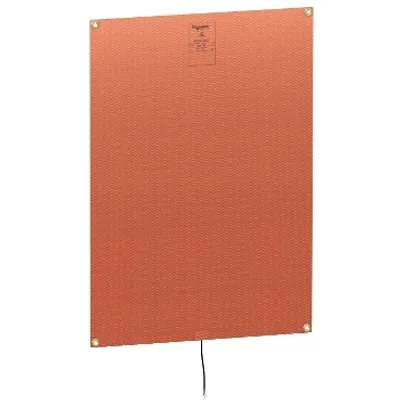

NSYCRS200W240V

Climasys Ultra thin resistance heater low starting current 195W 240V 400x650mm

Schneider Electric

NSYCRS100W240V

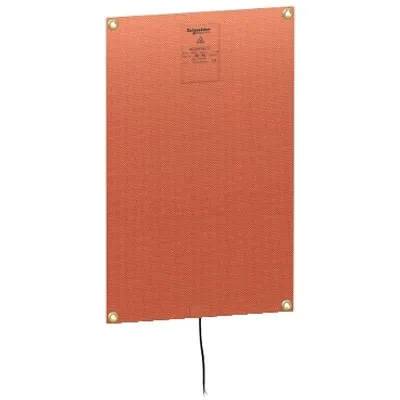

Climasys Ultra thin resistance heater low starting current 90W 240V 280x450mm

Schneider Electric

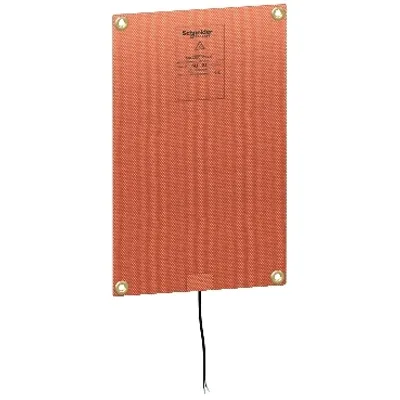

NSYCRS50W240V

Climasys Ultra thin resistance heater low starting current 50W 240V 200x320mm

Schneider Electric

NSYCRS25W240V

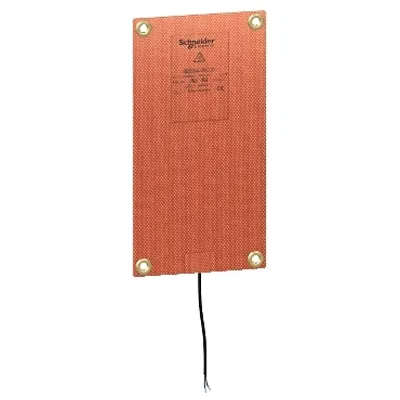

Climasys Ultra thin resistance heater low starting current 20W 240V 130x250mm

Schneider Electric

NSYCRS10W240V

Climasys Ultra thin resistance heater low starting current 12W 240V 110x140mm

Schneider Electric

NSYCRS200W230V

ClimaSys heating resistance 200W, 230V aluminium slim

Schneider Electric

NSYCR55WU3

ClimaSys PTC heating resistance 55W, 270-420V

Schneider Electric

NSYCR55WU2

ClimaSys PTC heating resistance 55W, 110-250V

Schneider Electric

NSYCR55WU1

ClimaSys PTC heating resistance 55W, 12-24V

Schneider Electric

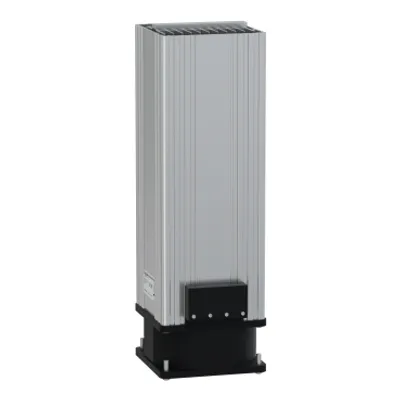

NSYCR400W230VV

ClimaSys heating resistance ventil. 400W 230V aluminium

Schneider Electric

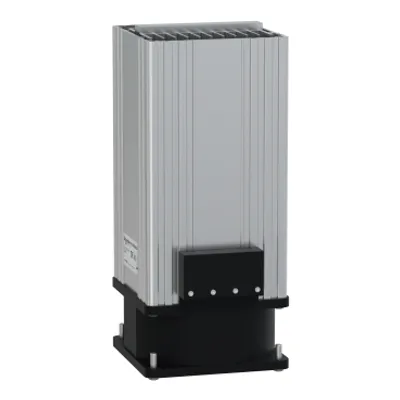

NSYCR250W230VV

ClimaSys heating resistance ventil.250W, 230V aluminium

Schneider Electric

NSYCR20WU3

ClimaSys PTC heating resistance 20W, 270-420V

Schneider Electric

NSYCR20WU2

ClimaSys PTC heating resistance 20W, 110-250V

Schneider Electric

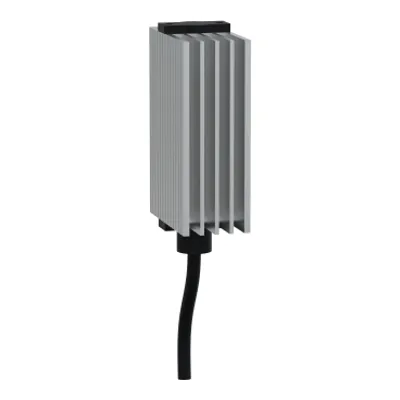

NSYCR20WU1

ClimaSys PTC heating resistance 20W, 12-24V

Schneider Electric

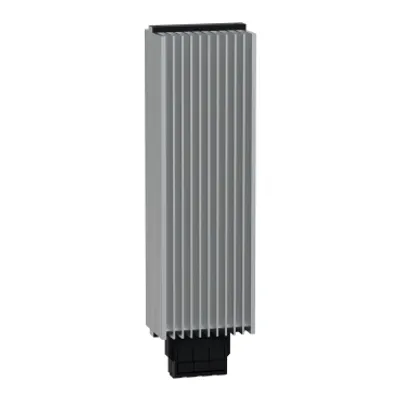

NSYCR150WU3

ClimaSys PTC heating resistance 150W,270-420V

Schneider Electric

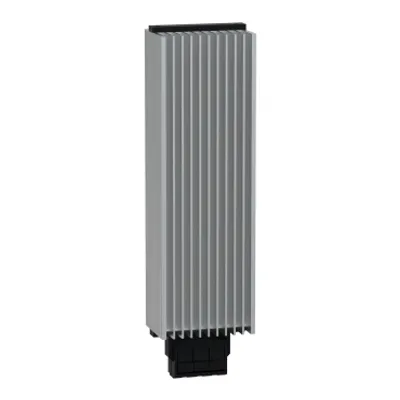

NSYCR150WU2

ClimaSys PTC heating resistance 150W,110-250V

Schneider Electric

NSYCR150WU1

ClimaSys PTC heating resistance 150W, 12-24V

Schneider Electric

NSYCR10WU2

ClimaSys PTC heating resistance 10W, 110-250V

Schneider Electric

NSYCR10WU1

ClimaSys PTC heating resistance 10W, 12-24V

Schneider Electric

NSYCR100WU3

ClimaSys PTC heating resistance 100W 270-420V

Schneider Electric

NSYCR100WU2

ClimaSys PTC heating resistance 100W 110-250V

Schneider Electric

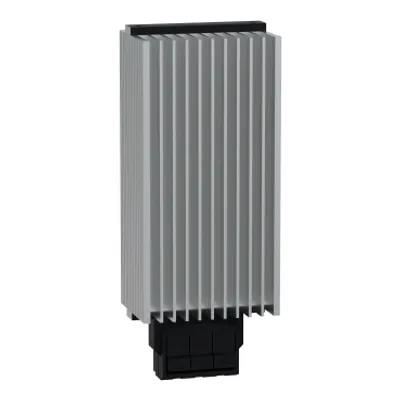

NSYCR100WU1

ClimaSys PTC heating resistance 100W, 12-24V

Schneider Electric

NSYCRP1W230VTVC

ClimaSys PTC heating resistance 350-500W, 230V insulate thermoventilator

Schneider Electric

NSYCRP1W120VTVC

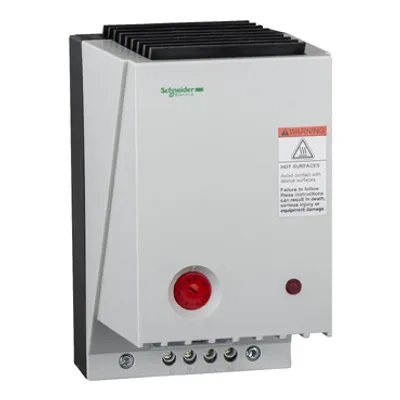

ClimaSys PTC heating resistance 350-550W, 120V insulate thermoventilator

Compare ClimaSys CR

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Power range	Input voltage	Height	Width	Depth
NSYCRS200W240V	195 W	240 V AC 50/60 Hz	External: 380 mm	External: 650 mm	External : 1.6 mm
NSYCRS100W240V	90 W	240 V AC 50/60 Hz	External: 260 mm	External: 440 mm	External : 1.6 mm
NSYCRS50W240V	50 W	240 V AC 50/60 Hz	External: 200 mm	External: 320 mm	External : 1.6 mm
NSYCRS25W240V	25 W	240 V AC 50/60 Hz	External: 110 mm	External: 230 mm	External : 1.6 mm
NSYCRS10W240V	12 W	240 V AC 50/60 Hz	External: 110 mm	External: 140 mm	External : 1.6 mm
NSYCRS200W230V	200 W	230 V AC 50/60 Hz	140 mm	80 mm	20 mm
NSYCR55WU3	55 W	270...420 V AC 50/60 Hz	210 mm	90 mm	70 mm
NSYCR55WU2	55 W	110...250 V AC 50/60 Hz	200 mm	85 mm	70 mm
NSYCR55WU1	55 W	12...24 V DC	—	—	—
NSYCR400W230VV	400 W	230 V AC 50/60 Hz	270 mm	105 mm	100 mm
NSYCR250W230VV	250 W	230 V AC 50/60 Hz	200 mm	100 mm	100 mm
NSYCR20WU3	20 W	270...420 V AC 50/60 Hz	135 mm	85 mm	70 mm
NSYCR20WU2	20 W	110...250 V AC 50/60 Hz	External: 85 mm	External: 25 mm	External : 57 mm
NSYCR20WU1	20 W	12...24 V DC	—	—	—
NSYCR150WU3	150 W	270...420 V AC 50/60 Hz	300 mm	90 mm	80 mm
NSYCR150WU2	150 W	110...250 V AC 50/60 Hz	285 mm	80 mm	70 mm
NSYCR150WU1	150 W	12...24 V DC	—	—	—
NSYCR10WU2	10 W	110...250 V AC 50/60 Hz	External: 85 mm	External: 25 mm	External : 57 mm
NSYCR10WU1	10 W	12...24 V DC	External: 85 mm	External: 25 mm	External : 57 mm
NSYCR100WU3	90 W	270...420 V AC 50/60 Hz	200 mm	80 mm	70 mm
NSYCR100WU2	90 W	110...250 V AC 50/60 Hz	200 mm	85 mm	65 mm
NSYCR100WU1	90 W	12...24 V DC	—	—	—
NSYCRP1W230VTVC	350 W, 500 W	230 V AC 50/60 Hz	150 mm	155 mm	215 mm
NSYCRP1W120VTVC	400...550 W	120 V AC 50/60 Hz	220 mm	150 mm	150 mm

Common to all listed parts

Range	ClimaSys
Product name	ClimaSys CR
