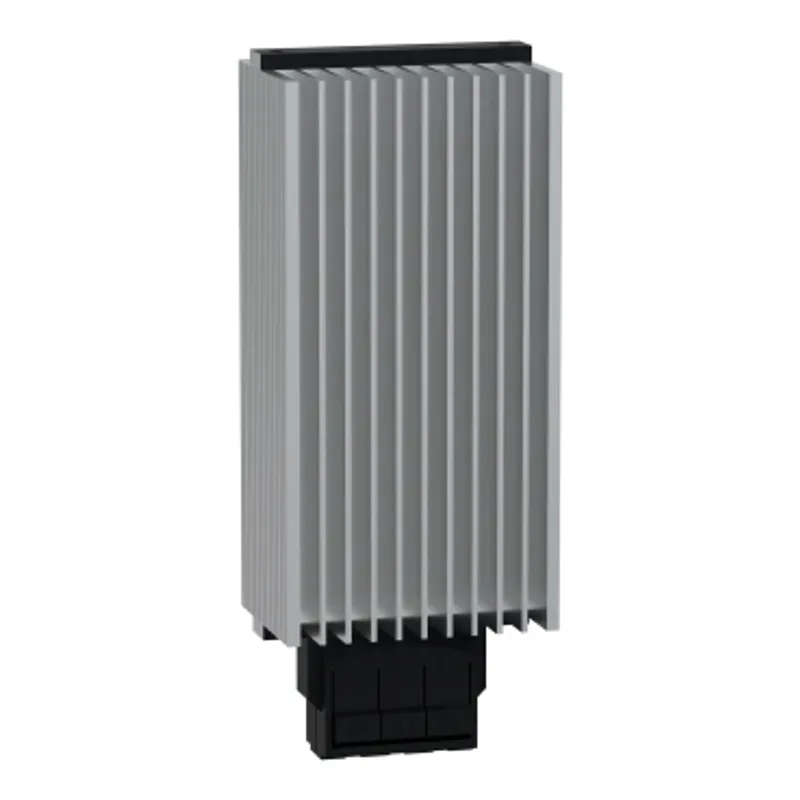

Schneider Electric NSYCR55WU1

ClimaSys PTC heating resistance 55W, 12-24V

MPN
NSYCR55WU1
EAN
3606480152153
Category
ClimaSys CR
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYCR55WU1?

Resistance heater 55W, 12,24 V DC for ClimaSys CR Thermal Management System The product has extruded aluminium body Fixing by clips in vertical operating position The product dimension (WxHxD) is 70 x 205 x 85mm The heaters must be installed with a thermal controller to control the temperature or the humidity inside the enclosure The enclosure must be sealed to prevent the entry of air from the outside An electrical protection device must be installed on the supply side of the unit Ingress protection rating IP20

Specifications

Specifications

RangeClimaSys
Product nameClimaSys CR
Product or component typeResistance heater
Power range55 W
Input voltage12...24 V DC
Operating positionVertical
Ambient air temperature for operation-40…70 °C
IP degree of protectionIP20
Product certificationsUL, VDE
MaterialBody: extruded aluminium
Condition of useAir sealed enclosure, Electrical protection is needed, Heaters must be installed with a thermal controller
fixing modeBy clips
Mounting support35 mm DIN rail

Packaging

Package 11 PCE, 20.000 cm × 8.000 cm × 6.000 cm (L × W × H), 324.000 g
Package 216 CAR, 43.000 cm × 34.000 cm × 16.500 cm (L × W × H), 5.184 kg
Package 3320 P12, 120.000 cm × 80.000 cm × 82.000 cm (L × W × H), 121.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYCR55WU1: frequently asked questions

When can NSYCR55WU1 be shipped?

NSYCR55WU1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYCR55WU1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYCR55WU1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCR55WU1, subject to availability and destination.
