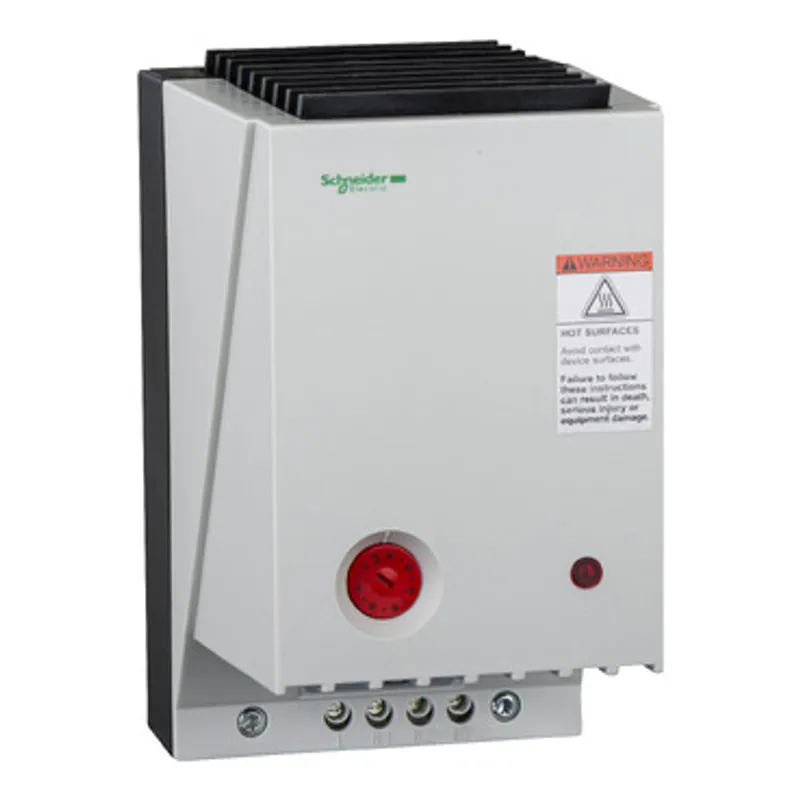

Schneider Electric NSYCRP1W120VTVC

ClimaSys PTC heating resistance 350-550W, 120V insulate thermoventilator

MPN
NSYCRP1W120VTVC
EAN
3606480152375
Category
ClimaSys CR
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYCRP1W120VTVC?

"Resistance heater with fan and thermostat 400,550W, 120 V AC 50/60 Hz for ClimaSys CR Thermal Management System" "The product is made from" "Fixing by clips in vertical operating position" The product width is 150mm, height is 220mm and depth is 150mm The temperature setting range is 0-60 °C The heaters must be installed with a thermal controller to control the temperature or the humidity inside the enclosure The enclosure must be sealed to prevent the entry of air from the outside An electrical protection device must be installed on the supply side of the unit The 2 screw terminals 2,5 mm² are used for electrical connection Ingress protection rating IP20 Ambient air temperature for operation -40-70 °C Conforms with UL and VDE certification "This product is qualified as a green premium, with minimal use of hazardous substances"

Specifications

Specifications

RangeClimaSys
Product nameClimaSys CR
Product or component typeResistance heater with fan and thermostat
Power range400...550 W
Input voltage120 V AC 50/60 Hz
Electrical connection2 screw terminals 2.5 mm²
Operating positionVertical
Ambient air temperature for operation-40…70 °C
Temperature setting range0…60 °C
IP degree of protectionIP20
Product certificationsUL, VDE
Height220 mm
Width150 mm
Depth150 mm
Condition of useElectrical protection is needed, Heaters must be installed with a thermal controller, Air sealed enclosure
fixing modeBy clips
Mounting support35 mm DIN rail

Packaging

Package 11 PCE, 15.000 cm × 15.000 cm × 22.000 cm (L × W × H), 1.020 kg
Package 210 CAR, 59.000 cm × 40.000 cm × 32.000 cm (L × W × H), 10.820 kg
Package 380 P12, 120.000 cm × 80.000 cm × 81.000 cm (L × W × H), 101.800 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYCRP1W120VTVC: frequently asked questions

When can NSYCRP1W120VTVC be shipped?

NSYCRP1W120VTVC is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYCRP1W120VTVC in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYCRP1W120VTVC and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCRP1W120VTVC, subject to availability and destination.

More Schneider Electric parts

Schneider Electric NSYCRN88200P – PanelSeT CRN plain door with mount.plate. H800xW800xD200 IP66 IK10 RAL7035..
Schneider Electric
NSYCRN88200P

PanelSeT CRN plain door with mount.plate. H800xW800xD200 IP66 IK10 RAL7035..

Schneider Electric NSYCRN88300 – PanelSeT CRN plain door w/o mount.plate. H800xW800xD300 IP66 IK10 RAL7035..
Schneider Electric
NSYCRN88300

PanelSeT CRN plain door w/o mount.plate. H800xW800xD300 IP66 IK10 RAL7035..

Schneider Electric NSYCRN88300P – PanelSeT CRN plain door with mount.plate. H800xW800xD300 IP66 IK10 RAL7035..
Schneider Electric
NSYCRN88300P

PanelSeT CRN plain door with mount.plate. H800xW800xD300 IP66 IK10 RAL7035..

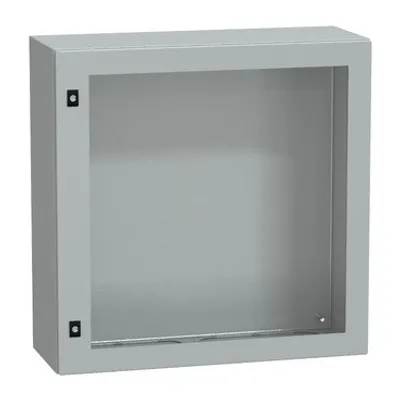

Schneider Electric NSYCRN88300T – PanelSeT CRN tspt door w/o mount.plate. H800xW800xD300 IP66 IK08 RAL7035
