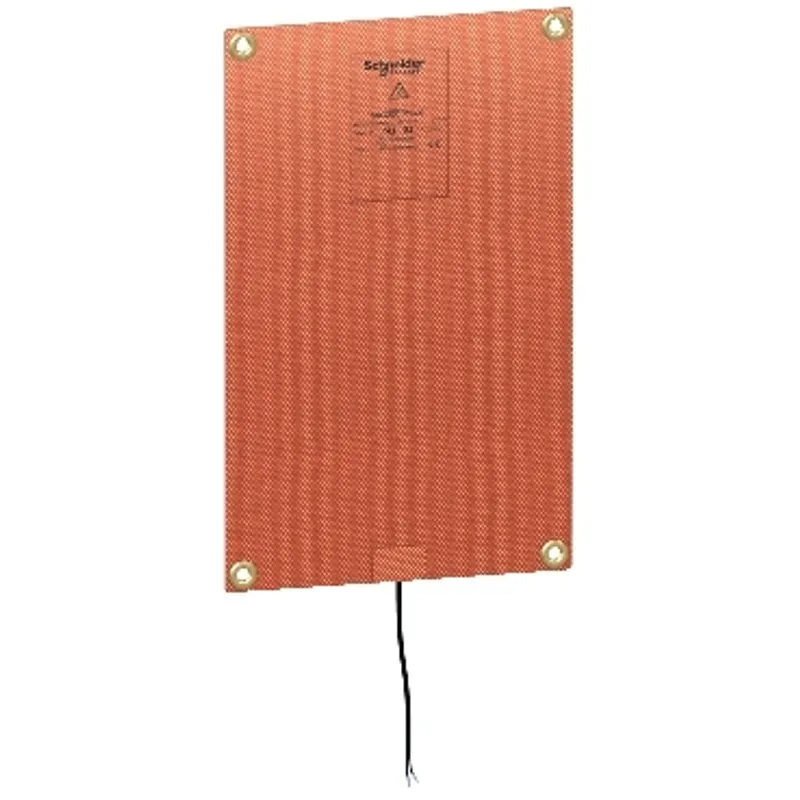

Climasys Ultra thin resistance heater low starting current 50W 240V 200x320mm
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ClimaSys CR |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 440 kg |
Shipping & availability
When can NSYCRS50W240V be shipped?
NSYCRS50W240V is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCRS50W240V in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCRS50W240V and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCRS50W240V, subject to availability and destination.
Schneider Electric Climasys Ultra thin resistance heater low starting current 50W 240V 200x320mm, manufacturer part number NSYCRS50W240V. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CR |
| Product or component type | Ultra thin resistance heater |
| Power range | 50 W |
| Input voltage | 240 V AC 50/60 Hz |
| Electrical connection | Cable length: 2 m |
| Operating position | Vertical, Horizontal |
| Ambient air temperature for operation | -60…70 °C |
| Temperature setting range | -40…70 °C |
| Material | Silicone rubber |
| Height | External: 200 mm |
| Width | External: 320 mm |
| Depth | External : 1.6 mm |
| Device composition | 6 self-adhesive Velcro pads, 6 plastic spacers, 4 Telequick nuts, 4 clip-on nuts, fixing accessories |
| Condition of use | Heaters must be installed with a thermal controller, Electrical protection is needed, Air sealed enclosure |
| fixing mode | By 4 screws |
| Mounting support | Telequick mounting plate, DIN rail, Adhesive Velcro, Standard mounting plate |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.000 cm |
| Package 1 Width | 32.500 cm |
| Package 1 Length | 35.000 cm |
| Package 1 Weight | 440.000 g |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 96 |
| Package 2 Height | 116.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 58.000 kg |
| Warranty | 18 months |
