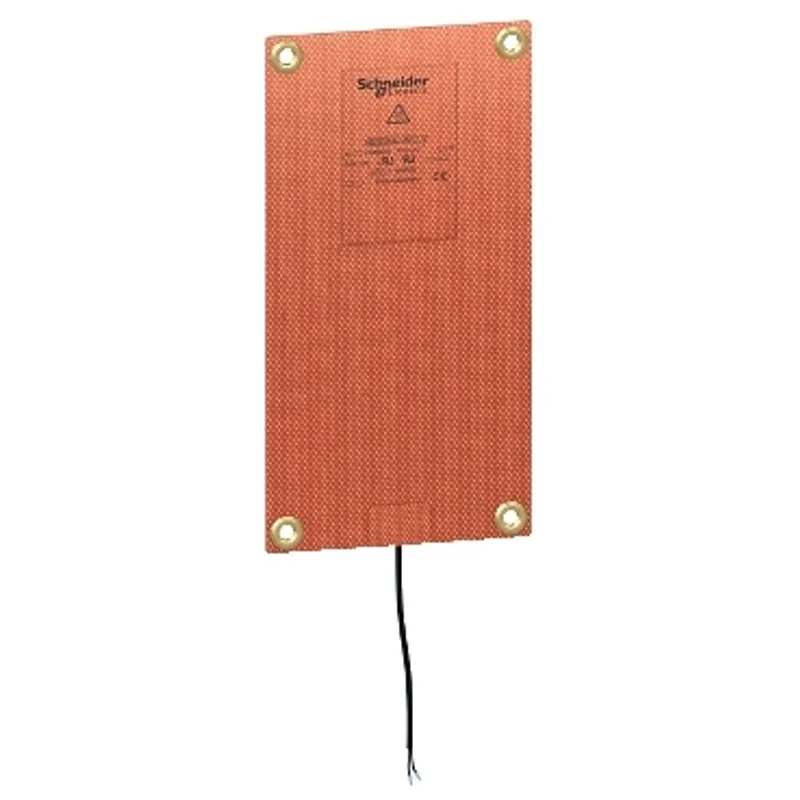

Schneider Electric NSYCRS10W240V

Climasys Ultra thin resistance heater low starting current 12W 240V 110x140mm

MPN
NSYCRS10W240V
EAN
3606480530128
Category
ClimaSys CR
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYCRS10W240V?

"Ultra thin resistance heater 12W, 240 V AC 50/60 Hz for ClimaSys CR Thermal Management System" "The product is made from silicone rubber" "Fixing by 4 screws in vertical and horizontal operating position" The product width is 140mm, height is 110mm and depth is 1,6mm The temperature setting range is -40-70 °C The heaters must be installed with a thermal controller to control the temperature or the humidity inside the enclosure The enclosure must be sealed to prevent the entry of air from the outside An electrical protection device must be installed on the supply side of the unit The cable 2 m length is used for electrical connection Ambient air temperature for operation -60-70 °C "This product is qualified as a green premium, with minimal use of hazardous substances"

Specifications

Specifications

RangeClimaSys
Product nameClimaSys CR
Product or component typeUltra thin resistance heater
Power range12 W
Input voltage240 V AC 50/60 Hz
Electrical connectionCable length: 2 m
Operating positionVertical, Horizontal
Ambient air temperature for operation-60…70 °C
Temperature setting range-40…70 °C
MaterialSilicone rubber
HeightExternal: 110 mm
WidthExternal: 140 mm
DepthExternal : 1.6 mm
Device composition6 self-adhesive Velcro pads, 6 plastic spacers, 4 Telequick nuts, 4 clip-on nuts, fixing accessories
Condition of useElectrical protection is needed, Heaters must be installed with a thermal controller, Air sealed enclosure
fixing modeBy 4 screws
Mounting supportStandard mounting plate, Adhesive Velcro, DIN rail, Telequick mounting plate

Packaging

Package 11 PCE, 28.500 cm × 25.500 cm × 5.000 cm (L × W × H), 280.000 g
Package 2440 PAM, 120.000 cm × 100.000 cm × 172.000 cm (L × W × H), 137.000 kg
