Schneider Electric NSYCR55WU2

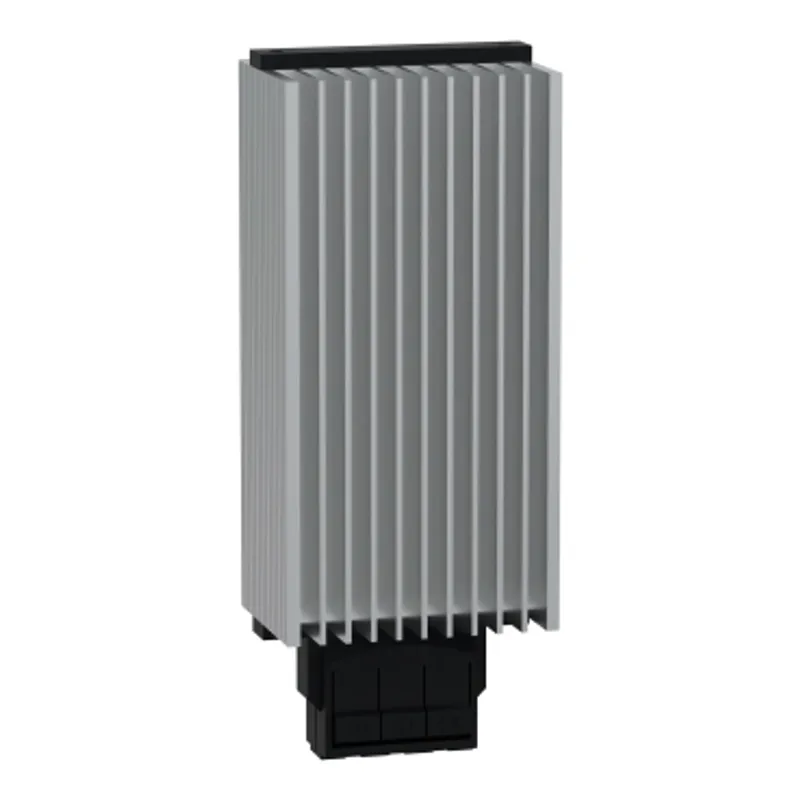

ClimaSys PTC heating resistance 55W, 110-250V
- MPN
- NSYCR55WU2
- EAN
- 3606480152160
- Category
- ClimaSys CR
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric NSYCR55WU2?
Resistance heater 55W, 110,250 V AC 50/60 Hz for ClimaSys CR Thermal Management System The product has extruded aluminium body Fixing by clips in vertical operating position The product width is 85mm, height is 200mm and depth is 70mm The heaters must be installed with a thermal controller to control the temperature or the humidity inside the enclosure The enclosure must be sealed to prevent the entry of air from the outside An electrical protection device must be installed on the supply side of the unit
Specifications
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CR |
| Product or component type | Resistance heater |
| Range compatibility | Prisma P, Prisma G |
| Power range | 55 W |
| Input voltage | 110...250 V AC 50/60 Hz |
| Operating position | Vertical |
| Ambient air temperature for operation | -40…70 °C |
| IP degree of protection | IP20 |
| Product certifications | UL, VDE |
| Material | Body: extruded aluminium |
| Height | 200 mm |
| Width | 85 mm |
| Depth | 70 mm |
| Condition of use | Air sealed enclosure, Heaters must be installed with a thermal controller, Electrical protection is needed |
| fixing mode | By clips |
| Mounting support | 35 mm DIN rail |
Packaging
| Package 1 | 1 PCE, 20.500 cm × 8.000 cm × 7.000 cm (L × W × H), 544.000 g |
| Package 2 | 16 CAR, 16.000 cm × 34.000 cm × 42.000 cm (L × W × H), 9.160 kg |
| Package 3 | 480 P12, 120.000 cm × 80.000 cm × 93.000 cm (L × W × H), 288.500 kg |
