NSYCRP1W230VTVCClimaSys PTC heating resistance 350-500W, 230V insulate thermoventilator
Schneider Electric NSYCRS200W240V

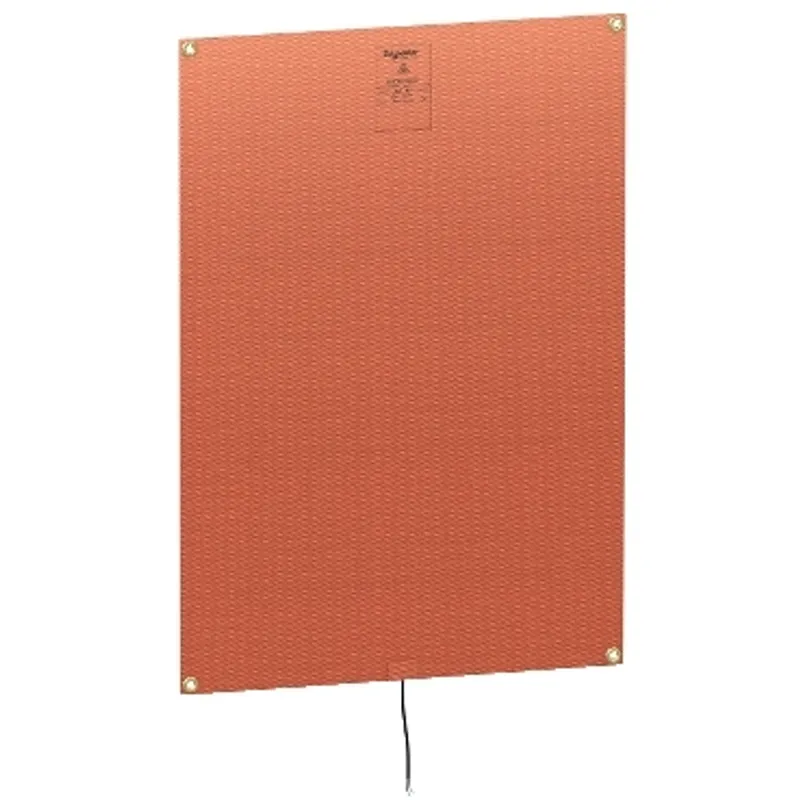

Climasys Ultra thin resistance heater low starting current 195W 240V 400x650mm
- MPN
- NSYCRS200W240V
- EAN
- 3606480530203
- Category
- ClimaSys CR
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYCRS200W240V?
"Ultra thin resistance heater 195W, 240 V AC 50/60 Hz for ClimaSys CR Thermal Management System" "The product is made from silicone rubber" "Fixing by 4 screws in horizontal and vertical operating position" The product width is 650mm, height is 380mm and depth is 1,6mm The temperature setting range is -40-70 °C The heaters must be installed with a thermal controller to control the temperature or the humidity inside the enclosure The enclosure must be sealed to prevent the entry of air from the outside An electrical protection device must be installed on the supply side of the unit The cable 2 m length is used for electrical connection Ambient air temperature for operation -60-70 °C "This product is qualified as a green premium, with minimal use of hazardous substances"
Specifications
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CR |
| Product or component type | Ultra thin resistance heater |
| Power range | 195 W |
| Input voltage | 240 V AC 50/60 Hz |
| Electrical connection | Cable length: 2 m |
| Operating position | Horizontal, Vertical |
| Ambient air temperature for operation | -60…70 °C |
| Temperature setting range | -40…70 °C |
| Material | Silicone rubber |
| Height | External: 380 mm |
| Width | External: 650 mm |
| Depth | External : 1.6 mm |
| Device composition | 6 self-adhesive Velcro pads, 6 plastic spacers, 4 Telequick nuts, 4 clip-on nuts, fixing accessories |
| Condition of use | Air sealed enclosure, Heaters must be installed with a thermal controller, Electrical protection is needed |
| fixing mode | By 4 screws |
| Mounting support | Adhesive Velcro, Telequick mounting plate, Standard mounting plate, DIN rail |
Packaging
| Package 1 | 1 PCE, 69.500 cm × 43.000 cm × 4.500 cm (L × W × H), 1.130 kg |
| Package 2 | 60 P12, 120.000 cm × 80.000 cm × 173.000 cm (L × W × H), 89.300 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYCRS200W240V: frequently asked questions
When can NSYCRS200W240V be shipped?
NSYCRS200W240V is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCRS200W240V in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCRS200W240V and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCRS200W240V, subject to availability and destination.
