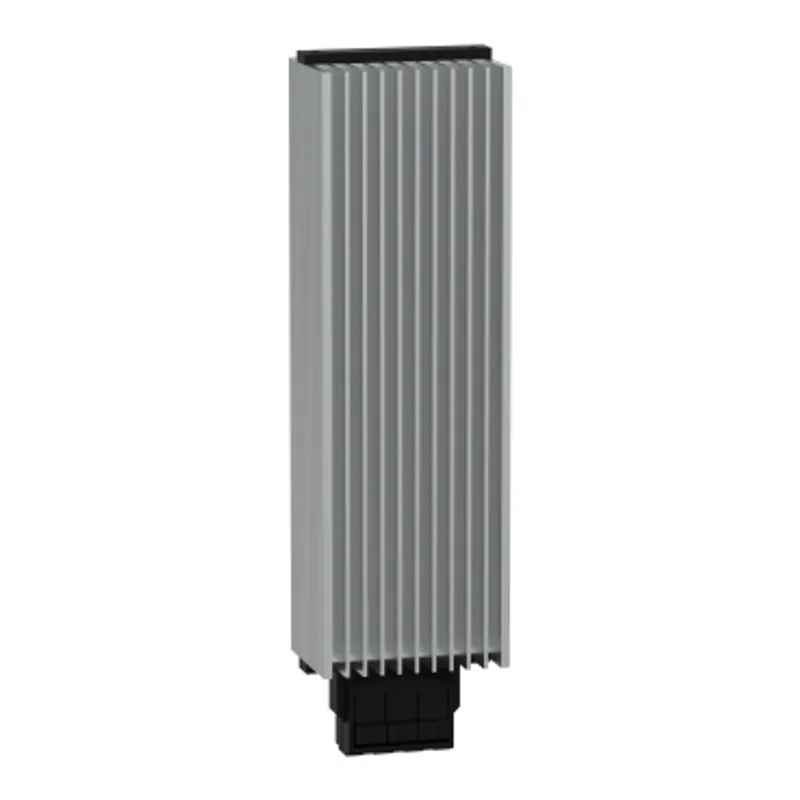

Schneider Electric NSYCR150WU2
ClimaSys PTC heating resistance 150W,110-250V
- MPN
- NSYCR150WU2
- EAN
- 3606480152221
- Category
- ClimaSys CR
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYCR150WU2?
Resistance heater 150W, 110,250 V AC 50/60 Hz for ClimaSys CR Thermal Management System The product has extruded aluminium body Fixing by clips in vertical operating position The product width is 80mm, height is 285mm and depth is 70mm The heaters must be installed with a thermal controller to control the temperature or the humidity inside the enclosure The enclosure must be sealed to prevent the entry of air from the outside An electrical protection device must be installed on the supply side of the unit
Specifications
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CR |
| Product or component type | Resistance heater |
| Power range | 150 W |
| Input voltage | 110...250 V AC 50/60 Hz |
| Operating position | Vertical |
| Ambient air temperature for operation | -40…70 °C |
| IP degree of protection | IP20 |
| Product certifications | VDE, UL |
| Material | Body: extruded aluminium |
| Height | 285 mm |
| Width | 80 mm |
| Depth | 70 mm |
| Condition of use | Heaters must be installed with a thermal controller, Air sealed enclosure, Electrical protection is needed |
| fixing mode | By clips |
| Mounting support | 35 mm DIN rail |
Packaging
| Package 1 | 1 PCE, 28.500 cm × 8.000 cm × 7.000 cm (L × W × H), 805.000 g |
| Package 2 | 12 CAR, 58.000 cm × 26.000 cm × 15.500 cm (L × W × H), 10.560 kg |
| Package 3 | 360 P12, 120.000 cm × 80.000 cm × 120.000 cm (L × W × H), 330.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYCR150WU2: frequently asked questions
When can NSYCR150WU2 be shipped?
NSYCR150WU2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCR150WU2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCR150WU2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCR150WU2, subject to availability and destination.
