Schneider Electric NSYCR10WU2

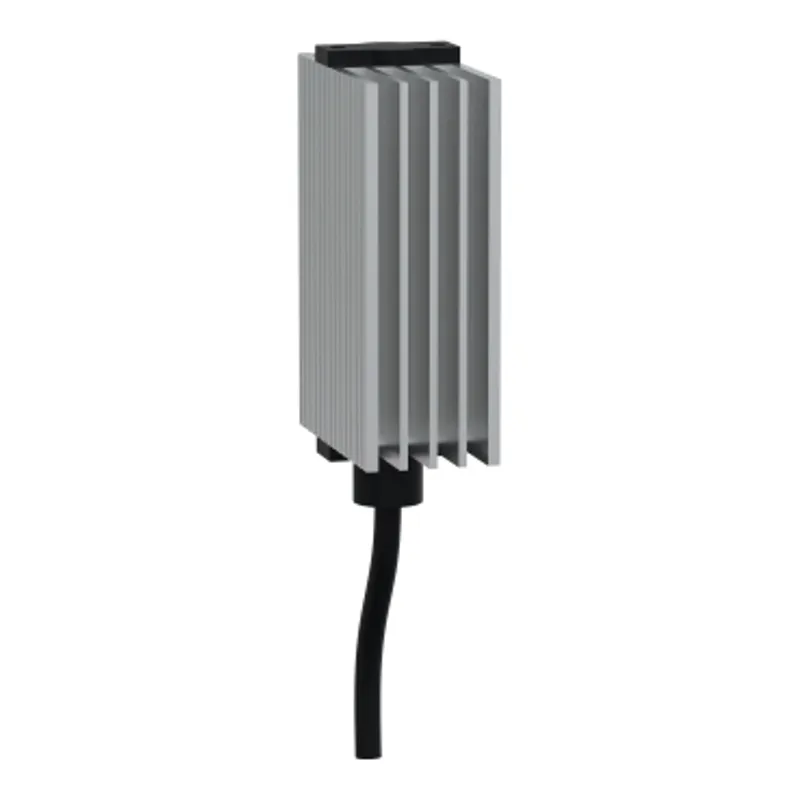

ClimaSys PTC heating resistance 10W, 110-250V
- MPN
- NSYCR10WU2
- EAN
- 3606480152115
- Category
- ClimaSys CR
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYCR10WU2?
Resistance heater 10W, 110,250 V AC 50/60 Hz for ClimaSys CR Thermal Management System The product has extruded aluminium body Fixing by clips in vertical operating position The product width is 25mm, height is 85mm and depth is 57mm The heaters must be installed with a thermal controller to control the temperature or the humidity inside the enclosure The enclosure must be sealed to prevent the entry of air from the outside An electrical protection device must be installed on the supply side of the unit
Specifications
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CR |
| Product or component type | Resistance heater |
| Power range | 10 W |
| Input voltage | 110...250 V AC 50/60 Hz |
| Electrical connection | Cable 2 x 0.75 mm² length: 300 mm |
| Operating position | Vertical |
| Ambient air temperature for operation | -40…70 °C |
| IP degree of protection | IP20 |
| Product certifications | UL, VDE |
| Material | Body: extruded aluminium |
| Height | External: 85 mm |
| Width | External: 25 mm |
| Depth | External : 57 mm |
| Condition of use | Heaters must be installed with a thermal controller, Electrical protection is needed, Air sealed enclosure |
| fixing mode | By clips |
| Mounting support | 35 mm DIN rail |
Packaging
| Package 1 | 1 PCE, 7.000 cm × 8.000 cm × 8.000 cm (L × W × H), 142.000 g |
| Package 2 | 105 CAR, 56.500 cm × 26.000 cm × 38.000 cm (L × W × H), 14.910 kg |
| Package 3 | 1260 P12, 120.000 cm × 80.000 cm × 70.000 cm (L × W × H), 189.200 kg |
