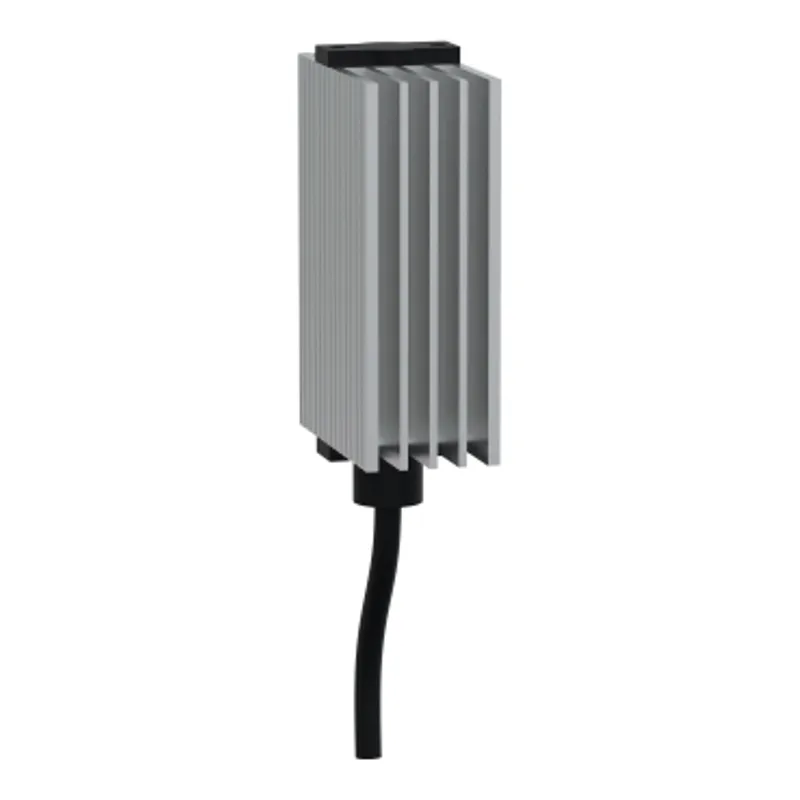

Schneider Electric NSYCR10WU1
ClimaSys PTC heating resistance 10W, 12-24V
- MPN
- NSYCR10WU1
- EAN
- 3606480152108
- Category
- ClimaSys CR
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYCR10WU1?
Resistance heater 10W, 12,24 V DC for ClimaSys CR Thermal Management System The product has extruded aluminium body Fixing by clips in vertical operating position The product width is 25mm, height is 85mm and depth is 57mm The heaters must be installed with a thermal controller to control the temperature or the humidity inside the enclosure The enclosure must be sealed to prevent the entry of air from the outside An electrical protection device must be installed on the supply side of the unit
Specifications
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CR |
| Product or component type | Resistance heater |
| Power range | 10 W |
| Input voltage | 12...24 V DC |
| Electrical connection | Cable 2 x 0.75 mm² length: 300 mm |
| Operating position | Vertical |
| Ambient air temperature for operation | -40…70 °C |
| IP degree of protection | IP20 |
| Product certifications | UL, VDE |
| Material | Body: extruded aluminium |
| Height | External: 85 mm |
| Width | External: 25 mm |
| Depth | External : 57 mm |
| Condition of use | Electrical protection is needed, Air sealed enclosure, Heaters must be installed with a thermal controller |
| fixing mode | By clips |
| Mounting support | 35 mm DIN rail |
Packaging
| Package 1 | 1 PCE, 6.500 cm × 8.000 cm × 13.000 cm (L × W × H), 120.000 g |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYCR10WU1: frequently asked questions
When can NSYCR10WU1 be shipped?
NSYCR10WU1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCR10WU1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCR10WU1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCR10WU1, subject to availability and destination.
