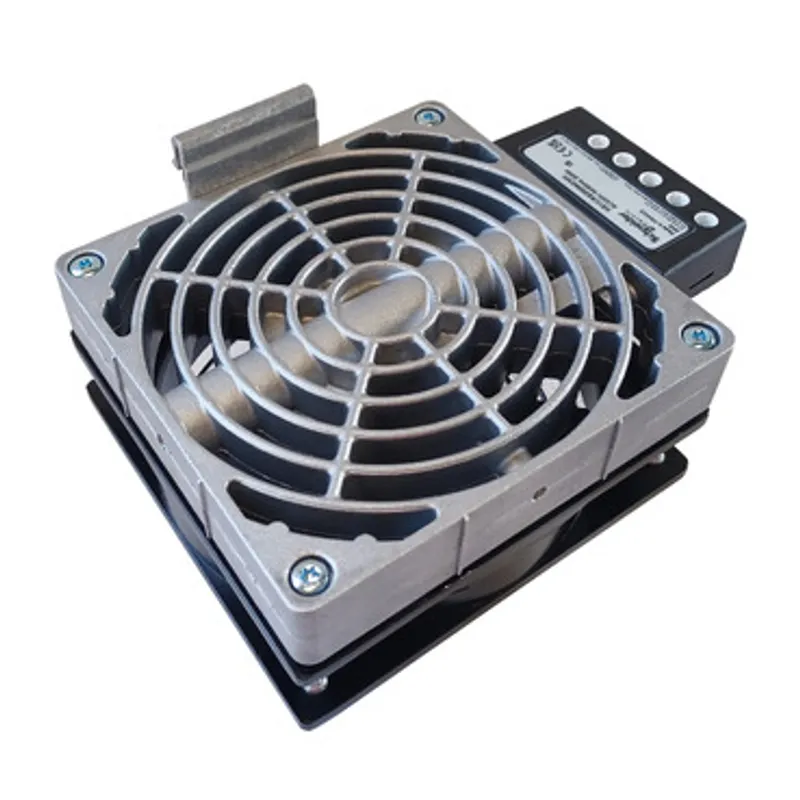

Schneider Electric NSYCRS200W230V
ClimaSys heating resistance 200W, 230V aluminium slim
- MPN
- NSYCRS200W230V
- EAN
- 3606480152412
- Category
- ClimaSys CR
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYCRS200W230V?
"Resistance heater with fan 200W, 230 V AC 50/60 Hz for ClimaSys CR Thermal Management System" "The product has extruded aluminium body" "Fixing by clips in vertical operating position" The product width is 80mm, height is 140mm and depth is 20mm The heaters must be installed with a thermal controller to control the temperature or the humidity inside the enclosure The enclosure must be sealed to prevent the entry of air from the outside An electrical protection device must be installed on the supply side of the unit Ingress protection rating IP20 Ambient air temperature for operation -40-70 °C Conforms with UL and VDE certification "This product is qualified as a green premium, with minimal use of hazardous substances"
Specifications
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CR |
| Product or component type | Resistance heater with fan |
| Power range | 200 W |
| Input voltage | 230 V AC 50/60 Hz |
| Operating position | Vertical |
| Ambient air temperature for operation | -40…70 °C |
| IP degree of protection | IP20 |
| Product certifications | UL, VDE |
| Material | Body: extruded aluminium |
| Height | 140 mm |
| Width | 80 mm |
| Depth | 20 mm |
| Condition of use | Electrical protection is needed, Heaters must be installed with a thermal controller, Air sealed enclosure |
| fixing mode | By clips |
| Mounting support | 35 mm DIN rail |
Packaging
| Package 1 | 1 PCE, 2.000 cm × 8.000 cm × 14.000 cm (L × W × H), 924.000 g |
| Package 2 | 20 CAR, 59.500 cm × 39.500 cm × 31.000 cm (L × W × H), 19.822 kg |
| Package 3 | 400 PAM, 120.000 cm × 100.000 cm × 140.000 cm (L × W × H), 409.440 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYCRS200W230V: frequently asked questions
When can NSYCRS200W230V be shipped?
NSYCRS200W230V is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCRS200W230V in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCRS200W230V and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCRS200W230V, subject to availability and destination.
