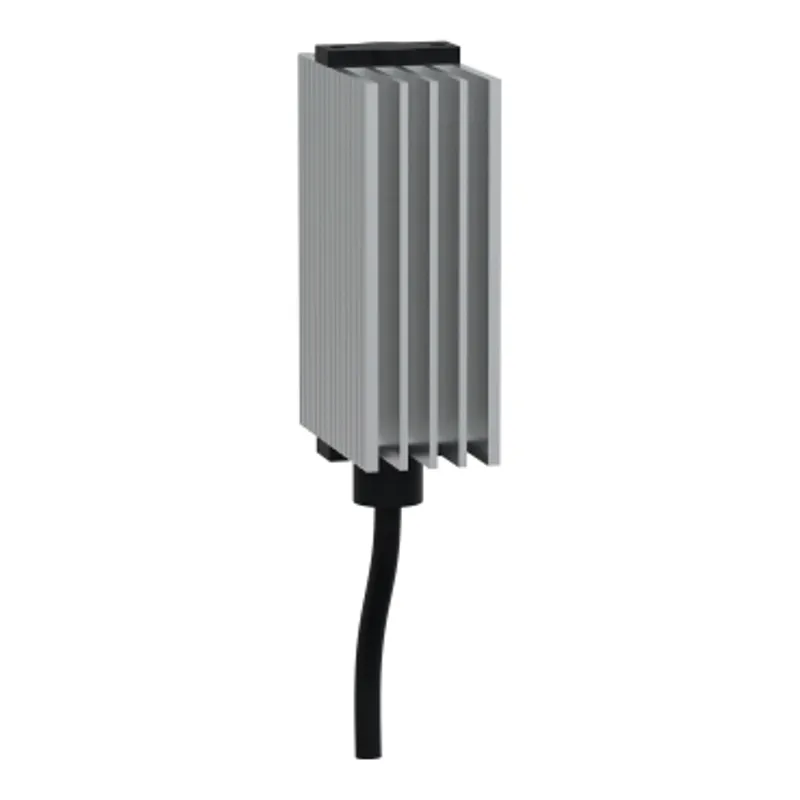

ClimaSys PTC heating resistance 20W, 110-250V
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ClimaSys CR |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 160 kg |
Shipping & availability
When can NSYCR20WU2 be shipped?
NSYCR20WU2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCR20WU2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCR20WU2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCR20WU2, subject to availability and destination.
Resistance heater 20W, 110,250 V AC 50/60 Hz for ClimaSys CR Thermal Management System The product has extruded aluminium body Fixing by clips in vertical operating position The product width is 25mm, height is 85mm and depth is 57mm The heaters must be installed with a thermal controller to control the temperature or the humidity inside the enclosure The enclosure must be sealed to prevent the entry of air from the outside An electrical protection device must be installed on the supply side of the unit
Specifications
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CR |
| Product or component type | Resistance heater |
| Power range | 20 W |
| Input voltage | 110...250 V AC 50/60 Hz |
| Electrical connection | Cable 2 x 0.75 mm² length: 300 mm |
| Operating position | Vertical |
| Ambient air temperature for operation | -40…70 °C |
| IP degree of protection | IP20 |
| Product certifications | UL, VDE |
| Material | Body: extruded aluminium |
| Height | External: 85 mm |
| Width | External: 25 mm |
| Depth | External : 57 mm |
| Condition of use | Air sealed enclosure, Heaters must be installed with a thermal controller, Electrical protection is needed |
| fixing mode | By clips |
| Mounting support | 35 mm DIN rail |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.500 cm |
| Package 1 Width | 8.000 cm |
| Package 1 Length | 11.000 cm |
| Package 1 Weight | 160.000 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 75 |
| Package 2 Height | 57.000 cm |
| Package 2 Width | 37.500 cm |
| Package 2 Length | 25.500 cm |
| Package 2 Weight | 13.176 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 900 |
| Package 3 Height | 88.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 173.000 kg |
| Warranty | 18 months |
More Schneider Electric parts
Available on requestClimaSys PTC heating resistance 150W,270-420V

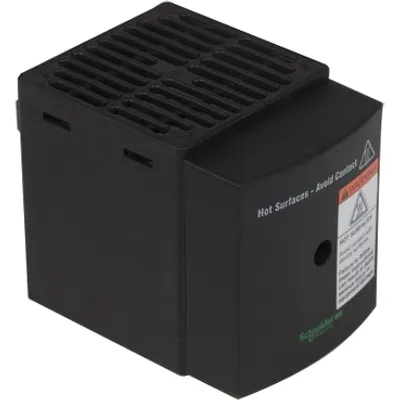

Available on requestClimaSys PTC heating resistance 177W 230V with ventilator insulate
Available on requestClimaSys PTC heating resistance 20W, 12-24V

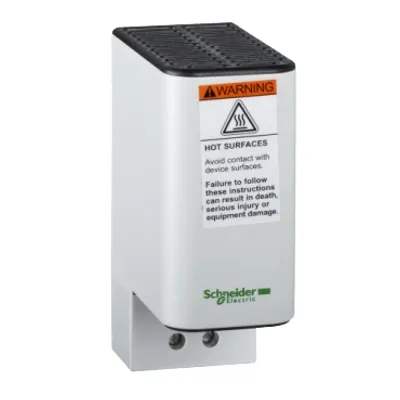

Available on requestClimaSys PTC heating resistance 20W, 12-24V insulate

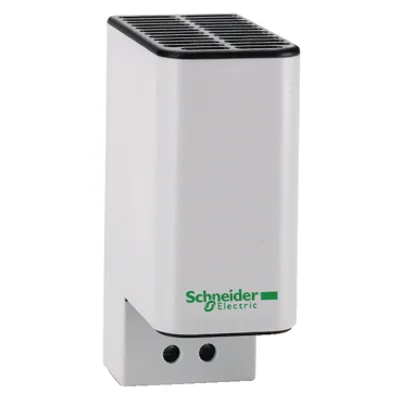

Available on requestClimaSys PTC heating resistance 20W,110-250V insulate
