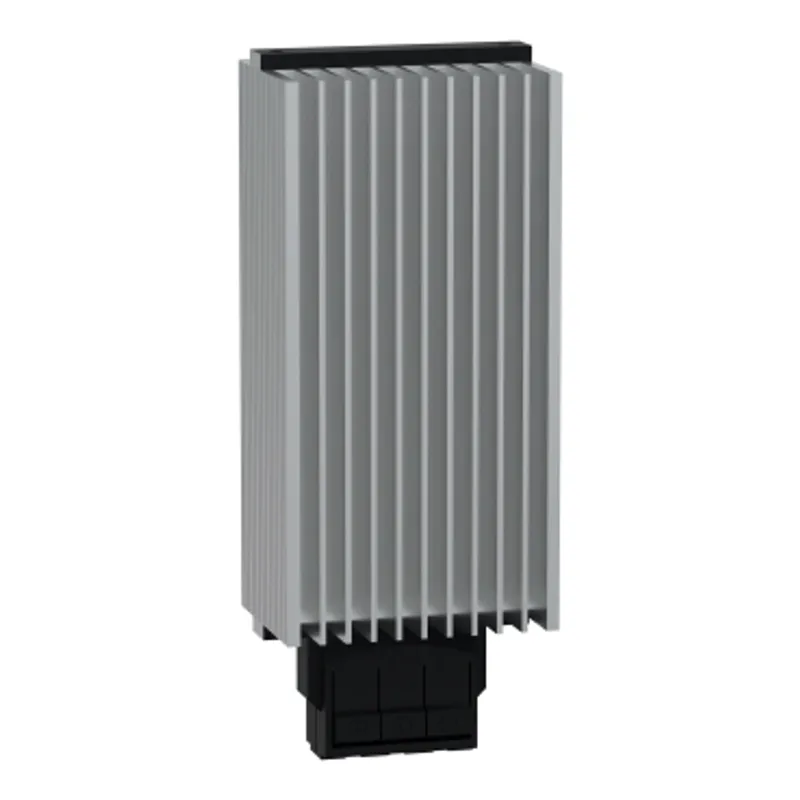

Schneider Electric NSYCR100WU3
ClimaSys PTC heating resistance 100W 270-420V
- MPN
- NSYCR100WU3
- EAN
- 3606480152207
- Category
- ClimaSys CR
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYCR100WU3?
"Resistance heater 90W, 270,420 V AC 50/60 Hz for ClimaSys CR Thermal Management System" "The product has extruded aluminium body" "Fixing by clips in vertical operating position" The product width is 80mm, height is 200mm and depth is 70mm The heaters must be installed with a thermal controller to control the temperature or the humidity inside the enclosure The enclosure must be sealed to prevent the entry of air from the outside An electrical protection device must be installed on the supply side of the unit Ingress protection rating IP20 Ambient air temperature for operation -40-70 °C Conforms with VDE and UL certification "This product is qualified as a green premium, with minimal use of hazardous substances"
Specifications
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CR |
| Product or component type | Resistance heater |
| Power range | 90 W |
| Input voltage | 270...420 V AC 50/60 Hz |
| Operating position | Vertical |
| Ambient air temperature for operation | -40…70 °C |
| IP degree of protection | IP20 |
| Product certifications | VDE, UL |
| Material | Body: extruded aluminium |
| Height | 200 mm |
| Width | 80 mm |
| Depth | 70 mm |
| Condition of use | Electrical protection is needed, Heaters must be installed with a thermal controller, Air sealed enclosure |
| fixing mode | By clips |
| Mounting support | 35 mm DIN rail |
Packaging
| Package 1 | 1 PCE, 20.000 cm × 8.000 cm × 7.000 cm (L × W × H), 486.000 g |
| Package 2 | 16 CAR, 42.000 cm × 33.000 cm × 16.000 cm (L × W × H), 9.250 kg |
| Package 3 | 480 P12, 120.000 cm × 80.000 cm × 76.000 cm (L × W × H), 298.500 kg |
