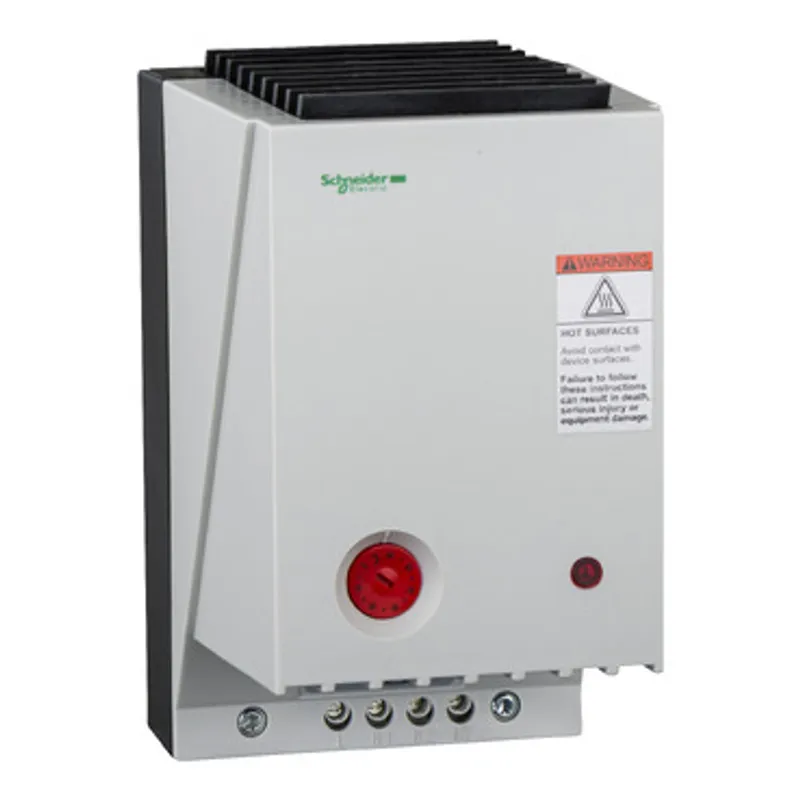

Schneider Electric NSYCRP1W230VTVC

ClimaSys PTC heating resistance 350-500W, 230V insulate thermoventilator

MPN
NSYCRP1W230VTVC
EAN
3606480152382
Category
ClimaSys CR
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYCRP1W230VTVC?

Resistance heater with fan and thermostat 400,550W, 230 V AC 50/60 Hz for ClimaSys CR Thermal Management System The product is made from Fixing by clips in vertical operating position The product width is 155mm, height is 150mm and depth is 215mm The temperature setting range is 0-60 °C The heaters must be installed with a thermal controller to control the temperature or the humidity inside the enclosure The enclosure must be sealed to prevent the entry of air from the outside

Specifications

Specifications

RangeClimaSys
Product nameClimaSys CR
Product or component typeResistance heater with fan and thermostat
Power range350 W, 500 W
Input voltage230 V AC 50/60 Hz
Electrical connection2 screw terminals 2.5 mm²
Operating positionVertical
Ambient air temperature for operation-40…70 °C
Temperature setting range0…60 °C
IP degree of protectionIP20
Product certificationsUL, VDE
Height150 mm
Width155 mm
Depth215 mm
Condition of useAir sealed enclosure, Electrical protection is needed
fixing modeBy clips
Mounting support35 mm DIN rail

Packaging

Package 11 PCE, 21.000 cm × 17.000 cm × 13.500 cm (L × W × H), 1.026 kg
Package 210 CAR, 59.000 cm × 41.000 cm × 34.500 cm (L × W × H), 11.592 kg
Package 3200 P12, 120.000 cm × 80.000 cm × 189.000 cm (L × W × H), 242.840 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYCRP1W230VTVC: frequently asked questions

When can NSYCRP1W230VTVC be shipped?

NSYCRP1W230VTVC is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYCRP1W230VTVC in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYCRP1W230VTVC and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCRP1W230VTVC, subject to availability and destination.
