B&R 5AC901.FA01-00
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Fan kit |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 5AC901.FA01-00 be shipped?
5AC901.FA01-00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5AC901.FA01-00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5AC901.FA01-00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5AC901.FA01-00, subject to availability and destination.

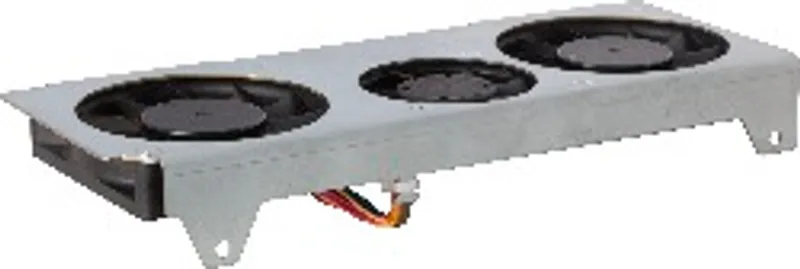

3 fans for improved heat dissipationSimple installation and removal This fan kit includes 3 fans for improving heat dissipation on 1-slot APC910 system units.
Specifications
Specifications
| Number of fans | 3 (1x 50 x 50 x 15, 2x 70 x 70 x 15) |
| Speed | Max. 5000 ±10% rpm (50 x 50 x 15) Max. 2200 ±250 rpm (70 x 70 x 15) |
| Noise level | 33.5 dB(A) (50 x 50 x 15) 28.3 dB(A) (70 x 70 x 15) |
| Service life | 100000 hours at 40°C (50 x 50 x 15) 100000 hours at 40°C (70 x 70 x 15) |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | Not applicable |
| UL | cULus E115267 Industrial control equipment |
| DNV | Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: A (0.7 g) EMC: B (bridge and open deck) |
| CCS | Yes |
| LR | ENV3 |
| KR | Yes |
| ABS | Yes |
| BV | EC31B Temperature: 5 - 55°C Vibration: 0.7 g EMC: Bridge and open deck |
| Pollution degree per EN 61131-2 | Pollution degree 2 |
| Width | 50 mm 70 mm |
| Height | 50 mm 70 mm |
| Depth | 15 mm 15 mm |
