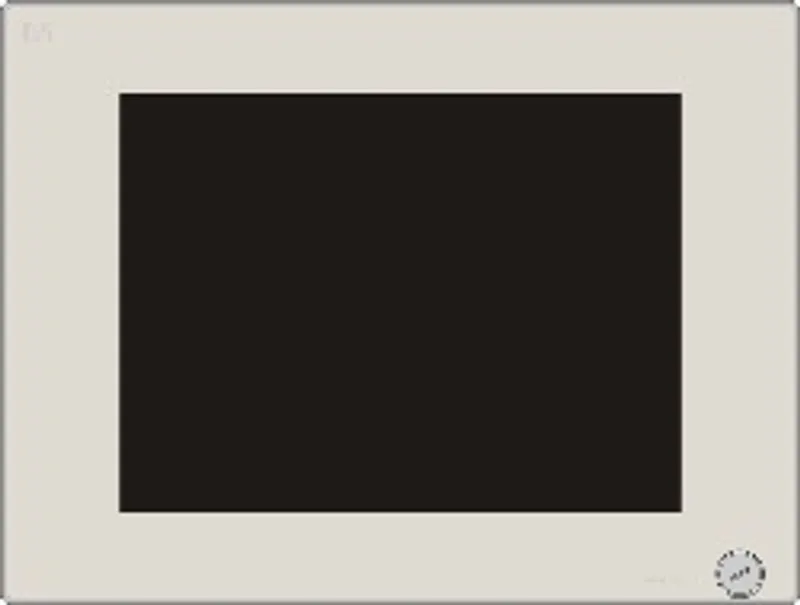

B&R 5PC820.1505-00
15" TFT XGA color display
- MPN
- 5PC820.1505-00
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 5PC820.1505-00?
15" TFT XGA color display
Analog resistive touch screen
Robust design
Compact installation depth
Fanless operation
1 optional PCI Express compact slot
1 optional slide-in compact slot
Optional PCI and PCIe slots and optional slide-in drives, optional expansions available
Panel PC 820 15" XGA TFT display with touch screen (resistive); connections for 1x RS232, 5x USB 2.0, Smart Display Link/DVI/Monitor, 2x Ethernet 10/100/1000, HDA sound, add-on UPS slot, expandable with 1 or 2 PCI / PCI Express slots, optional CompactPCI Express and slide-in compact slot; IP65 protection (front); order 24 VDC connector for supply voltage separately (screw clamp: 0TB103.9; cage clamp: 0TB103.91)
Specifications
General information
| Battery – Type | Renata 950 mAh |
| Battery – Service life | 2½ years |
| Battery – Removable | Yes, accessible from the outside |
| Battery – Variant | Lithium ion |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| LEDs | Power, HDD, Link, Run |
| B&R ID code | 0xAF21 |
| Power button | Yes |
| Reset button | Yes |
| Buzzer | Yes |
Controller
| Power failure logic – Controller | MTCX (note: Maintenance Controller Extended.) |
| Power failure logic – Buffer time | 10 ms |
| Graphics – Controller | Depends on the CPU board being used |
| Bootloader | BIOS |
Display
| Viewing angles – Horizontal | Direction R = 80° / Direction L = 80° |
| Viewing angles – Vertical | Direction U = 80° / Direction D = 80° |
| Backlight – Type | LED |
| Backlight – Brightness | 350 cd/m² |
| Backlight – Half-brightness time | 50,000 h (note: At an ambient temperature of 25°C. Reducing the brightness by 50% can result in an approximately 50% increase in the half-brightness time.) |
| Touch screen – Type | AMT (note: Touch screen drivers for approved operating systems are available in the Downloads section of the B&R website.) |
| Touch screen – Technology | Analog, resistive (note: Touch screen drivers for approved operating systems are available in the Downloads section of the B&R website.) |
| Touch screen – Controller | Elo, serial, 12-bit (note: Touch screen drivers for approved operating systems are available in the Downloads section of the B&R website.) |
| Touch screen – Transmittance | 81% ±3% (note: Touch screen drivers for approved operating systems are available in the Downloads section of the B&R website.) |
| Type | Color TFT |
| Diagonal | 15" (381 mm) |
| Colors | 16 million |
| Resolution | XGA, 1024 x 768 pixels |
| Contrast | 800:1 |
Interfaces
| COM1 – Type | RS232, modem-capable, not electrically isolated |
| COM1 – Execution | 9-pin male DSUB connector |
| COM1 – UART | 16550-compatible, 16-byte FIFO |
| COM1 – Max. baud rate | 115 kbit/s |
| CompactFlash slot 1 – Type | Type I |
| CompactFlash slot 2 – Type | Type I |
| USB – Quantity | 5 |
| USB – Type | USB 2.0 |
| USB – Execution | Type A |
| USB – Transfer rate | Low speed (1.5 Mbit/s), full speed (12 Mbit/s), high speed (480 Mbit/s) |
| USB – Current-carrying capacity | Max. 500 mA or 1 A per connection |
| Ethernet – Quantity | 2 |
| Ethernet – Execution | Shielded RJ45 port |
| Ethernet – Transfer rate | 10/100/1000 Mbit/s |
| Audio – Type | HDA sound |
| Audio – Inputs | Microphone, Line IN |
| Audio – Outputs | Line OUT |
Slots
| PCI slots – Quantity | 1 or 2 (optional) (note: The PCI slots available depend on the expansion and bus unit being used.) |
| PCIe slots – Quantity | 1 (note: The PCIe slots available depend on the expansion and bus unit being used.) |
| PCIec slots – Quantity | Optional (note: Optional with PCIec adapter 5AC803.BC01-00.) |
| Slide-in drives | Depends on the component (on the expansion and bus unit being used) |
| Slide-in compact drives | Optional (note: Optional with slide-in compact adapter 5AC803.BC02-00.) |
| Add-on UPS slot | Yes |
| Slot for fan kit | Yes |
Electrical properties
| Nominal voltage | 24 VDC ±25%, SELV+24 VDC power supply" in the user's manual."> (note: EN 60950 requirements must be observed; see section) |
| Nominal current | 6 A |
| Inrush current | Typ. 10 A, max. 50 A for <300 μs |
| Power consumption | Depends on the component |
| Overvoltage category per EN 61131-2 | II |
| Galvanic isolation | Yes |
Operating conditions
| Drop height | 1 m on industrial surfaces (in original packaging) |
| Degree of protection per EN 60529 | Back: IP20; Front: IP65, dust and sprayed water protection |
Ambient conditions
| Temperature – Operation | Depends on the component |
| Temperature – Storage | -20 to 60°C |
| Temperature – Transport | -20 to 60°C |
| Relative humidity – Operation | 10 to 85%, non-condensing |
| Relative humidity – Storage | T ≤ 40°C: 5 to 90%, non-condensing; T > 40°C: <90%, non-condensing |
| Relative humidity – Transport | T ≤ 40°C: 5 to 90%, non-condensing; T > 40°C: <90%, non-condensing |
| Vibration – Operation (continuous) | 2 to 9 Hz: 1.75 mm amplitude / 9 to 150 Hz: 0.5 g |
| Vibration – Operation (occasional) | 2 to 9 Hz: 3.5 mm amplitude / 9 to 150 Hz: 1 g |
| Vibration – Storage | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g |
| Vibration – Transport | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g |
| Shock – Operation | 15 g, 11 ms |
| Shock – Storage | 30 g, 15 ms |
| Shock – Transport | 30 g, 15 ms |
Mechanical properties
| Housing – Material | Metal |
| Front – Material | Polyester |
| Front – Light background color | Similar to Pantone 427CV |
| Front – Frame | Naturally anodized aluminum |
| Front – Design | Gray |
| Front – Gasket | Flat gasket around display front |
| Dimensions – Width | 435 mm |
| Dimensions – Height | 330 mm |
| Dimensions – Depth | Depends on the component |
| Weight | 5500 g (depends on the component) |
Accessories
Required accessories (order separately)
| 0TB103.91 | Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply. |
| 0TB103.9 | Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply. |
| 5PC800.CCAX-00 | CPU boards — Intel® dual-core Atom N2800 1.86 GHz; Intel® NM10 chipset; 1x DDR3 memory slot; Intel® GMA 3600; AMI BIOS (UEFI) NM10 CPU boards are equipp… |
| 5PC800.BM45-01 | CPU boards — Intel® Core™ 2 Duo P8400 2.26 GHz; Intel® GM45 chipset; 2x DDR3 memory slot; Intel® GMA 4500MDH; AMI BIOS Intel Core2 Duo P8400 CPU board,… |
| 5PC800.BM45-00 | CPU boards — Intel® Core™ 2 Duo T9400 2.53 GHz; Intel® GM45 chipset; 2x DDR3 memory slot; Intel® GMA 4500MDH; AMI BIOS Intel Core2 Duo T9400 CPU board,… |
| 5PC800.B945-14 | CPU boards — Intel® Core™ 2 Duo T7400 2.16 GHz; Intel® 945GME chipset; 2x DDR2 memory socket; Intel® GMA 950; AMI BIOS Intel Core2 Duo T7400 CPU board,… |
| 5PC800.B945-13 | CPU boards — Intel® Celeron® M 423 1.06 GHz; Intel® 945GME chipset; 2x DDR2 memory socket; Intel® GMA 950; AMI BIOS Intel Celeron M 423 CPU board, 1.06… |
| 5PC800.B945-12 | CPU boards — Intel® Core™2 Duo U7500, 1.06 GHz; Intel® 945GME chipset; 2x DDR2 memory socket; Intel® GMA 950; AMI BIOS Intel Core2 Duo U7500 CPU board,… |
| 5PC800.B945-11 | CPU boards — Intel® Core™2 Duo L7400 1.5 GHz; Intel® 945GME chipset; 2x DDR2 memory socket; Intel® GMA 950; AMI BIOS Intel Core2 Duo L7400 CPU board, 1.… |
| 5PC800.B945-10 | CPU boards — Intel® Core™ Duo L2400 1.66 GHz; Intel® 945GME chipset; 2x DDR2 memory socket; Intel® GMA 950; AMI BIOS Intel Core Duo L2400 CPU board, 1.6… |
| 5PC800.B945-05 | CPU boards — Intel® Atom™ N270 1.66 GHz; Intel® 945GME chipset; 2x DDR2 memory socket; Intel® GMA 950; AMI BIOS Intel Atom N270 CPU board, 1.6 GHz, sing… |
| 5AC803.FA01-00 | Fan kits — This fan kit is an optional addition for PPC800 system units without an expansion. |
| 5AC803.HS00-04 | Heat sinks — PPC800 heat sink for CPU board with Atom dual-core processor N2800 |
| 5AC803.HS00-02 | Heat sinks — PPC800 heat sink for CPU board with Atom processor N270. |
| 5AC803.HS00-01 | Heat sinks — PPC800 heat sink for CPU boards with dual core processor T7400, T9400 and P8400. |
| 5AC803.HS00-00 | Heat sinks — PPC800 heat sink for CPU boards with dual core processors L2400, L7400, U7500 and Celeron M 423. |
| 5MMDDR.2048-01 | Main memory — 2048 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 2048 MB PC2-5300 |
| 5MMDDR.1024-01 | Main memory — 1024 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 1024 MB PC2-5300 |
| 5MMDDR.0512-01 | Main memory — 512 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 512 MB PC2-5300 |
| 5MMDDR.4096-02 | Main memory for GM45 CPU boards — 4096 MB memory; DDR3 SDRAM according to PC3-8500; 64-bit data width; 1066 MHz SO-DIMM DDR3 RAM 4096 MB PC3-8500 |
| 5MMDDR.2048-02 | Main memory for GM45 CPU boards — 2048 MB memory; DDR3 SDRAM according to PC3-8500; 64-bit data width; 1066 MHz SO-DIMM DDR3 RAM 2048 MB PC3-8500 |
Optional accessories (22)
| 5AC803.BC02-00 | Adapter — This adapter can be used to operate a slide-in compact drive in PPC800 system units. |
| 5AC803.BC01-00 | Adapter — This adapter can be used to operate a PCI Express compact plug-in card in PPC800 system units. |
| 5AC803.BX02-01 | Bus units — 1 PCI and 1 PCIe bus; Compatible with the PPC800 expansion This bus unit has one PCI and PCI Express slot and can be inserted in the PPC800… |
| 5AC803.BX02-00 | Bus units — 2 PCI bus; Compatible with the PPC800 expansion This bus unit has two PCI slots and can be inserted in the PPC800 2-slot expansion. |
| 5AC803.BX01-01 | Bus units — 1 PCIe bus; Compatible with the PPC800 expansion This bus unit has one PCI Express slot and can be inserted in the PPC800 1-slot expansion. |
| 5AC803.BX01-00 | Bus units — 1 PCI bus; Compatible with the PPC800 expansion This bus unit has one PCI slot and can be inserted in the PPC800 1-slot expansion. |
| 5AC801.SSDI-05 | Drives — 256 GB solid state drive; MLC flash; S.M.A.R.T. support; Slide-in compact; SATA 3.0 compatible This 256 GB slide-in compact SSD (solid-stat… |
| 5AC801.SSDI-04 | Drives — 128 GB solid state drive; MLC flash; S.M.A.R.T. Support; Slide-in compact; SATA 3.0 compatible This 128 GB slide-in compact SSD (solid-stat… |
| 5AC801.SSDI-03 | Drives — 60 GB solid state drive; MLC flash; S.M.A.R.T. Support; Slide-in compact; SATA 3.0 compatible This 60 GB slide-in compact SSD (solid-state… |
| 5AC801.HDDS-00 | Drives — 40 GB hard disk; Slide-in; Specified for 24-hour operation; S.M.A.R.T. Support This 40 GB hard disk is specified for 24-hour operation, fea… |
| 5AC801.HDDI-04 | Drives — 500 GB hard disk; Slide-in compact; Specified for 24-hour operation; S.M.A.R.T. support This 500 GB slide-in compact hard disk is specified… |
| 5AC801.HDDI-00 | Drives — 40 GB hard disk; Slide-in compact; Specified for 24-hour operation; S.M.A.R.T. Support This 40 GB slide-in compact hard disk is specified f… |
| 5AC801.DVRS-00 | Drives — DVD-R/RW, DVD+R/RW drive; Slide-in The DVD-R/RW slide-in drive can be used in APC810 and PPC800 system units with a slide-in drive slot. |
| 5AC801.DVDS-00 | Drives — DVD-ROM drive; Slide-in The DVD-ROM slide-in drive can be used in APC810 and PPC800 system units with a slide-in drive slot. |
| 5AC801.ADAS-00 | Drives — Slide-in compact slot; Slide-in SATA hard disk adapter for operating a slide-in compact hard disk in a slide-in slot. |
| 5AC803.SX02-00 | Expansions — 2 slots for PCI/PCIe plug-in cards; 1 slot for a slide-in drive The 2-slot expansion can be added as an option on the PPC800 and has insert… |
| 5AC803.SX01-00 | Expansions — 1 slot for a PCI/PCIe plug-in card; 1 slot for a slide-in drive The 1-slot expansion can be added as an option on the PPC800 and has insert… |
| 5AC803.FA03-00 | Fan kits — This fan kit can be installed as an option on PPC800 system units with the 2-slot expansion. |
| 5AC803.FA02-00 | Fan kits — This fan kit can be installed as an option on PPC800 system units with the 1-slot expansion. |
| 5ACPCC.MPL0-00 | Interface cards — PCIec POWERLINK card; 2x POWERLINK interfaces; 2 station number switches; Card number switch This PCI Express compact POWERLINK card is equ… |
| 5ACPCC.ETH0-00 | Interface cards — PCIec Ethernet card; 1x Ethernet interface (10/100/1000 Mbit/s) This PCI Express compact Ethernet card has a 10/100/1000 Mbit/s network con… |
| 5AC600.UPSI-00 | Uninterruptible power supplies — UPS module for APC620, APC810, PPC800, for system units 5PC600.SX01-00 (starting with Rev. H0), 5PC600.SX02-00 (starting with Rev. G0), 5PC… |
