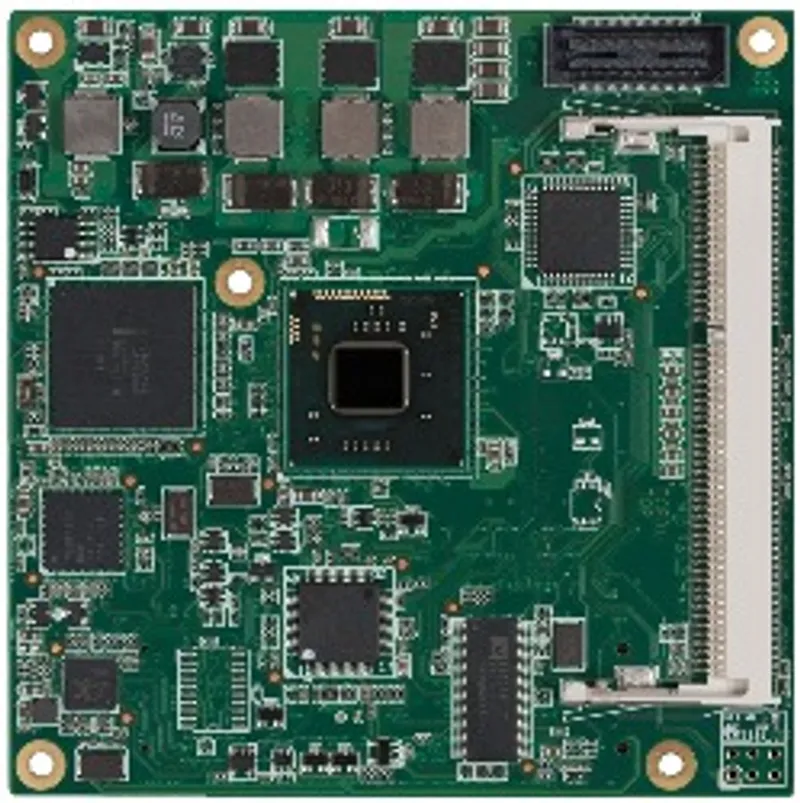

B&R 5PC800.CCAX-00
Intel® dual-core Atom N2800 1.86 GHz
- MPN
- 5PC800.CCAX-00
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 5PC800.CCAX-00?
Intel® dual-core Atom N2800 1.86 GHz
Intel® NM10 chipset
1x DDR3 memory slot
Intel® GMA 3600
AMI BIOS (UEFI)
NM10 CPU boards are equipped with one DDR3 memory slot for a maximum of 4 GB. Additionally, the Intel® GMA 3600 is integrated with 384 MB memory and a maximum resolution of 1920 x 1200 pixels (WUXGA).
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
Controller
| Processor – Type | Intel® Atom™ N2800 dual core |
| Processor – Clock frequency | 1860 MHz |
| Processor – Number of cores | 2 |
| Processor – Architecture | 32 nm |
| Processor – L1 cache | 2x 56 kB |
| Processor – L2 cache | 2x 512 kB |
| Processor – External bus | 1066 MHz |
| Processor – Intel 64 architecture | Yes |
| Processor – Intel Hyper-Threading Technology | Yes |
| Processor – Intel Virtualization Technology (VT-x) | No |
| Processor – Enhanced Intel SpeedStep Technology | Yes |
| Processor – Expanded command set | SSE2, SSE3, SSSE3 |
| Real-time clock – Accuracy | At 25°C: Typ. 12 ppm (1 second) per day (note: At max. specified ambient temperature: Typ. 58 ppm (5 seconds) - worst case 220 ppm (19 seconds).) |
| Real-time clock – Battery-backed | Yes |
| Memory slot – Type | DDR3 |
| Memory slot – Memory size | Max. 4 GB |
| Graphics – RGB | 350 MHz RAMDAC, resolution up to 1920 x 1200 |
| Graphics – Controller | Intel® Graphics Media Accelerator 3600 |
| Graphics – Memory | Up to 384 MB (note: Allocated in main memory.) |
| Graphics – Color depth | Max. 32-bit |
| Bootloader | embedded AMI BIOS (UEFI) |
| Chipset | Intel NM10 |
| Mass memory management | 2x SATA, 2x PATA |
| Power management | ACPI 3.0 with battery support |
Accessories
Required accessories (order separately)
| 5MMDDR.4096-02 | Main memory for GM45 CPU boards — 4096 MB memory; DDR3 SDRAM according to PC3-8500; 64-bit data width; 1066 MHz SO-DIMM DDR3 RAM 4096 MB PC3-8500 |
| 5MMDDR.2048-02 | Main memory for GM45 CPU boards — 2048 MB memory; DDR3 SDRAM according to PC3-8500; 64-bit data width; 1066 MHz SO-DIMM DDR3 RAM 2048 MB PC3-8500 |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
5PC800.CCAX-00: frequently asked questions
When can 5PC800.CCAX-00 be shipped?
5PC800.CCAX-00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5PC800.CCAX-00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5PC800.CCAX-00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5PC800.CCAX-00, subject to availability and destination.
