B&R 5PC800.BM45-00

Name: B&R 5PC800.BM45-00
Brand: B&R
SKU: 5PC800.BM45-00

MPN: 5PC800.BM45-00 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 5PC800.BM45-00 be shipped?

5PC800.BM45-00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5PC800.BM45-00 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5PC800.BM45-00 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5PC800.BM45-00, subject to availability and destination.

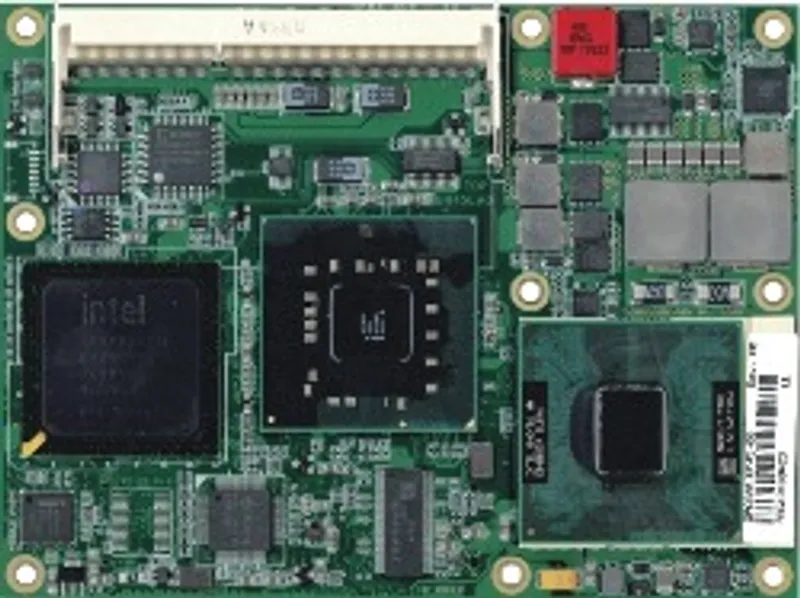

Intel® Core™ 2 Duo T9400 2.53 GHzIntel® GM45 chipset2x DDR3 memory slotIntel® GMA 4500MDHAMI BIOS Intel Core2 Duo T9400 CPU board, 2.53 GHz, dual core, 1066 MHz FSB, 6 MB L2 cache, GM45 chipset, 2 slots for SO-DIMM DDR3 modules

Specifications

CE	Yes
UKCA	Yes
UL	cULus E115267 Industrial control equipment
Bootloader	Embedded AMI BIOS
Type	DDR3
Clock frequency	2530 MHz
Number of cores	2
Architecture	45 nm
L1 cache	32 kB
L2 cache	6 MB
External bus	1066 MHz
Intel 64 architecture	Yes
Intel Virtualization Technology (VT-x)	Yes
Enhanced Intel SpeedStep Technology	Yes
Expanded command set	G4 architecture, SSE, SSE2, SSE3
Chipset	Intel GM45 Intel® 82801 (ICH9M-E)
Accuracy	At 25°C: Typ. 12 ppm (1 second) per day
Battery-backed	Yes
Memory size	Max. 8 GB
Controller	Intel® Graphics Media Accelerator 4500MDH
Memory	Up to 384 MB
Color depth	Max. 32-bit
DVI	2x Intel-compliant SDVO ports
RGB	300 MHz RAMDAC, resolution up to 2048 x 1536 @ 70 Hz (QXGA)
Mass memory management	4x SATA
Power management	ACPI 3.0 with battery support
