B&R 5PC800.B945-10

Intel® Core™ Duo L2400 1.66 GHz

MPN: 5PC800.B945-10

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 5PC800.B945-10?

Intel® Core™ Duo L2400 1.66 GHz

Intel® 945GME chipset

2x DDR2 memory socket

Intel® GMA 950

AMI BIOS

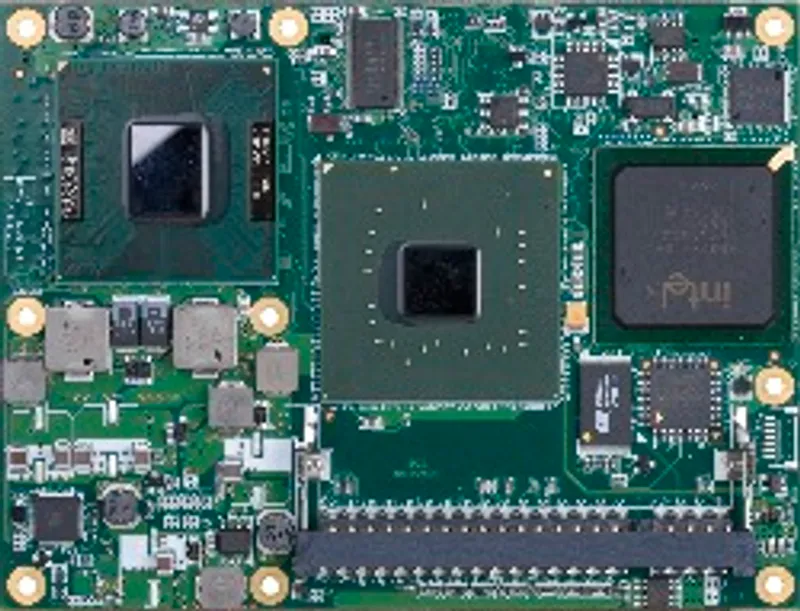

Intel Core Duo L2400 CPU board, 1.66 GHz, dual core, 667 MHz FSB, 2 MB L2 cache, 945GME chipset, 2 slots for SO-DIMM DDR2 modules (max. expansion 3 GB), Realtek Ethernet Controller RTL8111C.

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment

Controller

Processor – Type	Intel® Core™ Duo L2400
Processor – Clock frequency	1660 MHz
Processor – Number of cores	2
Processor – Architecture	65 nm
Processor – L1 cache	32 kB
Processor – L2 cache	2 MB
Processor – External bus	667 MHz
Processor – Intel 64 architecture	No
Processor – Intel Virtualization Technology (VT-x)	Yes
Processor – Enhanced Intel SpeedStep Technology	Yes
Real-time clock – Accuracy	At 25°C: Typ. 12 ppm (1 second) per day
Real-time clock – Battery-backed	Yes
Memory slot – Type	DDR2
Memory slot – Memory size	Max. 3 GB
Graphics – DVI	2x Intel-compliant SDVO ports, 1920 x 1080
Graphics – RGB	400 MHz RAMDAC, resolution up to 2048 x 1536 @75 Hz (QXGA) and 1920 x 1080 @85 Hz (HDTV)
Graphics – Controller	Intel® Graphics Media Accelerator 950
Graphics – Memory	Up to 224 MB (note: Allocated in main memory.)
Graphics – Color depth	Max. 32-bit
Bootloader	Embedded AMI BIOS
Chipset	Intel 945GME; Intel 82801 GHM (ICH7M-DH)
Mass memory management	2x SATA, 1x IDE
Power management	ACPI 2.0, S3 support (suspend to RAM)

Accessories

Required accessories (order separately)

5MMDDR.2048-01	Main memory — 2048 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 2048 MB PC2-5300
5MMDDR.1024-01	Main memory — 1024 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 1024 MB PC2-5300
5MMDDR.0512-01	Main memory — 512 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 512 MB PC2-5300
