B&R 5PC800.B945-05

Name: B&R 5PC800.B945-05
Brand: B&R
SKU: 5PC800.B945-05

MPN: 5PC800.B945-05 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 5PC800.B945-05 be shipped?

5PC800.B945-05 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5PC800.B945-05 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5PC800.B945-05 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5PC800.B945-05, subject to availability and destination.

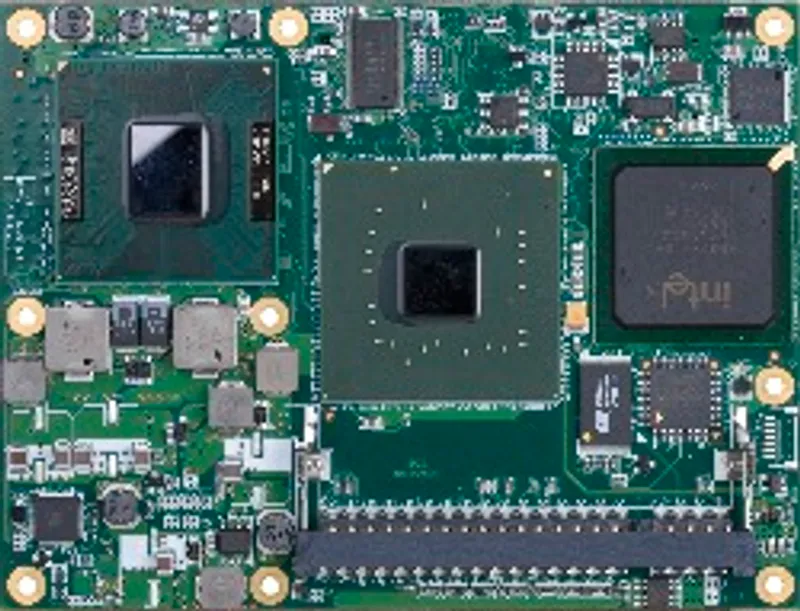

Intel® Atom™ N270 1.66 GHzIntel® 945GME chipset2x DDR2 memory socketIntel® GMA 950AMI BIOS Intel Atom N270 CPU board, 1.6 GHz, single core, 533 MHz FSB, 512 kB L2 cache, 945GME chipset, 2 sockets for SO-DIMM DDR2 modules (max. expansion 3 GB), Realtek Ethernet Controller RTL8111C.

Specifications

CE	Yes
UKCA	Yes
UL	cULus E115267 Industrial control equipment
Bootloader	Embedded AMI BIOS
Type	DDR2
Clock frequency	1660 MHz
Number of cores	1
Architecture	45 nm
L1 cache	24 kB
L2 cache	512 kB
External bus	533 MHz
Intel 64 architecture	No
Intel Virtualization Technology (VT-x)	No
Enhanced Intel SpeedStep Technology	Yes
Chipset	Intel 945GME Intel 82801 GHM (ICH7M-DH)
Accuracy	At 25°C: Typ. 12 ppm (1 second) per day
Battery-backed	Yes
Memory size	Max. 3 GB
Controller	Intel® Graphics Media Accelerator 950
Memory	Up to 224 MB
Color depth	Max. 32-bit
DVI	2x Intel-compliant SDVO ports, 1920 x 1080
RGB	400 MHz RAMDAC, resolution up to 2048 x 1536 @75 Hz (QXGA) and 1920 x 1080 @85 Hz (HDTV)
Mass memory management	2x SATA, 1x IDE
Power management	ACPI 2.0, S3 support (suspend to RAM)
