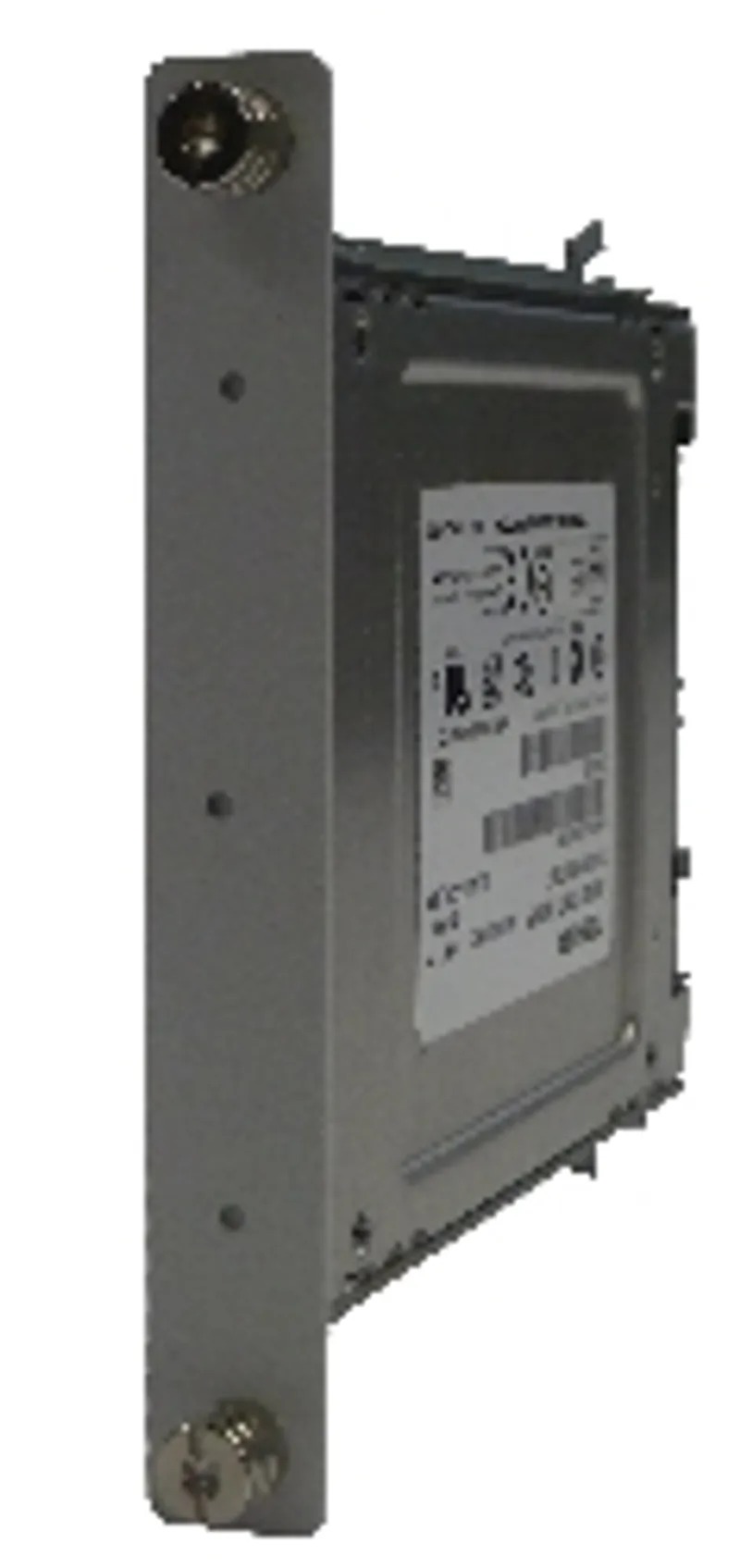

B&R 5AC801.SSDI-05
256 GB solid state drive
- MPN
- 5AC801.SSDI-05
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 5AC801.SSDI-05?
256 GB solid state drive
MLC flash
S.M.A.R.T. support
Slide-in compact
SATA 3.0 compatible
This 256 GB slide-in compact SSD (solid-state drive) is based on multi-level cell (MLC) technology and can be used in APC810 and PPC800 system units.
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
Solid-state drive
| IOPS – 4k read | Max. 90,000 (random) (note: IOPS: Random read and write input/output operations per second) |
| IOPS – 4k write | Max. 35,000 (random) (note: IOPS: Random read and write input/output operations per second) |
| Capacity | 256 GB |
| Data reliability | <1 unrecoverable error per 10 15 bits read |
| MTBF | 1,500,000 hours |
| S.M.A.R.T. support | Yes |
| Interface | SATA |
| Servicing | None |
| Continuous reading | Max. 510 MB/s |
| Continuous writing | Max. 460 MB/s |
Endurance
| Guaranteed data volume – Guaranteed | 200 TBW (note: TBW: Terabytes written) |
| MLC flash memory | Yes |
| Compatibility | SATA 3.0 compliant; ACS-2; SSD Enhanced SMART ATA feature set; Native Command Queuing (NCQ) |
Ambient conditions
| Temperature – Operation | -40 to 85°C |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
| Relative humidity – Operation | 5 to 90%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
| Vibration – Operation | 10 to 2000 Hz: 20 g |
| Vibration – Storage | 10 to 2000 Hz: 20 g |
| Vibration – Transport | 10 to 2000 Hz: 20 g |
| Shock – Operation | 1500 g, 0.5 ms |
| Shock – Storage | 1500 g, 0.5 ms |
| Shock – Transport | 1500 g, 0.5 ms |
| Elevation – Operation | -300 to 12,192 m |
| Elevation – Storage | -300 to 12,192 m |
| Elevation – Transport | -300 to 12,192 m |
Mechanical properties
| Dimensions – Width | 13 mm |
| Dimensions – Height | 98 mm |
| Dimensions – Depth | 105 mm |
| Installation | Permanent (note: Slide-in compact installation.) |
| Weight | 118 g |
Vendor information
| Manufacturer | Toshiba |
| Manufacturer's product ID | THNSNJ256WCSU |
Accessories
Optional accessories (1)
| 5MMSSD.0256-00 | Drives — Replacement for 5AC801.SSDI-05 or 5AC901.CSSD-05 SSD drives; Accessory for the APC510 (optional SSD for I/O board) This 256 GB solid-state… |
