B&R 5PC820.SX01-01
Specially developed to operate together with ACOPOSmulti
- MPN
- 5PC820.SX01-01
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

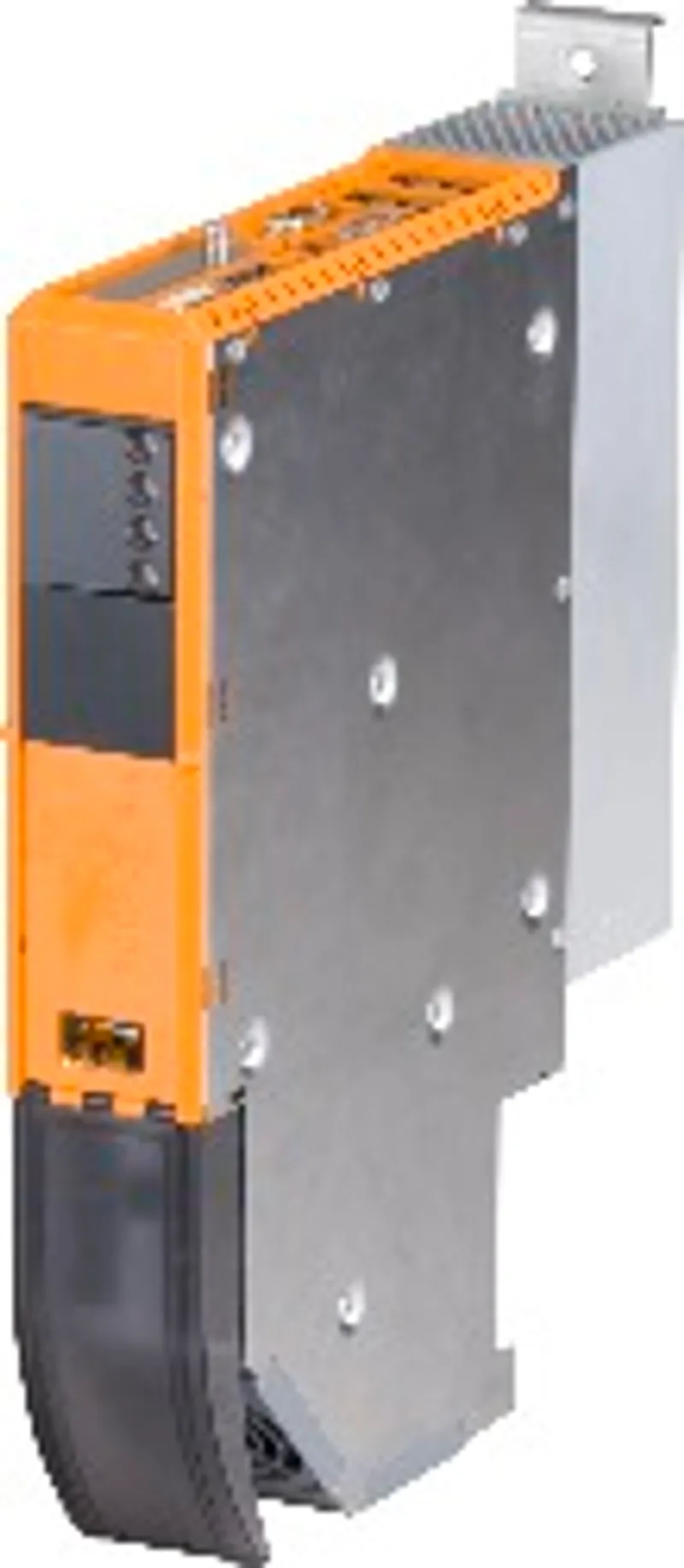

What is the B&R 5PC820.SX01-01?
Specially developed to operate together with ACOPOSmulti
Wall mounting
1 PCI Express compact slot
SRAM, 1 MB onboard
Integrated POWERLINK and CAN fieldbus interfaces
APC820 system unit, wall mounting, 1 PCIec card slot, 2x CompactFlash slots, 1x RS232, 1x RS232/422/485, 1x POWERLINK, 1x CAN, Smart Display Link/DVI/monitor, 5x USB 2.0, 2x ETH 10/100/1000, 24 VDC via ACOPOSmulti rail.
Specifications
General information
| Battery – Type | Renata 950 mAh |
| Battery – Service life | 2 years (note: 1½ years apply only if an SRAM module is used. Without an SRAM module, the service life is 2 years. At 50°C, 8.5 A for the components being supplied and self-discharge of 40%.) |
| Battery – Removable | Yes, behind the cable cover |
| Battery – Variant | Lithium ion |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Dongle port | Yes |
| LEDs | Power, CF, Link, Run, CAN, POWERLINK, IF slot |
| B&R ID code | 0xAD8A |
| Power button | Yes |
| Reset button | Yes |
| Buzzer | Yes |
| Cooling and mounting type | Wall mounting |
Controller
| Real-time clock – Accuracy | At 25°C: Typ. 12 ppm (1 second) per day (note: At max. specified ambient temperature: Typ. 58 ppm (5 seconds) - worst case 220 ppm (19 seconds).) |
| Real-time clock – Battery-backed | Yes |
| Power failure logic – Controller | MTCX (note: Maintenance Controller Extended) |
| Power failure logic – Buffer time | 10 ms |
| Graphics – Controller | Intel Graphics Media Accelerator 950 |
| SRAM – Size | 1 MB |
| SRAM – Battery-backed | Yes |
| SRAM – Remanent variables in power failure mode | 128 kB (for e.g. Automation Runtime, see Automation Help) |
| Bootloader | BIOS |
| Cooling | Passive via heat sink and supported with an active fan kit |
Interfaces
| COM1 – Type | RS232, modem supported, not galvanically isolated |
| COM1 – Variant | DSUB, 9-pin, male |
| COM1 – UART | 16550-compatible, 16-byte FIFO buffer |
| COM1 – Max. baud rate | 115 kbit/s |
| COM2 – Type | RS232/422/485, galvanically isolated |
| COM2 – Variant | DSUB, 9-pin, male |
| COM2 – UART | 16550-compatible, 16-byte FIFO buffer |
| COM2 – Max. baud rate | 115 kbit/s |
| CompactFlash slot 1 – Type | Type I |
| CompactFlash slot 2 – Type | Type I |
| USB – Quantity | 5 |
| USB – Type | USB 2.0 |
| USB – Connection | To any USB type A interface |
| USB – Transfer rate | Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (480 Mbit/s) |
| USB – Current-carrying capacity | Max. 500 mA or 1 A per interface |
| Ethernet – Quantity | 2 |
| Ethernet – Transfer rate | 10/100/1000 Mbit/s |
| Ethernet – Max. baud rate | 1000 Mbit/s |
| Panel/Monitor interface – Variant | DVI-I |
| Panel/Monitor interface – Type | SDL/DVI/Monitor |
| POWERLINK – Quantity | 1 |
| POWERLINK – Node switches | 2 |
| POWERLINK – Status LED | Yes |
| CAN – Quantity | 1 |
| CAN – Transfer rate | Max. 500 kbit/s |
| CAN – Node switches | Yes |
| CAN – Status LED | Yes |
| CAN – Terminating resistor | Yes, can be enabled via switch |
Slots
| PCIec slots – Quantity | 1 |
Electrical properties
| Nominal voltage | 24 VDC ±25% |
| Nominal current | 5 A |
| Inrush current | Typ. 7 A, max. 50 A for < 300 µs |
Operating conditions
| Drop height | 0.25 m |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Operation | Component-dependent |
| Temperature – Storage | -20 to 60°C |
| Temperature – Transport | -20 to 60°C |
| Relative humidity – Operation | Component-dependent |
| Relative humidity – Storage | Component-dependent |
| Relative humidity – Transport | Component-dependent |
| Vibration – Operation | 2 to 9 Hz: 0.3 mm amplitude / 9 to 200 Hz: 0.1 g |
| Vibration – Storage | 2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g / 200 to 500 Hz: 1.5 g |
| Vibration – Transport | 2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g / 200 to 500 Hz: 1.5 g |
| Elevation – Operation | Max. 3000 m (component-dependent) |
Mechanical properties
| Housing – Material | Galvanized plate, plastic (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Housing – Front cover | Polycarbonates, black (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Housing – Cable cover | Polycarbonates, transparent (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Dimensions – Width | 53 mm |
| Dimensions – Height | 344 mm |
| Weight | Approx. 2550 g |
Accessories
Required accessories (order separately)
| 5PC800.B945-14 | CPU boards — Intel® Core™ 2 Duo T7400 2.16 GHz; Intel® 945GME chipset; 2x DDR2 memory socket; Intel® GMA 950; AMI BIOS Intel Core2 Duo T7400 CPU board,… |
| 5PC800.B945-13 | CPU boards — Intel® Celeron® M 423 1.06 GHz; Intel® 945GME chipset; 2x DDR2 memory socket; Intel® GMA 950; AMI BIOS Intel Celeron M 423 CPU board, 1.06… |
| 5PC800.B945-12 | CPU boards — Intel® Core™2 Duo U7500, 1.06 GHz; Intel® 945GME chipset; 2x DDR2 memory socket; Intel® GMA 950; AMI BIOS Intel Core2 Duo U7500 CPU board,… |
| 5PC800.B945-11 | CPU boards — Intel® Core™2 Duo L7400 1.5 GHz; Intel® 945GME chipset; 2x DDR2 memory socket; Intel® GMA 950; AMI BIOS Intel Core2 Duo L7400 CPU board, 1.… |
| 5PC800.B945-10 | CPU boards — Intel® Core™ Duo L2400 1.66 GHz; Intel® 945GME chipset; 2x DDR2 memory socket; Intel® GMA 950; AMI BIOS Intel Core Duo L2400 CPU board, 1.6… |
| 5AC802.HS00-01 | Heat sinks — APC820 power supply unit with heat sink for CPU boards with dual core processor T7400. |
| 5AC802.HS00-00 | Heat sinks — APC820 power supply unit with heat sink for CPU boards with dual core processors L2400, L7400, U7500 and Celeron M 423. |
| 5MMDDR.2048-01 | Main memory — 2048 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 2048 MB PC2-5300 |
| 5MMDDR.1024-01 | Main memory — 1024 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 1024 MB PC2-5300 |
| 5MMDDR.0512-01 | Main memory — 512 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 512 MB PC2-5300 |
Optional accessories (3)
| 8BXF001.0000-00 | Fan modules — ACOPOSmulti fan module, replacement fan for ACOPOSmulti modules (8BxP/8B0C/8BVI/8BVE/8B0K) |
| 5ACPCC.MPL0-00 | Interface cards — PCIec POWERLINK card; 2x POWERLINK interfaces; 2 station number switches; Card number switch This PCI Express compact POWERLINK card is equ… |
| 5ACPCC.ETH0-00 | Interface cards — PCIec Ethernet card; 1x Ethernet interface (10/100/1000 Mbit/s) This PCI Express compact Ethernet card has a 10/100/1000 Mbit/s network con… |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
5PC820.SX01-01: frequently asked questions
When can 5PC820.SX01-01 be shipped?
5PC820.SX01-01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5PC820.SX01-01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
