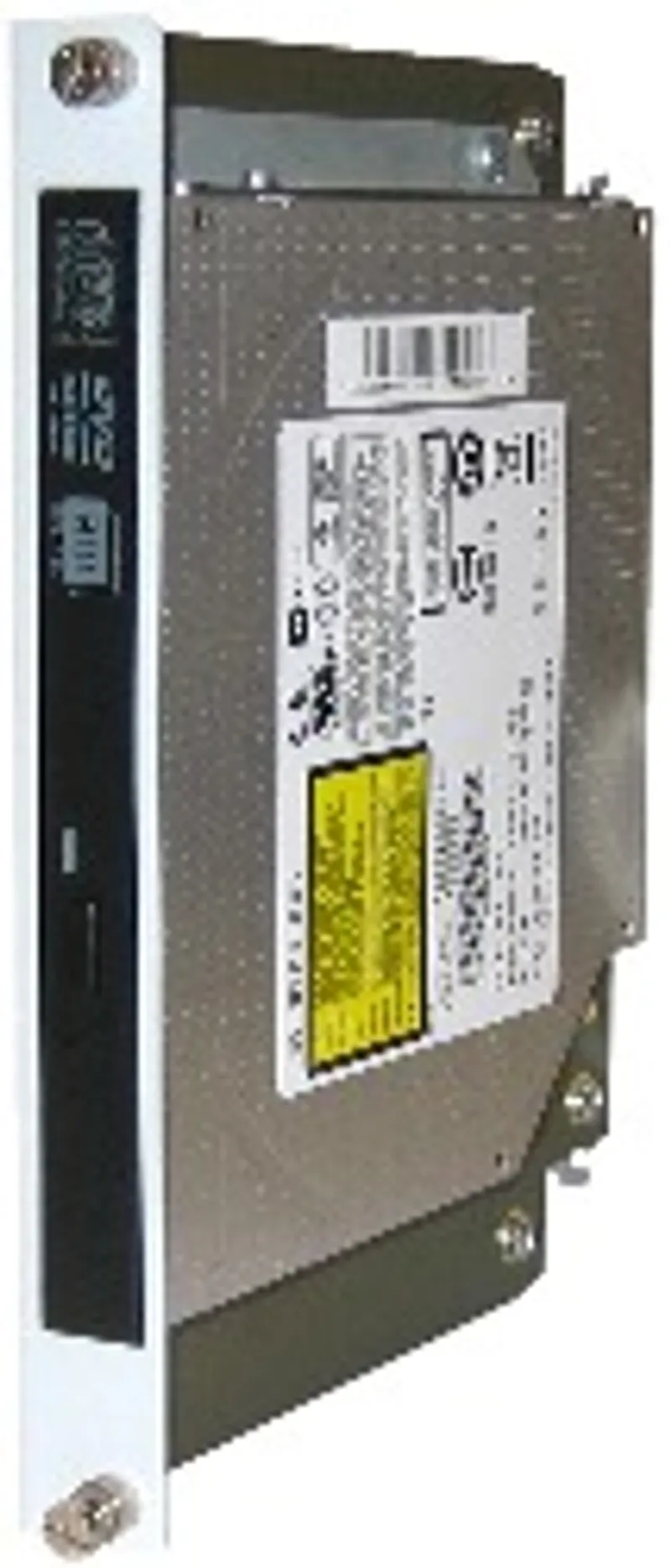

B&R 5AC801.DVRS-00

DVD-R/RW, DVD+R/RW drive; Slide-in The DVD-R/RW slide-in drive can be used in APC810 and PPC800 system units…

MPN: 5AC801.DVRS-00

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 5AC801.DVRS-00?

DVD-R/RW, DVD+R/RW drive

Slide-in

The DVD-R/RW slide-in drive can be used in APC810 and PPC800 system units with a slide-in drive slot.

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment

CD/DVD drive

Startup time – CD	Max. 14 seconds (from 0 rpm to read operation)
Startup time – DVD	Max. 15 seconds (from 0 rpm to read operation)
Access time – CD	On average 140 ms (24x)
Access time – DVD	On average 150 ms (8x)
Readable media – CD	CD/CD-ROM (12 cm, 8 cm), CD-R, CD-RW
Readable media – DVD	DVD-ROM, DVD-R, DVD-R (dual layer), DVD-RW. DVD-RAM, DVD+R, DVD+R (dual layer), DVD+RW, DVD-RAM
Writable media – CD	CD-R, CD-RW
Writable media – DVD	DVD-R/RW, DVD-R (dual layer), DVD-RAM (4.7 GB), DVD+R/RW, DVD+R (dual layer)
Read speed – CD	24x
Read speed – DVD	8x
Write speed – CD-R	24x, 16x, 10x and 4x
Write speed – CD-RW	24x, 16x, 10x and 4x
Write speed – DVD+R	8x, 4x and 2.4x
Write speed – DVD+R (dual layer)	6x, 4x and 2.4x
Write speed – DVD+RW	4x and 2x
Write speed – DVD-R	8x, 4x and 2x
Write speed – DVD-R (dual layer)	6x, 4x and 2x
Write speed – DVD-RAMNero" burning software (order number 5SWUTI.0000-00) or other burning software packages or drivers from third-party providers.">	5x, 3x and 2x (note: RAM drivers are not provided by the manufacturer. Support of RAM function by)
Write speed – DVD-RW	6x, 4x and 2x
Write methods – CD	Disk at once, session at once, packet write, track at once
Write methods – DVD	Disk at once, incremental, overwrite, sequential, multi-session
Data buffer capacity	2 MB
Data transfer rate	Max. 33.3 MB/s
Speed	Max. 5160 rpm ±1%
Noise level	Approx. 45 dBA at a distance of 50 cm (full read access)
Compatible formats	CD-DA, CD-ROM mode 1 / mode 2; CD-ROM XA mode 2 (form 1, form 2) ; Photo CD (single-/multi-session), enhanced CD, CD text ; DVD-ROM, DVD-R, DVD-R (dual layer), DVD-RW, DVD video; DVD-RAM (4.7 GB, 2.6 GB) ; DVD+R, DVD+R (dual layer), DVD+RW
Laser class	Class 1 laser
Service life	60,000 POH (power-on hours)
Interface	SATA

Ambient conditions

Temperature – Operation	5 to 55°C (note: The temperature specifications correspond to a specification at 500 meters. The max. ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.)
Temperature – Storage	-20 to 60°C (note: The temperature specifications correspond to a specification at 500 meters. The max. ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.)
Temperature – Transport	-40 to 65°C (note: The temperature specifications correspond to a specification at 500 meters. The max. ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.)
Relative humidity – Operation	8 to 80%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing
Vibration – Operation	5 to 500 Hz: 0.2 g
Vibration – Storage	5 to 500 Hz: 2 g
Vibration – Transport	5 to 500 Hz: 2 g
Shock – Operation	At max. 5 g and 11 ms duration
Shock – Storage	At max. 60 g and 11 ms duration; At max. 200 g and 2 ms duration
Shock – Transport	At max. 60 g and 11 ms duration; At max. 200 g and 2 ms duration

Mechanical properties

Dimensions – Width	22 mm
Dimensions – Height	172.5 mm
Dimensions – Depth	150 mm
Weight	400 g

Accessories

Optional accessories (1)

5SWUTI.0000-00

Miscellaneous — OEM Nero CD-RW Software, only available with a CD writer.
