B&R 5AC801.SSDI-04
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 118 kg |
Shipping & availability
When can 5AC801.SSDI-04 be shipped?
5AC801.SSDI-04 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5AC801.SSDI-04 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5AC801.SSDI-04 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5AC801.SSDI-04, subject to availability and destination.

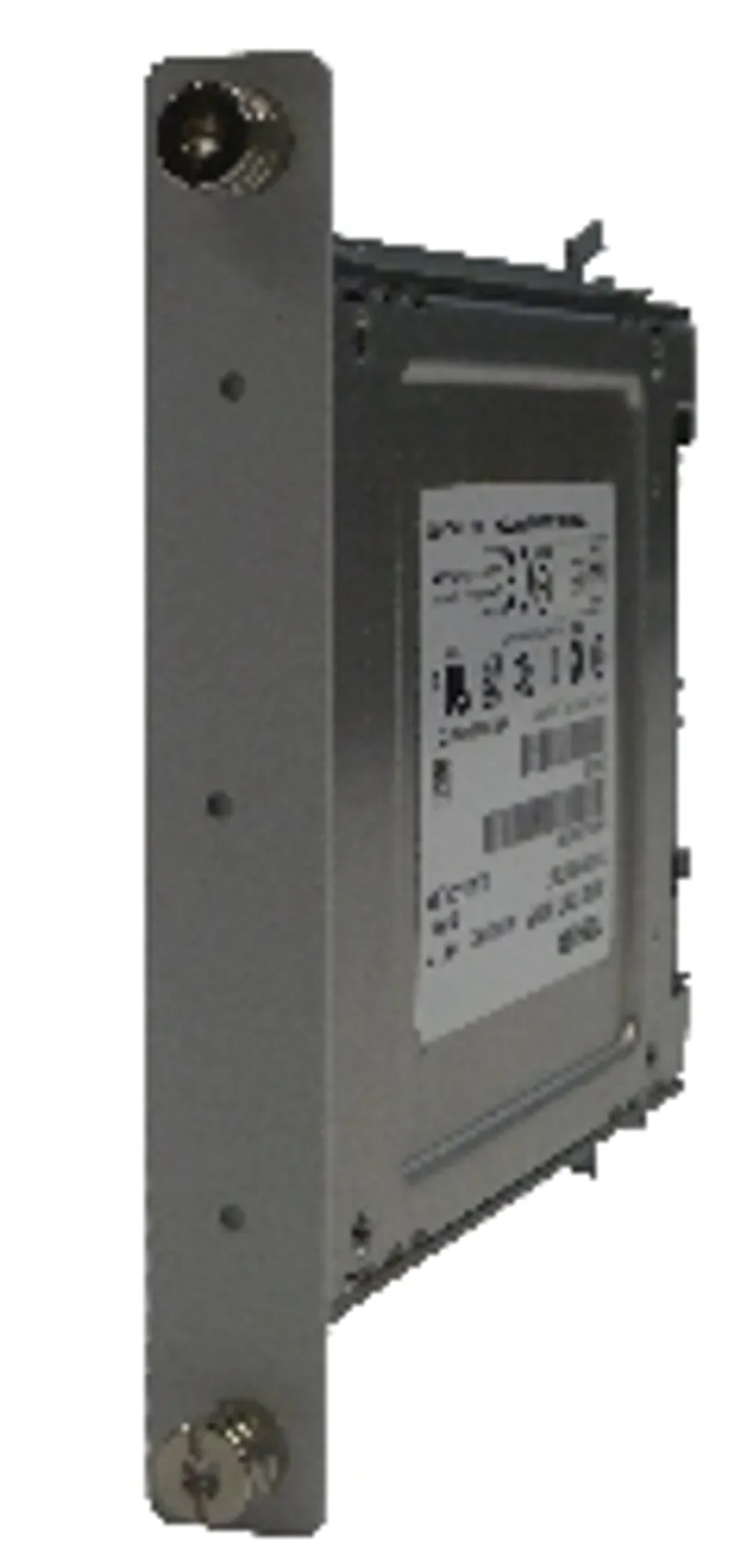

128 GB solid state driveMLC flashS.M.A.R.T. SupportSlide-in compactSATA 3.0 compatible This 128 GB slide-in compact SSD (solid-state drive) is based on multi-level cell (MLC) technology and can be used in APC810 and PPC800 system units.
Specifications
Specifications
| CE | Yes |
| UKCA | Yes |
| UL | cULus E115267Industrial control equipment |
| Capacity | 128 GB |
| Data reliability | <1 unrecoverable error per 1015 bits read |
| MTBF | 1,500,000 hours |
| S.M.A.R.T. support | Yes |
| Interface | SATA |
| Servicing | None |
| Continuous reading | Max. 510 MB/s |
| Continuous writing | Max. 450 MB/s |
| 4k read | Max. 85,000 (random) |
| 4k write | Max. 35,000 (random) |
| MLC flash memory | Yes |
| Guaranteed | 100 TBW |
| Compatibility | SATA 3.0 compliantACS-2SSD Enhanced SMART ATA feature setNative Command Queuing (NCQ) |
| Operation | -300 to 12,192 m |
| Storage | -300 to 12,192 m |
| Transport | -300 to 12,192 m |
| Installation | Permanent |
| Width | 13 mm |
| Height | 98 mm |
| Depth | 105 mm |
| Weight | 118 g |
| Manufacturer | Toshiba |
| Manufacturer's product ID | THNSNJ128WCSU |
