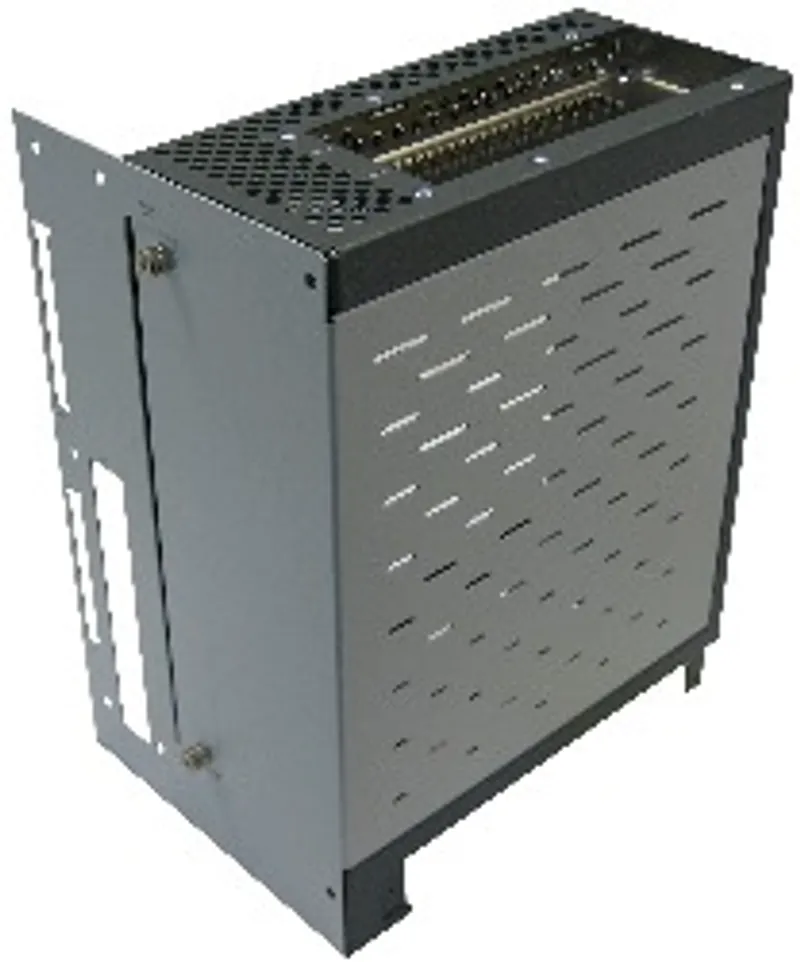

B&R 5AC803.SX02-00
2 slots for PCI/PCIe plug-in cards1 slot for a slide-in…
- MPN
- 5AC803.SX02-00
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 5AC803.SX02-00?
2 slots for PCI/PCIe plug-in cards
1 slot for a slide-in drive
The 2-slot expansion can be added as an option on the PPC800 and has inserts for 2 PCI/PCIe slots (only together with a 2-slot bus unit) and a slide-in drive.
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
Slots
| PCI/PCIe slots – Quantity | 2 |
| Slide-in drives | 1 |
Mechanical properties
| Dimensions – Width | 167 mm |
| Dimensions – Height | 222 mm |
| Dimensions – Depth | 80 mm |
| Weight | Approx. 1000 g |
Accessories
Required accessories (order separately)
| 5AC803.BX02-01 | Bus units — 1 PCI and 1 PCIe bus; Compatible with the PPC800 expansion This bus unit has one PCI and PCI Express slot and can be inserted in the PPC800… |
| 5AC803.BX02-00 | Bus units — 2 PCI bus; Compatible with the PPC800 expansion This bus unit has two PCI slots and can be inserted in the PPC800 2-slot expansion. |
| 5AC803.FA03-00 | Fan kits — This fan kit can be installed as an option on PPC800 system units with the 2-slot expansion. |
Optional accessories (6)
| 5ACPCI.RAIC-06 | Drives — SATA RAID controller; RAID level 0 (striped) and 1 (mirrored); 2x 500 GB SATA hard disk drives (suitable for 24-hour operation); Only requi… |
| 5ACPCI.RAIC-05 | Drives — SATA RAID controller; RAID level 0 (striped) and 1 (mirrored); 2 SATA hard disk drives (suitable for 24-hour operation); Only requires 1 PC… |
| 5AC801.HDDS-00 | Drives — 40 GB hard disk; Slide-in; Specified for 24-hour operation; S.M.A.R.T. Support This 40 GB hard disk is specified for 24-hour operation, fea… |
| 5AC801.DVRS-00 | Drives — DVD-R/RW, DVD+R/RW drive; Slide-in The DVD-R/RW slide-in drive can be used in APC810 and PPC800 system units with a slide-in drive slot. |
| 5AC801.DVDS-00 | Drives — DVD-ROM drive; Slide-in The DVD-ROM slide-in drive can be used in APC810 and PPC800 system units with a slide-in drive slot. |
| 5AC801.ADAS-00 | Drives — Slide-in compact slot; Slide-in SATA hard disk adapter for operating a slide-in compact hard disk in a slide-in slot. |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
5AC803.SX02-00: frequently asked questions
When can 5AC803.SX02-00 be shipped?
5AC803.SX02-00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5AC803.SX02-00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5AC803.SX02-00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5AC803.SX02-00, subject to availability and destination.
