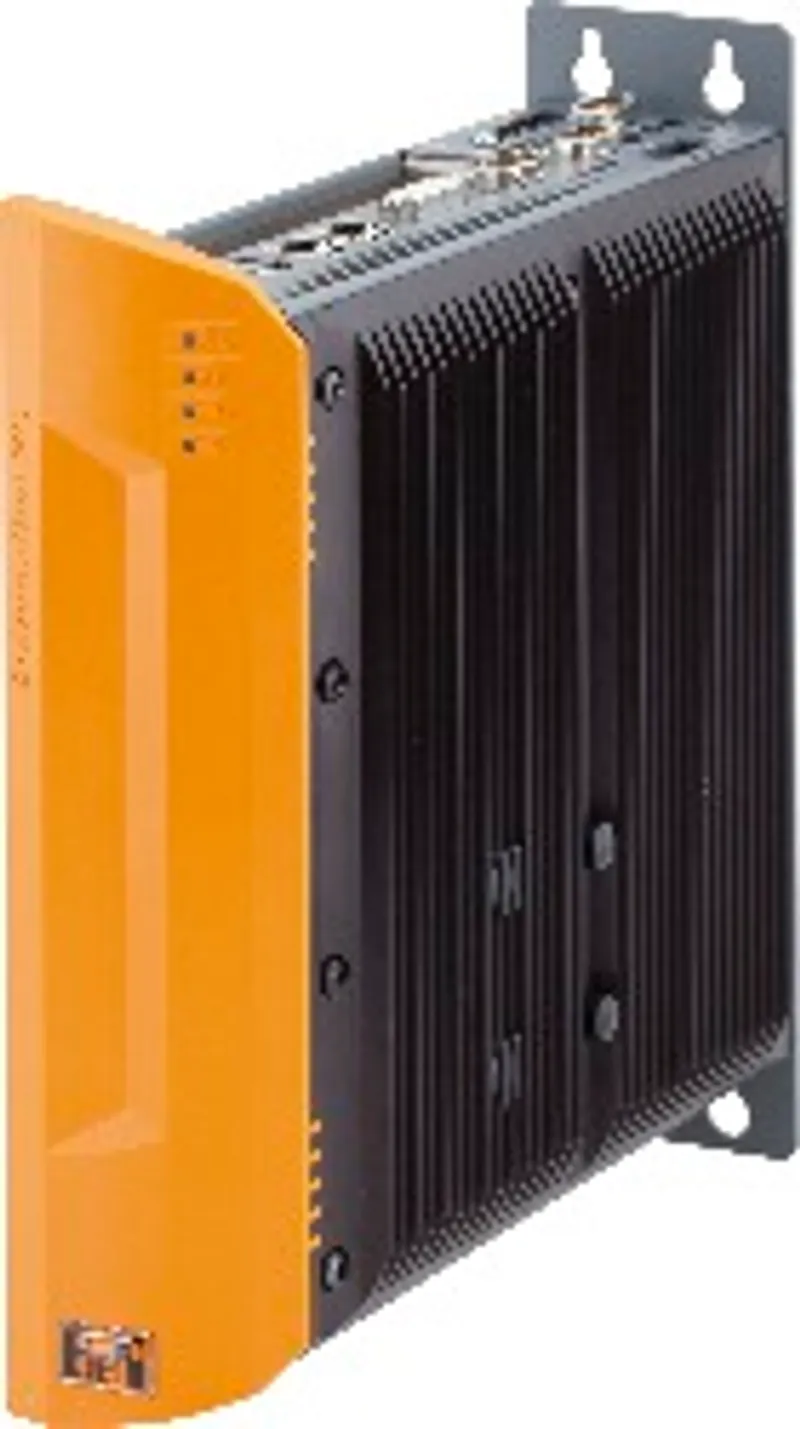

B&R 5PC810.SX01-00
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 5PC810.SX01-00 be shipped?
5PC810.SX01-00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5PC810.SX01-00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5PC810.SX01-00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5PC810.SX01-00, subject to availability and destination.
Slot for a bus unit with 1 PCI or 1 PCIe slot512 kB SRAM onboardInsert for 1 slide-in compact drive APC810 system unit 1 slot (PCI Express, PCI, depends on bus), 1 slide-in compact slot, Smart Display Link/DVI/Monitor, 2x RS232, 5x USB 2.0, 2x ETH 10/100/1000, 24 VDC (order screw clamp terminal block 0TB103.9 or cage clamp terminal block 0TB103.91 separately)
Specifications
Specifications
| Dongle port | Yes |
| LEDs | Power, HDD, Link 1, Link 2 |
| B&R ID code | 0xA3ED |
| Cooling | Passive via heat sink and optionally supported with an active fan kit |
| Type | AC97 sound |
| Service life | 2½ years |
| Removable | Yes, accessible behind the orange front door |
| Variant | Female DVI-I connector |
| Power button | Yes |
| Reset button | Yes |
| Buzzer | Yes |
| CE | Yes |
| UKCA | Yes |
| UL | cULus E115267 Industrial control equipment |
| Bootloader | BIOS |
| Battery-backed | Yes |
| Controller | Depends on the CPU board being used |
| Buffer time | 10 ms |
| Size | 512 kB |
| Remanent variables in power failure mode | 192 kB (for e.g. Automation Runtime, see Automation Help) |
| UART | 16550-compatible, 16-byte FIFO buffer |
| Max. baud rate | 1 Gbit/s |
| Quantity | 1 PCI slot or 1 PCIe slot |
| Transfer rate | 10/100/1000 Mbit/s |
| Current-carrying capacity | Max. 500 mA or 1 A per connection |
| Note | Optional |
| Inputs | Microphone, Line In |
| Outputs | Line Out |
| Slide-in drives | No |
| Slide-in compact drives | 1 |
| Automation Panel Link slot | No |
| Add-on UPS slot | Yes |
| Slot for fan kit | Yes |
| Nominal voltage | 24 VDC ±25%, SELV |
| Nominal current | 6 A |
| Inrush current | Typ. 7 A, max. 50 A for < 300 µs |
| Overvoltage category per EN 61131-2 | II |
| Galvanic isolation | Yes |
| Degree of protection per EN 60529 | IP20 |
| Operation | Max. 3000 m (component-dependent) |
| Storage | 30 g, 15 ms |
| Transport | 30 g, 15 ms |
| Operation (continuous) | 2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g |
| Operation (occasional) | 2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g |
| Material | Galvanized plate, plastic |
| Front cover | Dyed orange plastic (similar to Pantone 144CV) |
| Coating | Light gray (similar to Pantone 427CV), dark gray (similar to Pantone 432CV) |
| Width | 81.3 mm with heat sink 5AC801.HS00-00 and 5AC801.HS00-02 96.5 mm with heat sink 5AC801.HS00-01 |
| Height | 270 mm |
| Depth | 252.7 mm |
| Weight | Approx. 2200 g (component-dependent) |
