B&R 5APC4100.SX02-000

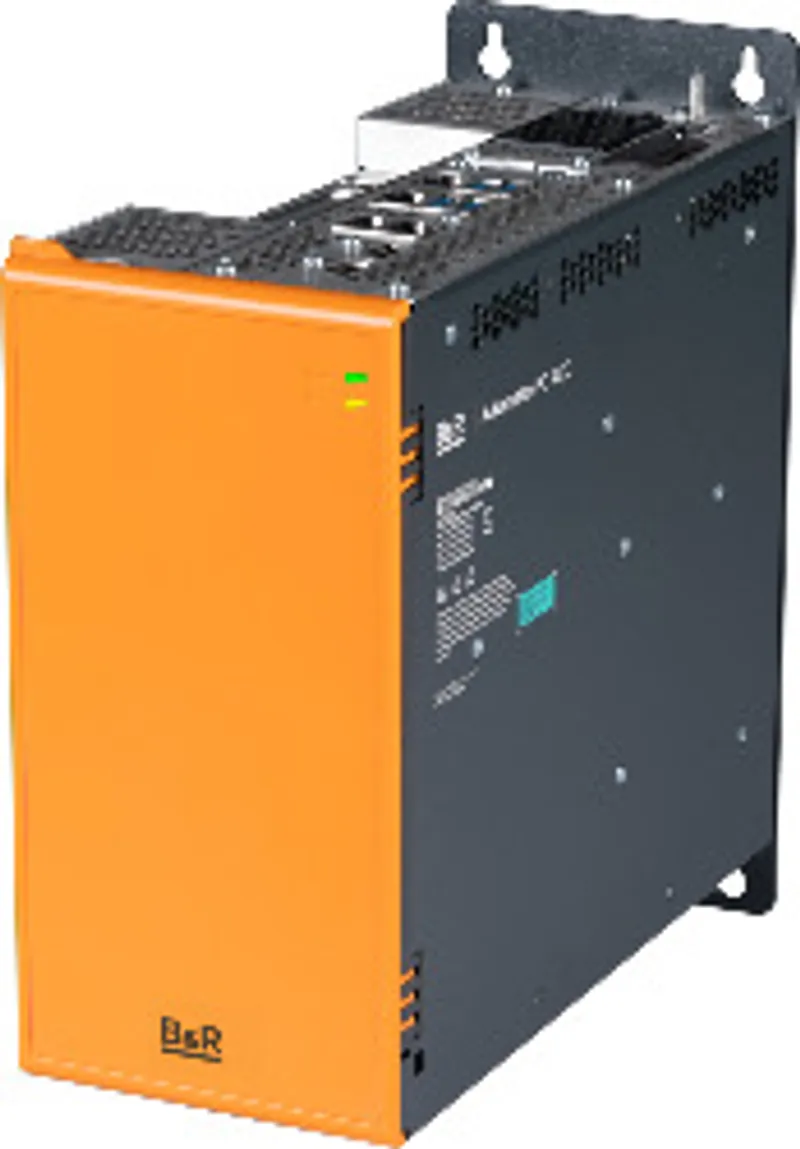

2-slot APC4100 system unit
- MPN
- 5APC4100.SX02-000
- Category
- System units
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the B&R 5APC4100.SX02-000?
2-slot APC4100 system unit
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – DNV | Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck) (note: Yes, but applies only if all components installed in the complete system have this certification and are listed on the associated DNV certificate for the product family.) |
| Certifications – CCS | Yes |
| LEDs | Power, Run |
| B&R ID code | 0x2D1F |
| Cooling | Passive via heat sink and optionally supported with an active fan kit |
| Power button | Yes |
| Reset button | Yes |
Controller
| Bootloader | UEFI BIOS |
Slots
| PCI/PCIe slots – Quantity | Component-dependent (note: The PCI and PCIe slots depend on the bus unit used.) |
| Interface option | 3 |
| Add-on UPS slot | Yes (note: The UPS module can only be operated in the IF option 1 slot.) |
| Slot for fan kit | Yes |
Electrical properties
| Nominal voltage | 24 VDC, SELVPower supply" in the user's manual."> (note: EN 60950 requirements must be observed; see section) |
| Nominal current | Max. 8 APower management"). The inrush current must also be taken into account when selecting the power supply unit."> (note: Maximum possible current consumption at 24 V with 180 W. This may vary depending on the configuration (see section) |
| Operating voltage | 24 VDC ±25% |
| Inrush current | Max. 60 A for < 300 μs (note: U in = 24 VDC) |
| Overvoltage category per EN 61131-2 | II |
| Galvanic isolation | Yes |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
| Degree of protection per EN 60529 | IP20 (note: Only when all interface covers and the front cover are installed.) |
Ambient conditions
| Temperature – Operation | Component-dependent (note: For detailed information, see the temperature tables in the user's manual.) |
| Temperature – Storage | -20 to 60°C |
| Temperature – Transport | -20 to 60°C |
| Relative humidity – Operation | Component-dependent |
| Relative humidity – Storage | Component-dependent |
| Relative humidity – Transport | Component-dependent |
| Vibration – Operation (continuous) | 2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g (note: Maximum values unless specified otherwise by another individual component.) |
| Vibration – Operation (occasional) | 2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g (note: Maximum values unless specified otherwise by another individual component.) |
| Vibration – Storage | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g (note: Maximum values unless specified otherwise by another individual component.) |
| Vibration – Transport | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g (note: Maximum values unless specified otherwise by another individual component.) |
| Shock – Operation | 15 g, 11 ms (note: Maximum values unless specified otherwise by another individual component.) |
| Shock – Storage | 30 g, 6 ms (note: Maximum values unless specified otherwise by another individual component.) |
| Shock – Transport | 30 g, 6 ms (note: Maximum values unless specified otherwise by another individual component.) |
| Elevation – Operation | -300 to 3000 m above sea level (note: The maximum ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.) |
Mechanical properties
| Housing – Material | EN AW-5754 (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Housing – Coating | Anthracite gray (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Dimensions – Width | 111 mm |
| Dimensions – Height | 222 mm |
| Dimensions – Depth | 258 mm |
| Weight | Approx. 850 g |
No matching specifications
Accessories
Required accessories (order separately)
| 0TB103.91 | Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply. |
| 0TB103.9 | Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply. |
| 5APC4100.MB02-000 | Assembly options — APC4100 mounting bracket - Book style 2-slot |
| 5ACCBT02.0000-000 | Battery compartment — Battery compartment - Including battery - For APC4100 |
| 5APC4100.BX02-001 | Bus units — APC4100 with 2-slot bus - 1 PCIe x16 - 1 PCIe x4 |
| 5APC4100.BX02-000 | Bus units — APC4100 with 2-slot bus - 1 PCI - 1 PCIe x16 |
| 5APC4100.TGL4-000 | CPU boards — CPU board Intel Xeon 11865MRE - Octa core - RM590E chipset - 2.6 GHz active - For APC4100 |
| 5APC4100.TGL3-000 | CPU boards — CPU board Intel Xeon 11155MRE - Quad core - RM590E chipset - 2.4 GHz active - For APC4100 |
| 5APC4100.TGL2-000 | CPU boards — CPU board Intel Core i5 11500HE - Hexa core - RM590E chipset - 2.6 GHz active - For APC4100 |
| 5APC4100.TGL1-000 | CPU boards — CPU board Intel Core i3 11100HE - Quad core - RM590E chipset - 2.4 GHz active - For APC4100 |
| 5APC4100.TGL0-000 | CPU boards — CPU board Intel Celeron 6600HLE - Dual core - HM570E chipset - 2.1 GHz active - For APC4100 |
| 5APC4100.HS01-000 | Cooling systems — APC4100 heat sink, passive |
| 5APC4100.HS00-000 | Cooling systems — APC4100 heat sink, active |
| 5ACCFF04.0200-001 | Front covers — Front cover for 2-slot APC4100 - Dark gray |
| 5ACCFF04.0200-000 | Front covers — Front cover 2-slot APC4100 - Orange |
| 5MMDDR.8192-06 | Main memory — SO-DIMM DDR4 ECC, 8192 MB |
| 5MMDDR.8192-05 | Main memory — SO-DIMM DDR4, 8192 MB |
| 5MMDDR.4096-05 | Main memory — SO-DIMM DDR4, 4096 MB |
| 5MMDDR.032G-05 | Main memory — SO-DIMM DDR4, 32768 MB |
| 5MMDDR.016G-05 | Main memory — SO-DIMM DDR4, 16384 MB |
Optional accessories (31)
| 5APC4100.MB30-000 | Assembly options — APC4100 mounting bracket - Box style 0/1/2/3-slot |
| 5CFXPR.960G-20 | CFexpress cards — CFexpress 960 GB TLC |
| 5CFXPR.480G-20 | CFexpress cards — CFexpress 480 GB TLC |
| 5CFXPR.240G-20 | CFexpress cards — CFexpress 240 GB TLC |
| 5CFXPR.120G-20 | CFexpress cards — CFexpress 120 GB TLC |
| 5CFXPR.060G-20 | CFexpress cards — CFexpress 60 GB TLC |
| 5APC4100.FA02-001 | Fan kits — APC4100 fan kit - For 5APC4100.SX02-00 - Excludes air filter |
| 5APC4100.FA02-000 | Fan kits — APC4100 fan kit - For 5APC4100.SX02-00 - Includes air filter |
| 5ACCLI05.SDL4-000 | Graphics options — Graphics option - 1x SDL4 transmitter - For APC4100 |
| 5ACCLI02.SDL0-000 | Graphics options — Graphics option - 1x SDL/DVI transmitter - For APC3100/PPC3100 |
| 5ACCLI02.DPO0-000 | Graphics options — Graphics option - 1x DisplayPort transmitter (version 1.2) - For APC3x00/PPC3x00 - For APC4100 |
| 5ACCIF04.FPLK-000 | Interface options — 1x POWERLINK interface (managing or controlled node) for real-time communication; Poll-response chaining; Compatible with APC3x00/PPC3x00 a… |
| 5AC901.ISRM-00 | Interface options — 2 MB SRAM; Compatible with APC910/PPC900, APC3x00/PPC3x00 and APC4100 Interface option 5AC901.ISRM-00 is equipped with 2 MB SRAM. |
| 5AC901.ISIO-00 | Interface options — Connections for the reset button and power buttons on the PC; Connection for LED "Power" on the PC; 1 normally closed contact, 1 normally o… |
| 5AC901.IRDY-00 | Interface options — 1 normally closed contact, 1 normally open contact; Compatible with APC910/PPC900, APC3x00/PPC3x00 and APC4100 Ready relay 5AC901.IRDY-00 i… |
| 5AC901.IPLK-00 | Interface options — 1x POWERLINK interface managing or controlled node; 2 MB SRAM; Compatible with APC910/PPC900 and APC3100/PPC3100 Interface card - 1x POWERL… |
| 5AC901.IHDA-00 | Interface options — 1x MIC; 1x Line IN; 1x Line OUT; Compatible with APC910/PPC900, APC3x00/PPC3x00 and APC4100 Interface option 5AC901.IHDA-00 is equipped wit… |
| 5AC901.IETH-00 | Interface options — Interface card - 1x ETH 10/100/1000 - For APC910/PPC900 - For APC3x00/PPC3x00 - For APC4100 |
| 5AC901.ICAN-01 | Interface options — Interface card - 1x CAN interface (SJA1000) - For APC910/PPC900 - For APC3x00/PPC3x00 - For APC4100 |
| 5AC901.I485-00 | Interface options — 1x RS232/RS422/RS485 interface; Compatible with APC910/PPC900 and APC3100/PPC3100 Interface option 5AC901.I485-00 is equipped with an RS232… |
| 5AC901.I232-00 | Interface options — Interface card - 1x RS232 interface - For APC910/PPC900 - For APC3x00/PPC3x00 - For APC4100 |
| 5ACCISSD.512G-000 | Mass storage devices — 512 GB SSD MLC - SATA - For APC4100 |
| 5ACCISSD.256G-000 | Mass storage devices — 256 GB SSD MLC - SATA - For APC4100 |
| 5ACCISSD.128G-000 | Mass storage devices — 128 GB SSD MLC - SATA - For APC4100 |
| 5ACCISSD.001T-000 | Mass storage devices — 1 TB SSD MLC - SATA - For APC4100 |
| 5ACCIHDD.1024-000 | Mass storage devices — 1 TB hard disk - SATA - For APC4100 |
| 5ACCMSM2.1024-000 | Mass storage options — Compatible with APC3100/PPC3100 (using adapter card 5ACCMS01.MDT2-000); Solid-state drives; MLC technology; SATA support; 1 TB 1 TB M.2 SSD… |
| 5ACCMSM2.0512-000 | Mass storage options — Compatible with APC3100/PPC3100 (using adapter card 5ACCMS01.MDT2-000); Solid-state drives; MLC technology; SATA support; 512 GB 512 GB M.2… |
| 5ACCMS01.MDT2-000 | Mass storage options — Compatible in the APC3x00/PPC3x00 and APC4100 (only with 5ACCMBMS.0000-000 ); Easy installation in slot IF option 3.; 5ACCMSM2.xxxx-000 mem… |
| 5AC901.IUPS-01 | Uninterruptible power supplies — UPS IF option 5AC901.IUPS-01 used together with battery unit 5AC901.BUPS-01 allows the B&R industrial PC to be switched off properly withou… |
| 5AC901.IUPS-00 | Uninterruptible power supplies — UPS IF option 5AC901.IUPS-00 used together with battery unit 5AC901.BUPS-00 allows the B&R industrial PC to be switched off properly withou… |
Downloads & documentation
