B&R 5APC4100.TGL0-000

Name: B&R 5APC4100.TGL0-000
Brand: B&R
SKU: 5APC4100.TGL0-000

MPN: 5APC4100.TGL0-000 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	CPU boards
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.49 kg

Shipping & availability

When can 5APC4100.TGL0-000 be shipped?

5APC4100.TGL0-000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5APC4100.TGL0-000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5APC4100.TGL0-000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5APC4100.TGL0-000, subject to availability and destination.

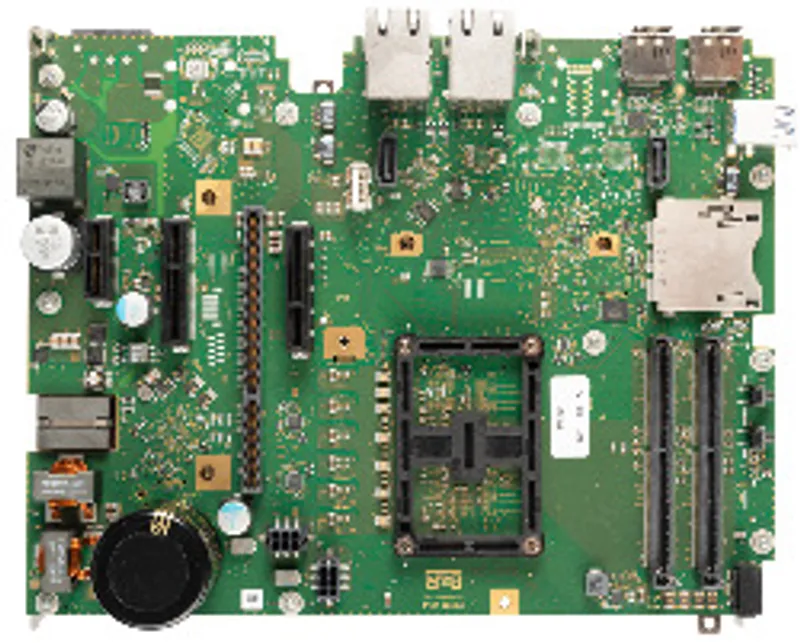

CPU board Intel Celeron 6600HLE - Dual core - HM570E chipset - 2.1 GHz active - For APC4100

Specifications

CE	Yes
UKCA	Yes
CRA (Cyber Resilience Act)	Evaluation ongoing
UL	cULus E115267 Industrial control equipment
Bootloader	UEFI BIOS
Type	4x USB 3.2 (top) 2x USB 3.2 (front) 1x USB 2.0 (internal)
Clock frequency	2100 MHz
Number of cores	2
Architecture	10 nmSF
Thermal design power (TDP)	25 W
Intel Smart Cache	8 MB
Intel 64 architecture	Yes
Intel Turbo Boost Technology	No
Intel Hyper-Threading Technology	No
Intel vPro Technology	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Enhanced Intel SpeedStep Technology	Yes
Chipset	Intel HM570E
Trusted Platform Module	Yes
Accuracy	At 25°C: Typ. 24 ppm (2 second) per day
Battery-backed	Yes
Number of memory channels	2
Memory size	Max. 64 GB
Max. transfer rate	3200 MT/s
Controller	Intel UHD Gfx 16
Max. dynamic graphics frequency	1100 MHz
Color depth	Max. 32-bit
DirectX support	12.1
OpenGL support	4.6
HDMI	Resolution up to 4096 x 2304
DisplayPort	Resolution up to 7680 x 4320
Mass memory management	3x SATA
Power management	ACPI 5.0 with battery support
Quantity	2
Variant	RJ45, shielded
Connection	Low speed (1.5 Mbit/s), full speed (12 Mbit/s), high speed (480 Mbit/s) to SuperSpeed+ (5/10 Gbit/s)
Current-carrying capacity	USB1-4: Max. 1 A per connection USB5-6: Max. 1 A total USB7: Max. 0.5 A
Transfer rate	10/100/1000/2500 Mbit/s
Max. baud rate	2x 2.5 Gbit/s
Version	1.2
Automation Studio	V6.0 or later
Weight	Approx. 490 g
