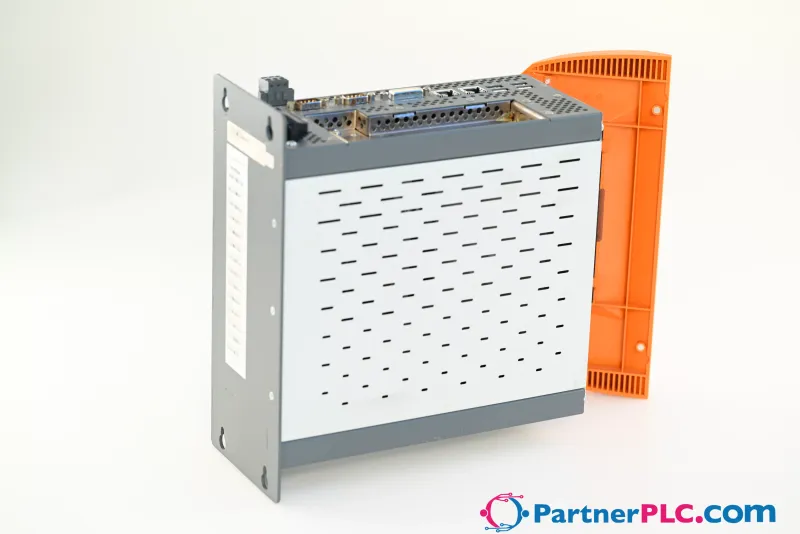

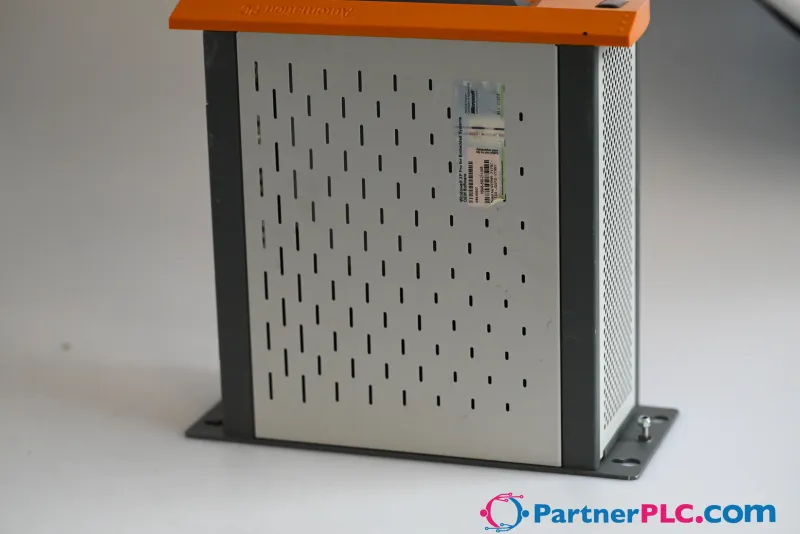

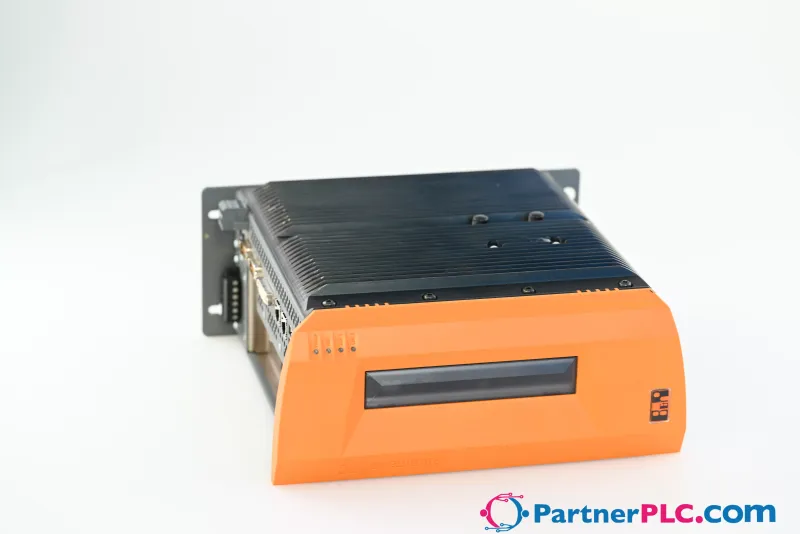

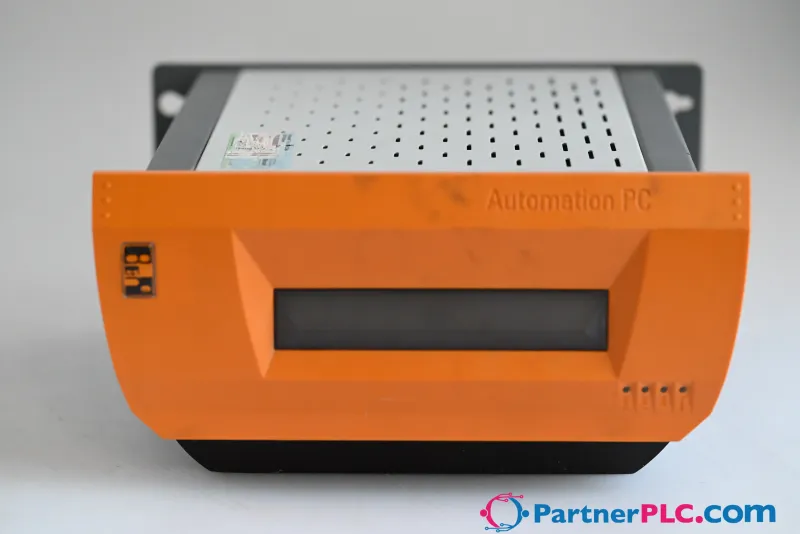

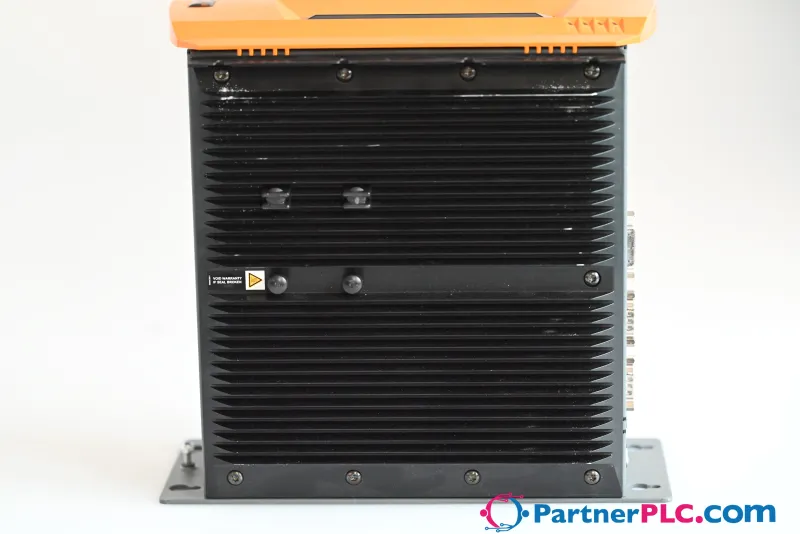

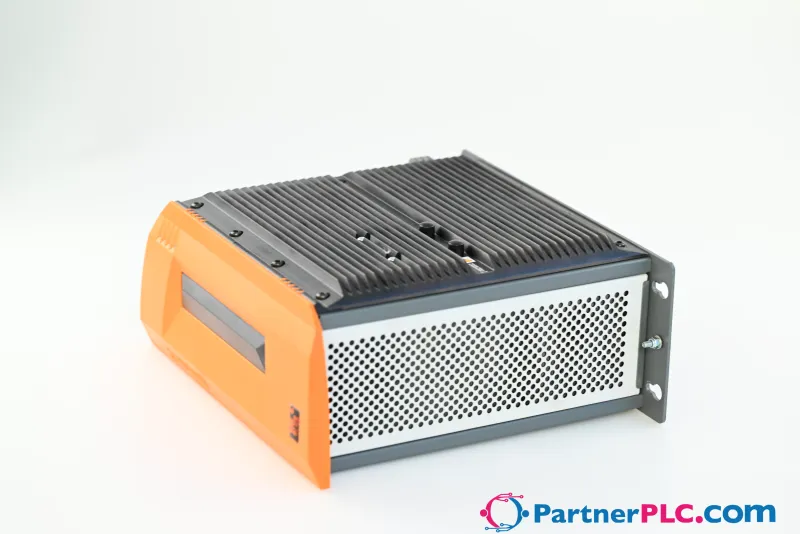

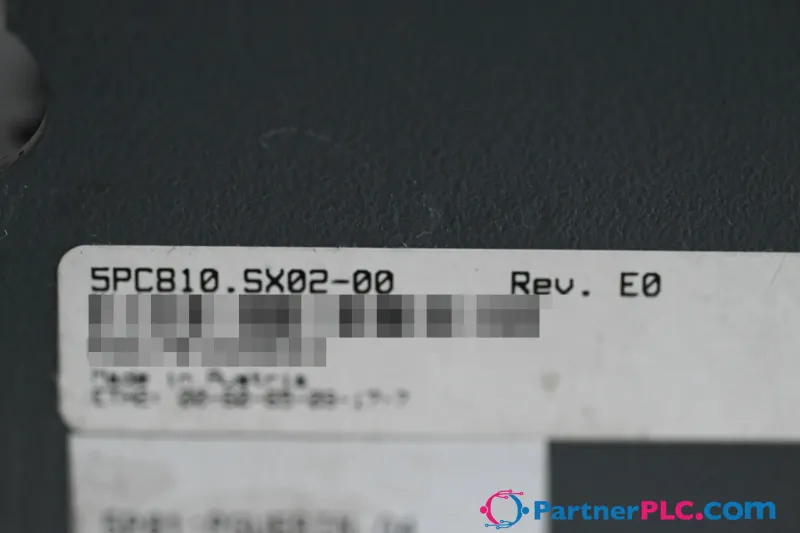

B&R 5PC810.SX02-00
Slot for a bus unit with 2 PCI slots or 1 PCI and 1 PCIe slots 512 kB SRAM onboard Insert for 1 slide-in...
- MPN
- 5PC810.SX02-00
- Category
- Industrial PCs
€783.34excl. VAT & shipping
In stock — 2 available·Ships within 1 business day
Need a larger quantity or a formal quote?
Request a Quote
- 3-month warranty
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

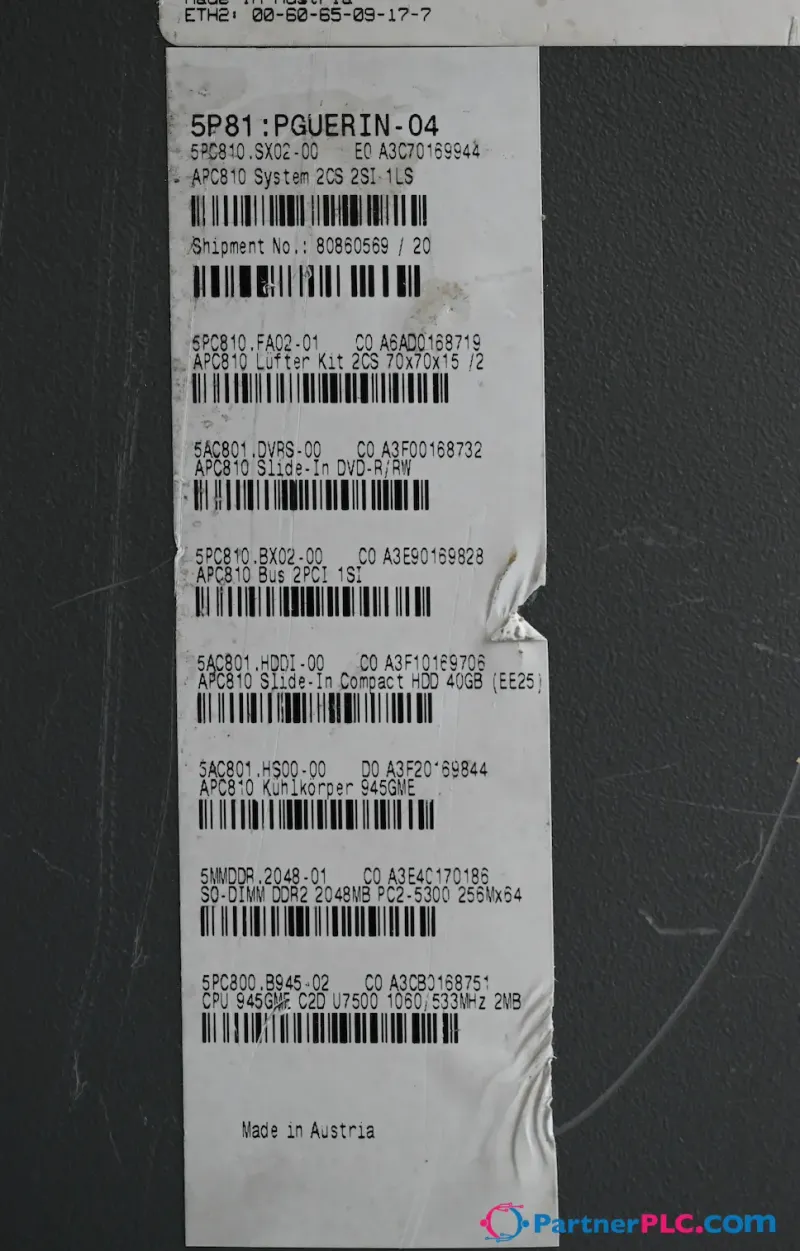

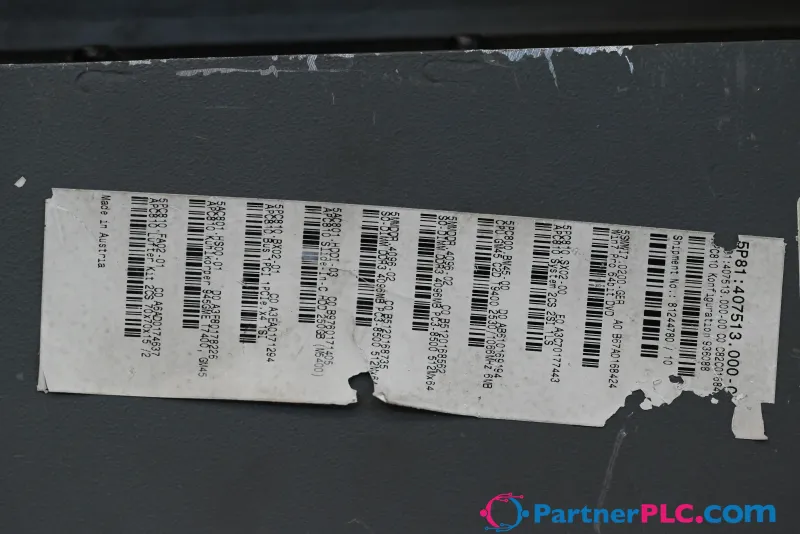

What is the B&R 5PC810.SX02-00?
Slot for a bus unit with 2 PCI slots or 1 PCI and 1 PCIe slots 512 kB SRAM onboard Insert for 1 slide-in compact drive and 1 slide-in drive Automation Panel Link slot for connecting Automation Panels via SDL APC810 system unit 2 slots (PCI Ex- press, PCI, depends on bus), 1 slot for Automation Panel Link transmitter, 1 slide-in compact and 1 slide-in slot, Smart Display Link/ DVI/Monitor, 2x RS232, 5x USB 2.0, 2x ETH 10/100/1000, 24 VDC (order screw clamp terminal block 0TB103.9 or cage clamp terminal block 0TB103.91)
Specifications
General information
| Battery – Type | Renata 950 mAh |
| Battery – Service life | 2½ years (note: At 50°C, 8.5 µA for the components being supplied and self-discharge of 40%.) |
| Battery – Removable | Yes, accessible behind the orange front door |
| Battery – Variant | Lithium ion |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Dongle port | Yes |
| LEDs | Power, HDD, Link 1, Link 2 |
| B&R ID code | 0xA3C7 |
| Cooling | Passive via heat sink and optionally supported with an active fan kit (note: A fan kit is mandatory for the APC810 GM45.) |
| Power button | Yes |
| Reset button | Yes |
| Buzzer | Yes |
Controller
| Real-time clock – Battery-backed | Yes |
| Power failure logic – Controller | MTCX (note: Maintenance Controller Extended) |
| Power failure logic – Buffer time | 10 ms |
| Graphics – Controller | Depends on the CPU board being used |
| SRAM – Size | 512 kB |
| SRAM – Battery-backed | Yes |
| SRAM – Remanent variables in power failure mode | 192 kB (for e.g. Automation Runtime, see Automation Help) |
| Bootloader | BIOS |

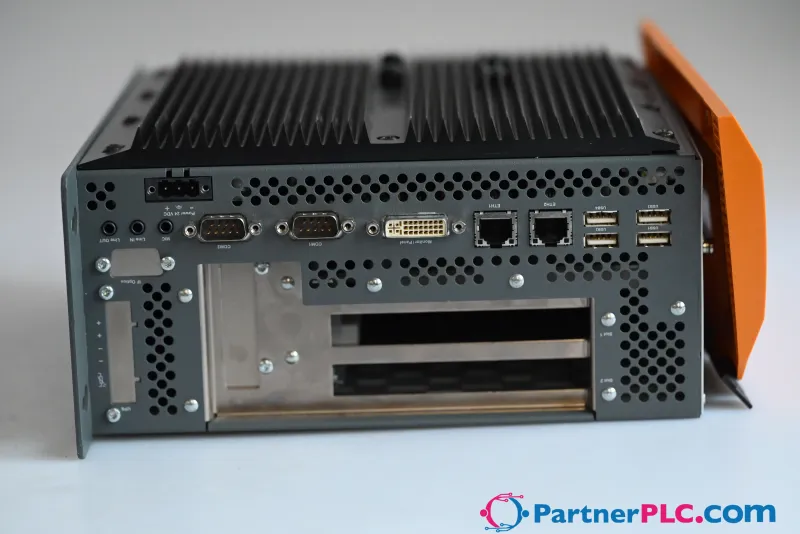

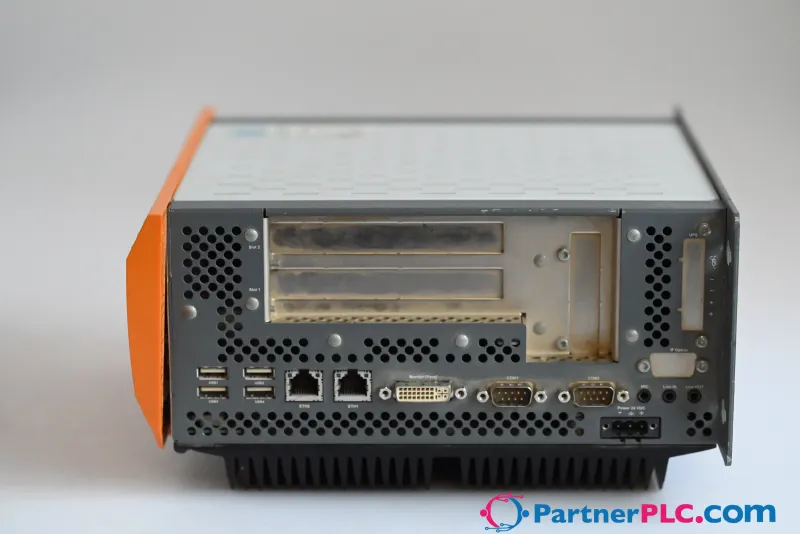

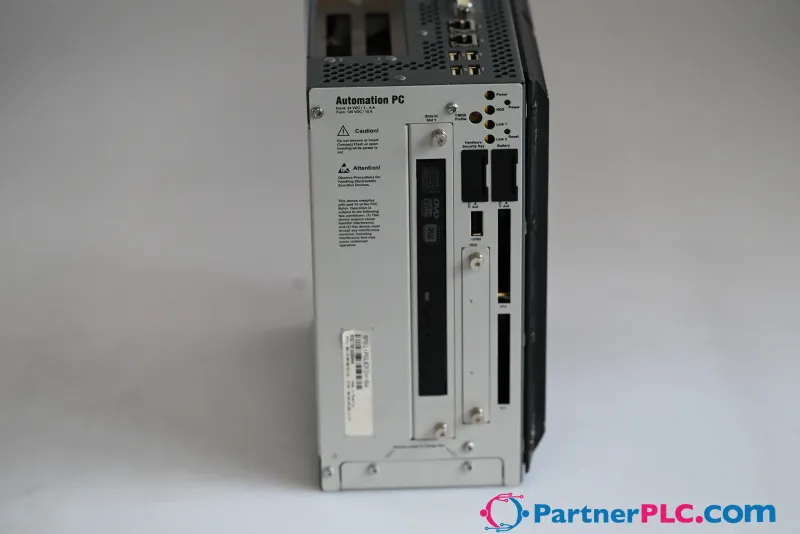

Interfaces
| COM1 – Type | RS232, modem supported, not galvanically isolated |
| COM1 – Variant | 9-pin male DSUB connector |
| COM1 – UART | 16550-compatible, 16-byte FIFO buffer |
| COM1 – Max. baud rate | 115 kbit/s |
| COM2 – Type | RS232, modem supported, not galvanically isolated |
| COM2 – Variant | 9-pin male DSUB connector |
| COM2 – UART | 16550-compatible, 16-byte FIFO buffer |
| COM2 – Max. baud rate | 115 kbit/s |
| CompactFlash slot 1 – Quantity | 1 |
| CompactFlash slot 1 – Type | Type I |
| CompactFlash slot 2 – Quantity | 1 |
| CompactFlash slot 2 – Type | Type I |
| USB – Quantity | 5 |
| USB – Type | USB 2.0 |
| USB – Variant | Type A |
| USB – Transfer rate | Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (480 Mbit/s) |
| USB – Current-carrying capacity | Max. 500 mA or 1 A per connection |
| Ethernet – Quantity | 2 |
| Ethernet – Variant | Shielded RJ45 port |
| Ethernet – Transfer rate | 10/100/1000 Mbit/s |
| Ethernet – Max. baud rate | 1 Gbit/s |
| Panel/Monitor interface – Variant | Female DVI-I connector |
| Panel/Monitor interface – Type | SDL/DVI/Monitor |
| CAN – Note | Optional |
| Audio – Type | AC97 sound (note: No longer supported by the GM45 chipset.) |
| Audio – Inputs | Microphone, Line In |
| Audio – Outputs | Line Out |
| Add-on interface slot – Quantity | 1 |
Slots
| PCI/PCIe slots – Quantity | 2 PCI slots or 1 PCI and 1PCIe slot (note: The PCI and PCIe slots depend on bus units 5PC810.BX02-00 and 5PC810.BX02-01 used.) |
| Slide-in drives | 1 |
| Slide-in compact drives | 1 |
| Automation Panel Link slot | Yes |
| Add-on UPS slot | Yes |
| Slot for fan kit | Yes |
Electrical properties
| Nominal voltage | 24 VDC ±25%, SELV+24 VDC power supply" in the user's manual."> (note: EN 60950 requirements must be observed; see section) |
| Nominal current | 6 A |
| Inrush current | Typ. 7 A, max. 50 A for < 300 µs |
| Overvoltage category per EN 61131-2 | II |
| Galvanic isolation | Yes |
Operating conditions
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Operation | Component-dependent |
| Temperature – Storage | -20 to 60°C |
| Temperature – Transport | -20 to 60°C |
| Relative humidity – Operation | Component-dependent |
| Relative humidity – Storage | Component-dependent |
| Relative humidity – Transport | Component-dependent |
| Vibration – Operation (continuous) | 2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g (note: Maximum values unless specified otherwise by another individual component.) |
| Vibration – Operation (occasional) | 2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g (note: Maximum values unless specified otherwise by another individual component.) |
| Vibration – Storage | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g (note: Maximum values unless specified otherwise by another individual component.) |
| Vibration – Transport | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g (note: Maximum values unless specified otherwise by another individual component.) |
| Shock – Operation | 15 g, 11 ms (note: Maximum values unless specified otherwise by another individual component.) |
| Shock – Storage | 30 g, 15 ms (note: Maximum values unless specified otherwise by another individual component.) |
| Shock – Transport | 30 g, 15 ms (note: Maximum values unless specified otherwise by another individual component.) |
| Elevation – Operation | Max. 3000 m (component-dependent) (note: The maximum ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.) |
Mechanical properties
| Housing – Material | Galvanized plate, plastic (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Housing – Front cover | Dyed orange plastic (similar to Pantone 144CV) (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Housing – Coating | Light gray (similar to Pantone 427CV), dark gray (similar to Pantone 432CV) (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Dimensions – Width | 120.8 mm with heat sink 5AC801.HS00-00 and 5AC801.HS00-02; 136 mm with heat sink 5AC801.HS00-01 |
| Dimensions – Height | 270 mm |
| Dimensions – Depth | 254.6 mm |
| Weight | Approx. 2800 g (component-dependent) |
Accessories
Required accessories (order separately)
| 0TB103.91 | Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply. |
| 0TB103.9 | Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply. |
| 5PC810.BX02-01 | Bus units — 1 PCI and 1 PCIe slot; PCI and PCIe half-size card can be inserted APC810 bus, 1 PCI, 1 PCI Express (x4) |
| 5PC810.BX02-00 | Bus units — 2 PCI slots; PCI half-size cards can be inserted APC810 bus, 2 PCI |
| 5PC800.BM45-01 | CPU boards — Intel® Core™ 2 Duo P8400 2.26 GHz; Intel® GM45 chipset; 2x DDR3 memory slot; Intel® GMA 4500MDH; AMI BIOS Intel Core2 Duo P8400 CPU board,… |
| 5PC800.BM45-00 | CPU boards — Intel® Core™ 2 Duo T9400 2.53 GHz; Intel® GM45 chipset; 2x DDR3 memory slot; Intel® GMA 4500MDH; AMI BIOS Intel Core2 Duo T9400 CPU board,… |
| 5PC800.B945-14 | CPU boards — Intel® Core™ 2 Duo T7400 2.16 GHz; Intel® 945GME chipset; 2x DDR2 memory socket; Intel® GMA 950; AMI BIOS Intel Core2 Duo T7400 CPU board,… |
| 5PC800.B945-13 | CPU boards — Intel® Celeron® M 423 1.06 GHz; Intel® 945GME chipset; 2x DDR2 memory socket; Intel® GMA 950; AMI BIOS Intel Celeron M 423 CPU board, 1.06… |
| 5PC800.B945-12 | CPU boards — Intel® Core™2 Duo U7500, 1.06 GHz; Intel® 945GME chipset; 2x DDR2 memory socket; Intel® GMA 950; AMI BIOS Intel Core2 Duo U7500 CPU board,… |
| 5PC800.B945-11 | CPU boards — Intel® Core™2 Duo L7400 1.5 GHz; Intel® 945GME chipset; 2x DDR2 memory socket; Intel® GMA 950; AMI BIOS Intel Core2 Duo L7400 CPU board, 1.… |
| 5PC800.B945-10 | CPU boards — Intel® Core™ Duo L2400 1.66 GHz; Intel® 945GME chipset; 2x DDR2 memory socket; Intel® GMA 950; AMI BIOS Intel Core Duo L2400 CPU board, 1.6… |
| 5PC800.B945-05 | CPU boards — Intel® Atom™ N270 1.66 GHz; Intel® 945GME chipset; 2x DDR2 memory socket; Intel® GMA 950; AMI BIOS Intel Atom N270 CPU board, 1.6 GHz, sing… |
| 5AC801.HS00-02 | Heat sinks — APC810 heat sink for CPU board with Atom processor N270. |
| 5AC801.HS00-01 | Heat sinks — APC810 heat sink for CPU boards with dual core processor T7400, T9400 and P8400. |
| 5AC801.HS00-00 | Heat sinks — APC810 heat sink for CPU boards with dual core processors L2400, L7400, U7500 and Celeron M 423. |
| 5MMDDR.2048-01 | Main memory — 2048 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 2048 MB PC2-5300 |
| 5MMDDR.1024-01 | Main memory — 1024 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 1024 MB PC2-5300 |
| 5MMDDR.0512-01 | Main memory — 512 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 512 MB PC2-5300 |
| 5MMDDR.4096-02 | Main memory for GM45 CPU boards — 4096 MB memory; DDR3 SDRAM according to PC3-8500; 64-bit data width; 1066 MHz SO-DIMM DDR3 RAM 4096 MB PC3-8500 |
| 5MMDDR.2048-02 | Main memory for GM45 CPU boards — 2048 MB memory; DDR3 SDRAM according to PC3-8500; 64-bit data width; 1066 MHz SO-DIMM DDR3 RAM 2048 MB PC3-8500 |
Optional accessories (18)
| 5ACPCI.ETH3-01 | Accessories — PCI Ethernet card; 3x Ethernet interfaces (10/100 Mbit/s) These universal (3.3 V and 5 V) half-size PCI Ethernet card have three 10/100 Mbi… |
| 5ACPCI.ETH1-01 | Accessories — PCI Ethernet card; 1x Ethernet interface (10/100 Mbit/s) These universal (3.3 V and 5 V) half-size PCI Ethernet card have a 10/100 Mbit/s n… |
| 5AC801.SDL0-00 | Automation Panel Link interfaces — A second graphics line can be created using an AP Link graphics adapter card. This makes it possible to transfer DVI and SDL signals. RGB s… |
| 5AC801.RDYR-00 | Automation Panel Link interfaces — Since the 5AC801.RDYR-00 ready relay switches the relay contacts as soon as the B&R Automation PC 810 has booted and is supplied internally… |
| 5ACPCI.RAIC-06 | Drives — SATA RAID controller; RAID level 0 (striped) and 1 (mirrored); 2x 500 GB SATA hard disk drives (suitable for 24-hour operation); Only requi… |
| 5AC801.SSDI-05 | Drives — 256 GB solid state drive; MLC flash; S.M.A.R.T. support; Slide-in compact; SATA 3.0 compatible This 256 GB slide-in compact SSD (solid-stat… |
| 5AC801.SSDI-04 | Drives — 128 GB solid state drive; MLC flash; S.M.A.R.T. Support; Slide-in compact; SATA 3.0 compatible This 128 GB slide-in compact SSD (solid-stat… |
| 5AC801.SSDI-03 | Drives — 60 GB solid state drive; MLC flash; S.M.A.R.T. Support; Slide-in compact; SATA 3.0 compatible This 60 GB slide-in compact SSD (solid-state… |
| 5AC801.HDDS-00 | Drives — 40 GB hard disk; Slide-in; Specified for 24-hour operation; S.M.A.R.T. Support This 40 GB hard disk is specified for 24-hour operation, fea… |
| 5AC801.HDDI-04 | Drives — 500 GB hard disk; Slide-in compact; Specified for 24-hour operation; S.M.A.R.T. support This 500 GB slide-in compact hard disk is specified… |
| 5AC801.HDDI-00 | Drives — 40 GB hard disk; Slide-in compact; Specified for 24-hour operation; S.M.A.R.T. Support This 40 GB slide-in compact hard disk is specified f… |
| 5AC801.DVRS-00 | Drives — DVD-R/RW, DVD+R/RW drive; Slide-in The DVD-R/RW slide-in drive can be used in APC810 and PPC800 system units with a slide-in drive slot. |
| 5AC801.DVDS-00 | Drives — DVD-ROM drive; Slide-in The DVD-ROM slide-in drive can be used in APC810 and PPC800 system units with a slide-in drive slot. |
| 5AC801.ADAS-00 | Drives — Slide-in compact slot; Slide-in SATA hard disk adapter for operating a slide-in compact hard disk in a slide-in slot. |
| 5PC810.FA02-01 | Fan kits — APC810 fan kit for system unit 5PC810.SX02-00 starting with revision D0. |
| 5AC600.CANI-00 | Serial adapters — The add-on CAN interface is equipped with an Intel 82527 CAN controller that conforms to the CAN 2.0 specification, Part A/B. The CAN contr… |
| 5AC600.485I-00 | Serial adapters — This serial interface is a combined RS232/RS422/RS485 interface. The operating mode (RS232/RS422/RS485) is selected automatically depending… |
| 5AC600.UPSI-00 | Uninterruptible power supplies — UPS module for APC620, APC810, PPC800, for system units 5PC600.SX01-00 (starting with Rev. H0), 5PC600.SX02-00 (starting with Rev. G0), 5PC… |
