B&R 5PC810.BX02-01

1 PCI and 1 PCIe slotPCI and PCIe half-size card can be…

MPN: 5PC810.BX02-01

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

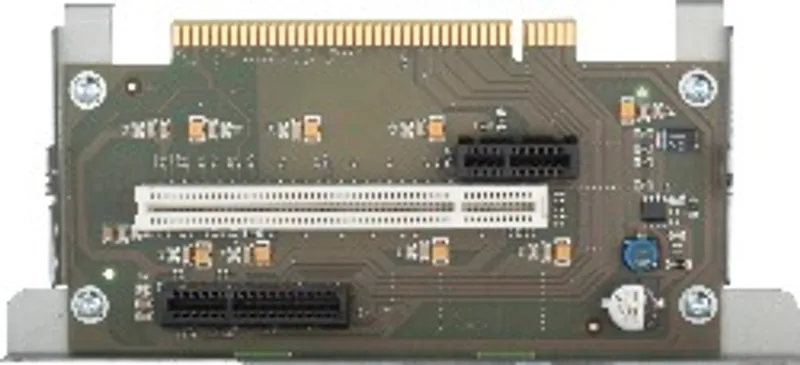

What is the B&R 5PC810.BX02-01?

1 PCI and 1 PCIe slot

PCI and PCIe half-size card can be inserted

APC810 bus, 1 PCI, 1 PCI Express (x4)

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes

Slots

PCI slots – Quantity	1
PCI slots – Type	32-bit
PCI slots – Variant	PCI half-size
PCI slots – Standard	2.2 (note: Due to mechanical limitations, a 64-bit PCI card cannot be connected in every system unit or card slot. A table in the user's manual provides an overview of the card slots to which 64-bit cards can be connected.)
PCI slots – Bus speed	33 MHz
PCI slots – PCI to PCI bridge	-
PCIe slots – Quantity	1
PCIe slots – Variant	PCIe half-size
PCIe slots – Standard	1.0 a
PCIe slots – Bus speed	x4 (10 GB/s)
